OCX/100

Description and datas

kV: 105Large Focal Spot: 0.5Target Angle: 5
Anode heat Capacity: 35000Nominal Input Power large: 2150Max Dissipation Rate: 400
Max Diameter: 46Max Length: 157Filament Current (Large): 4.8
Filament Voltage (Large): 6.0
kV: 105Large Focal Spot: 0.5
Target Angle: 5Anode heat Capacity: 35000
Nominal Input Power large: 2150Max Dissipation Rate: 400
Max Diameter: 46Max Length: 157
Filament Current (Large): 4.8Filament Voltage (Large): 6.0
kV: 105
Large Focal Spot: 0.5
Target Angle: 5
Anode heat Capacity: 35000
Nominal Input Power large: 2150
Max Dissipation Rate: 400
Max Diameter: 46
Max Length: 157
Filament Current (Large): 4.8
Filament Voltage (Large): 6.0
OCX 100 EnglishOCX 100 FrenchOCX 100 Italiano

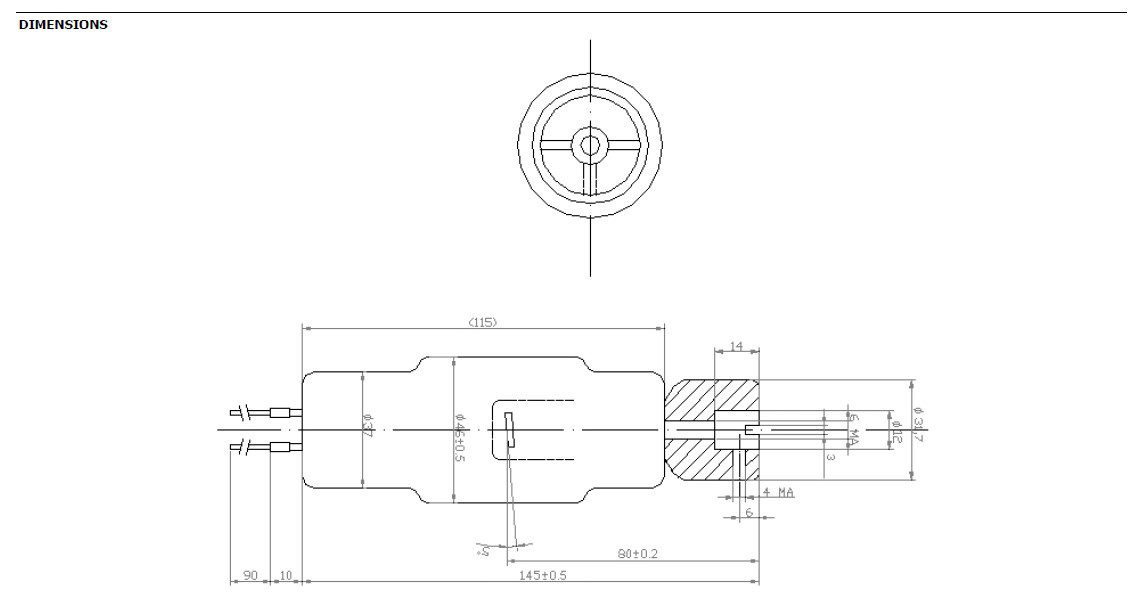

Dimensions and connections

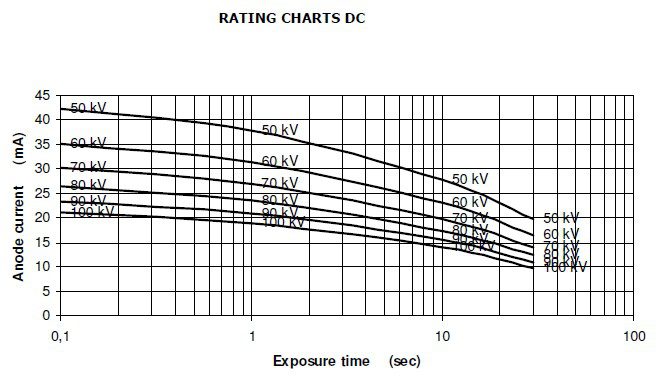

Maximum DC load diagrams

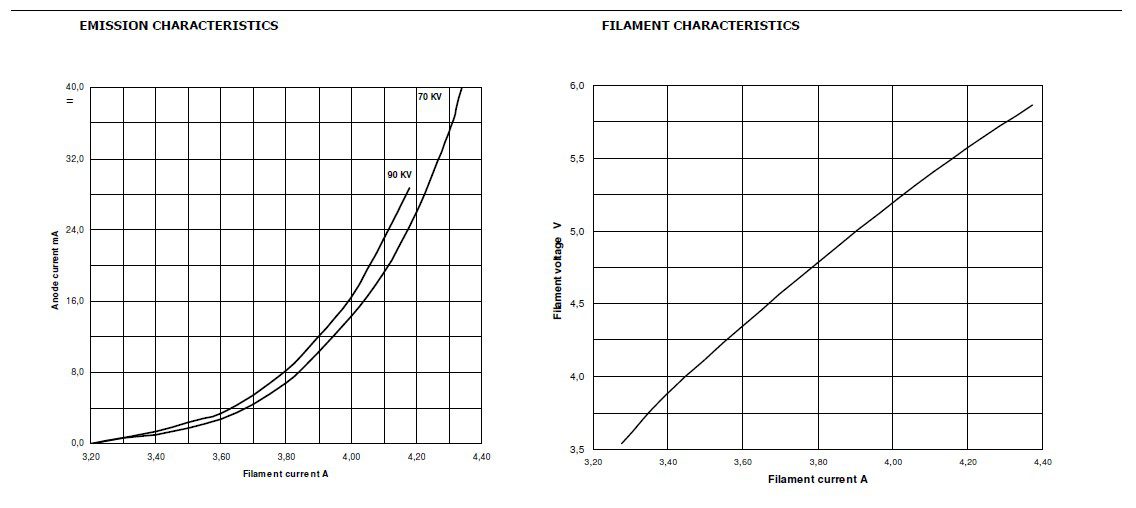

Filament and emission characteristics
