OCX/105

Description and datas

kV: 105Large Focal Spot: 1.4Target Angle: 19
Anode heat Capacity: 40000Nominal Input Power large: 3000Max Dissipation Rate: 400
Max Diameter: 50Max Length: 157Filament Current (Large): 3.4
Filament Voltage (Large): 5.0
kV: 105Large Focal Spot: 1.4
Target Angle: 19Anode heat Capacity: 40000
Nominal Input Power large: 3000Max Dissipation Rate: 400
Max Diameter: 50Max Length: 157
Filament Current (Large): 3.4Filament Voltage (Large): 5.0
kV: 105
Large Focal Spot: 1.4
Target Angle: 19
Anode heat Capacity: 40000
Nominal Input Power large: 3000
Max Dissipation Rate: 400
Max Diameter: 50
Max Length: 157
Filament Current (Large): 3.4
Filament Voltage (Large): 5.0
OCX 105 EnglishOCX 105 FrenchOCX 105 Italiano

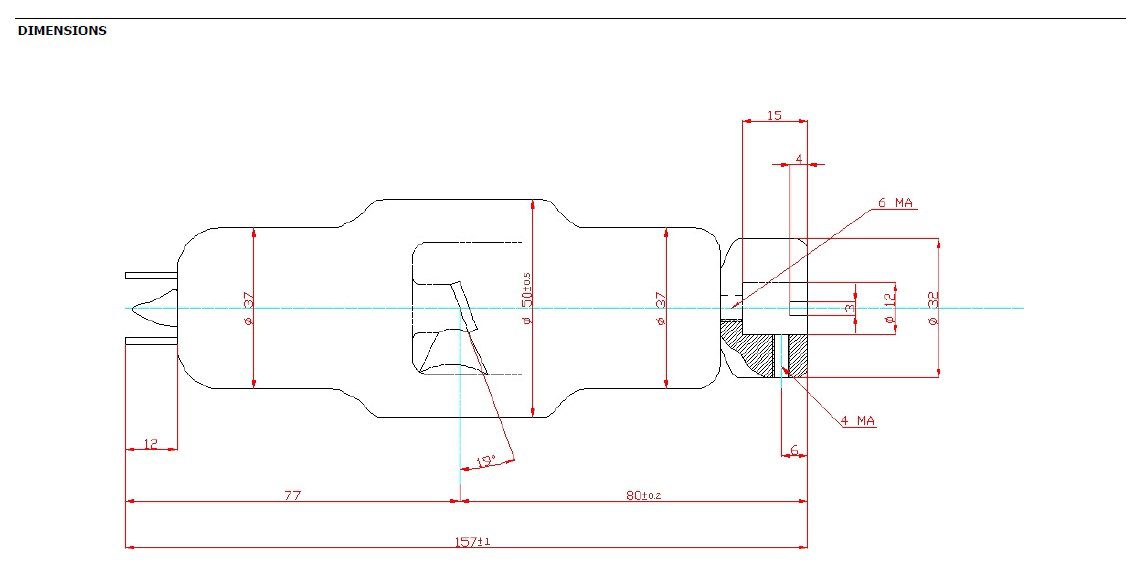

Dimensions and connections

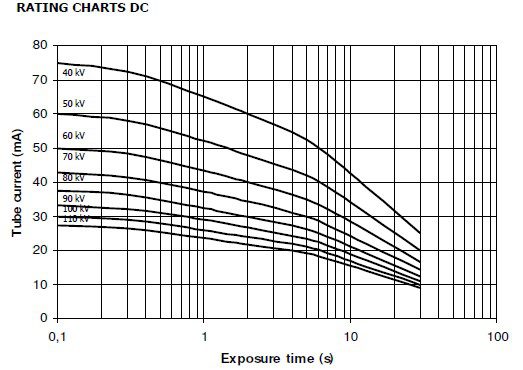

Maximum DC load diagrams

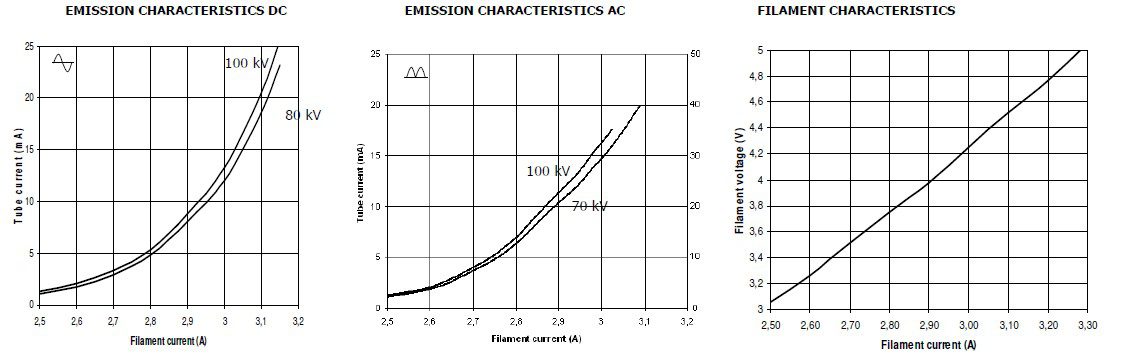

Filament and emission characteristics
