OCX/105-4

Description and datas

kV: 105Large Focal Spot: 2.6Target Angle: 19
Anode heat Capacity: 35000Nominal Input Power small: 5300Max Dissipation Rate: 250
Max Diameter: 50Max Length: 152Filament Current (Large): 4.5
Filament Voltage (Large): 6.5
kV: 105Large Focal Spot: 2.6
Target Angle: 19Anode heat Capacity: 35000
Nominal Input Power small: 5300Max Dissipation Rate: 250
Max Diameter: 50Max Length: 152
Filament Current (Large): 4.5Filament Voltage (Large): 6.5
kV: 105
Large Focal Spot: 2.6
Target Angle: 19
Anode heat Capacity: 35000
Nominal Input Power small: 5300
Max Dissipation Rate: 250
Max Diameter: 50
Max Length: 152
Filament Current (Large): 4.5
Filament Voltage (Large): 6.5
OCX 105-4 EnglishOCX 105-4 FrenchOCX 105-4 Italiano

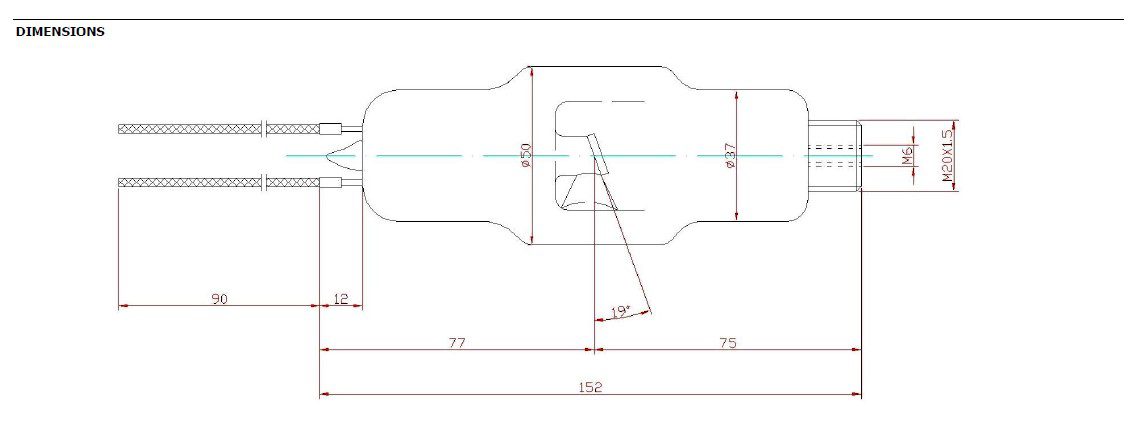

Dimensions and connections

Maximum DC load diagrams

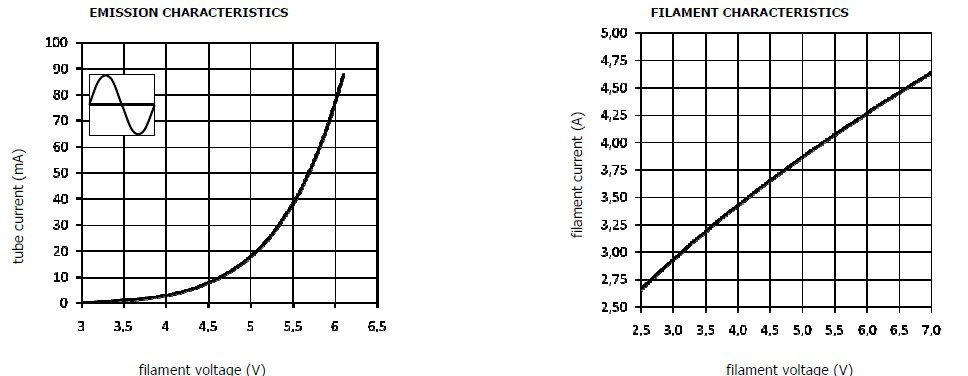

Filament and emission characteristics
