OCX/65-G

Category: Intraoral

Description and datas

kV: 70Large Focal Spot: 0.8Target Angle: 19
Anode heat Capacity: 7500Nominal Input Power large: 840Max Dissipation Rate: 110
Max Diameter: 30Max Length: 85Max continuous mA: 8
Filament Current (Large): 2.8Filament Voltage (Large): 4
kV: 70Large Focal Spot: 0.8
Target Angle: 19Anode heat Capacity: 7500
Nominal Input Power large: 840Max Dissipation Rate: 110
Max Diameter: 30Max Length: 85
Max continuous mA: 8Filament Current (Large): 2.8
Filament Voltage (Large): 4
kV: 70
Large Focal Spot: 0.8
Target Angle: 19
Anode heat Capacity: 7500
Nominal Input Power large: 840
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 85
Max continuous mA: 8
Filament Current (Large): 2.8
Filament Voltage (Large): 4
OCX 65-G English

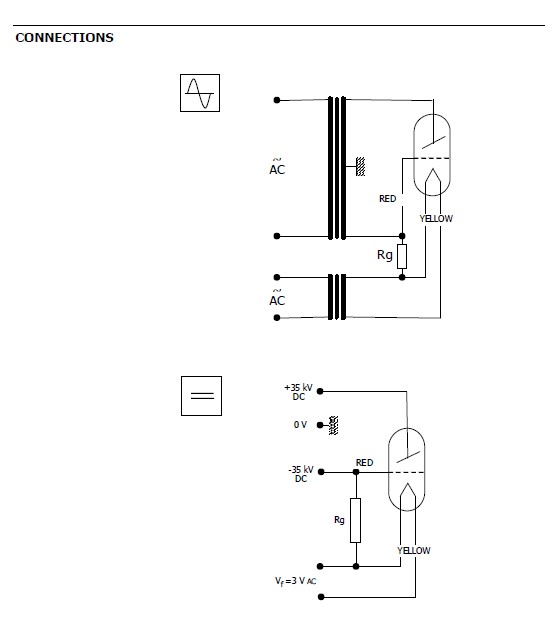

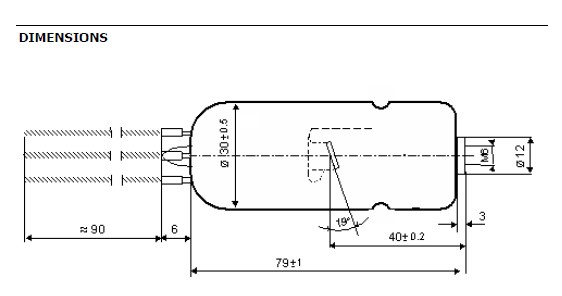

Dimensions and connections

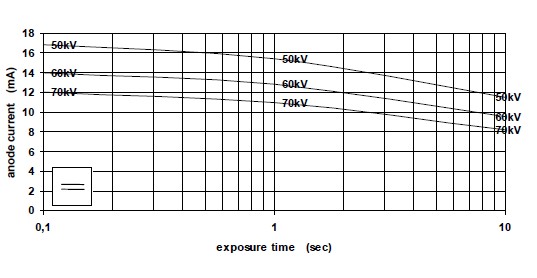

Maximum DC load diagrams

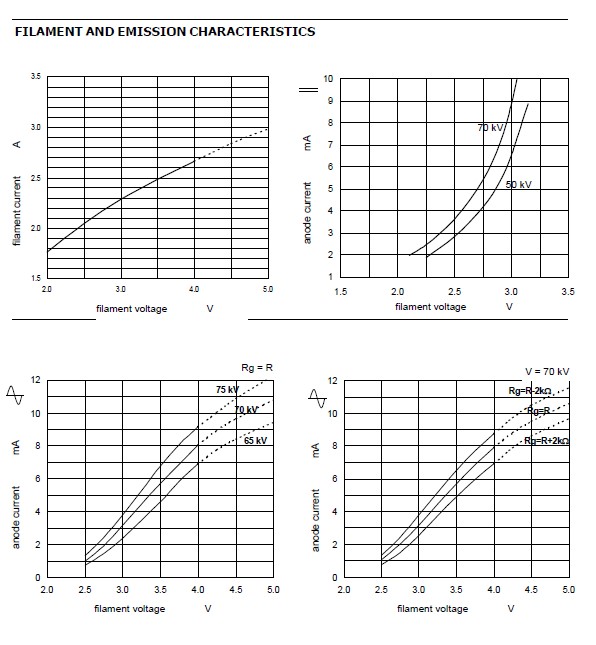

Filament and emission characteristics
