OCX/65-GC

Description and datas

kV: 70Large Focal Spot: 0.7Target Angle: 19
Anode heat Capacity: 7500Nominal Input Power large: 600Max Dissipation Rate: 110
Max Diameter: 30Max Length: 92Filament Current (Large): 2.8
Filament Voltage (Large): 4.0
kV: 70Large Focal Spot: 0.7
Target Angle: 19Anode heat Capacity: 7500
Nominal Input Power large: 600Max Dissipation Rate: 110
Max Diameter: 30Max Length: 92
Filament Current (Large): 2.8Filament Voltage (Large): 4.0
kV: 70
Large Focal Spot: 0.7
Target Angle: 19
Anode heat Capacity: 7500
Nominal Input Power large: 600
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 92
Filament Current (Large): 2.8
Filament Voltage (Large): 4.0
OCX 65-GC English

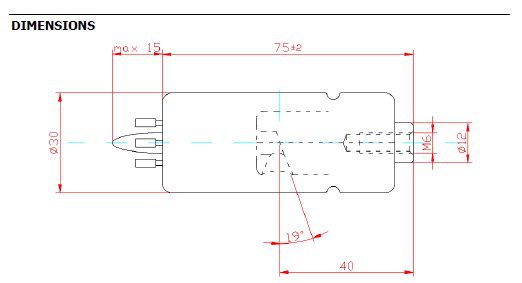

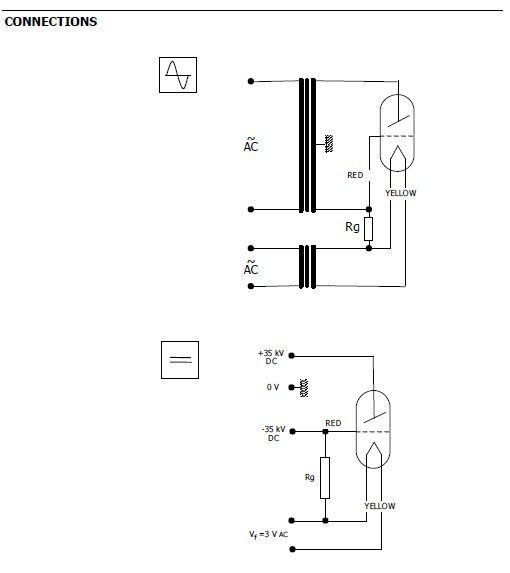

Dimensions and connections

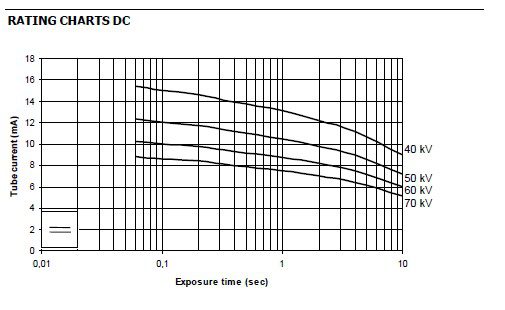

Maximum DC load diagrams

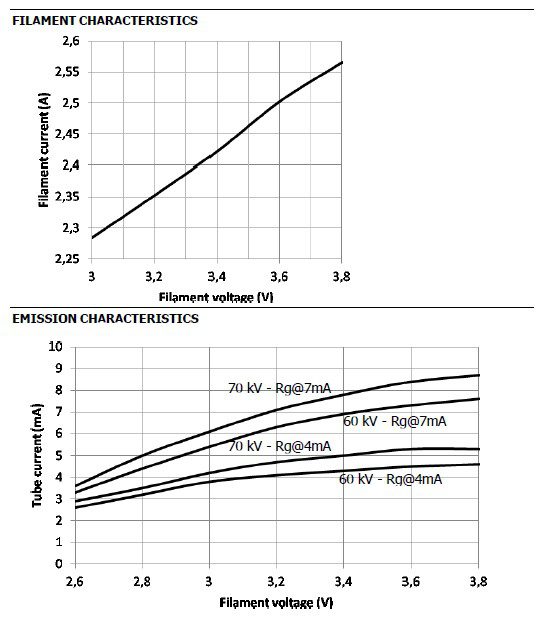

Filament and emission characteristics
