OCX/70-G

Description and datas

kV: 70Large Focal Spot: 0.8Target Angle: 19
Anode heat Capacity: 6000Nominal Input Power large: 840Max Dissipation Rate: 90
Max Diameter: 30Max Length: 75Max continuous mA: 8
Filament Current (Large): 2.8Filament Voltage (Large): 4.0
kV: 70Large Focal Spot: 0.8
Target Angle: 19Anode heat Capacity: 6000
Nominal Input Power large: 840Max Dissipation Rate: 90
Max Diameter: 30Max Length: 75
Max continuous mA: 8Filament Current (Large): 2.8
Filament Voltage (Large): 4.0
kV: 70
Large Focal Spot: 0.8
Target Angle: 19
Anode heat Capacity: 6000
Nominal Input Power large: 840
Max Dissipation Rate: 90
Max Diameter: 30
Max Length: 75
Max continuous mA: 8
Filament Current (Large): 2.8
Filament Voltage (Large): 4.0
OCX 70-G EnglishOCX 70-G FrenchOCX 70-G Italiano

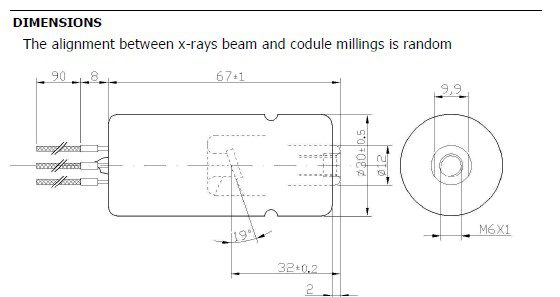

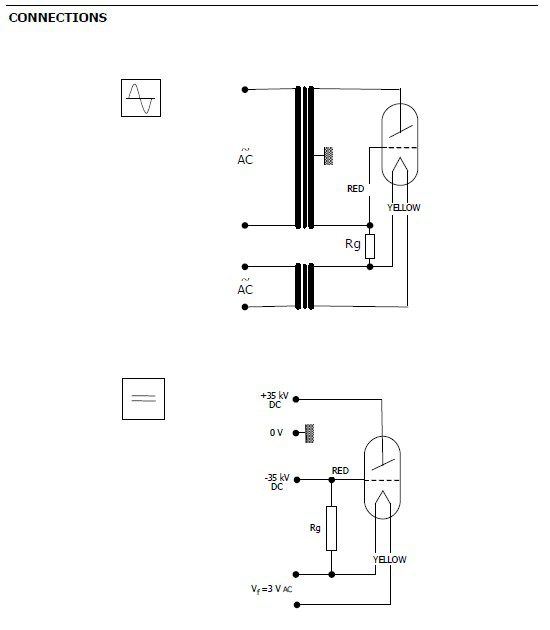

Dimensions and connections

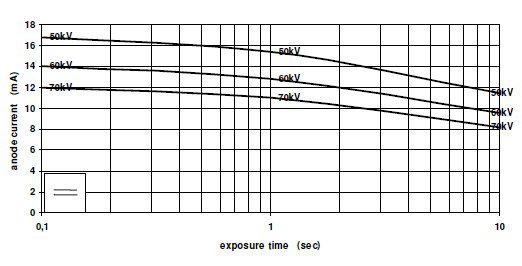

Maximum DC load diagrams

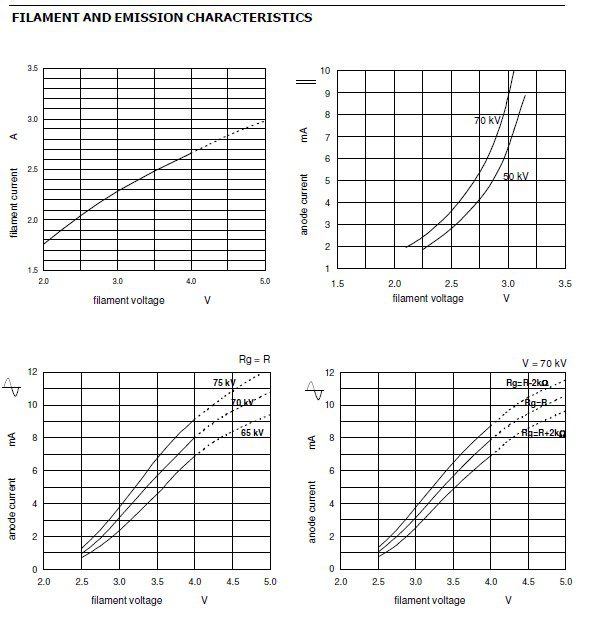

Filament and emission characteristics
