OPX/105-10

Description and datas

kV: 120Large Focal Spot: 0.5Target Angle: 10
Anode heat Capacity: 40000Nominal Input Power large: 1900Max Dissipation Rate: 500
Max Diameter: 45Max Length: 171Filament Current (Large): 4.0
Filament Voltage (Large): 6.0
kV: 120Large Focal Spot: 0.5
Target Angle: 10Anode heat Capacity: 40000
Nominal Input Power large: 1900Max Dissipation Rate: 500
Max Diameter: 45Max Length: 171
Filament Current (Large): 4.0Filament Voltage (Large): 6.0
kV: 120
Large Focal Spot: 0.5
Target Angle: 10
Anode heat Capacity: 40000
Nominal Input Power large: 1900
Max Dissipation Rate: 500
Max Diameter: 45
Max Length: 171
Filament Current (Large): 4.0
Filament Voltage (Large): 6.0
OPX 105-10 rev.B EngOPX 105-10 rev.B FraOPX 105-10 rev.B Ita

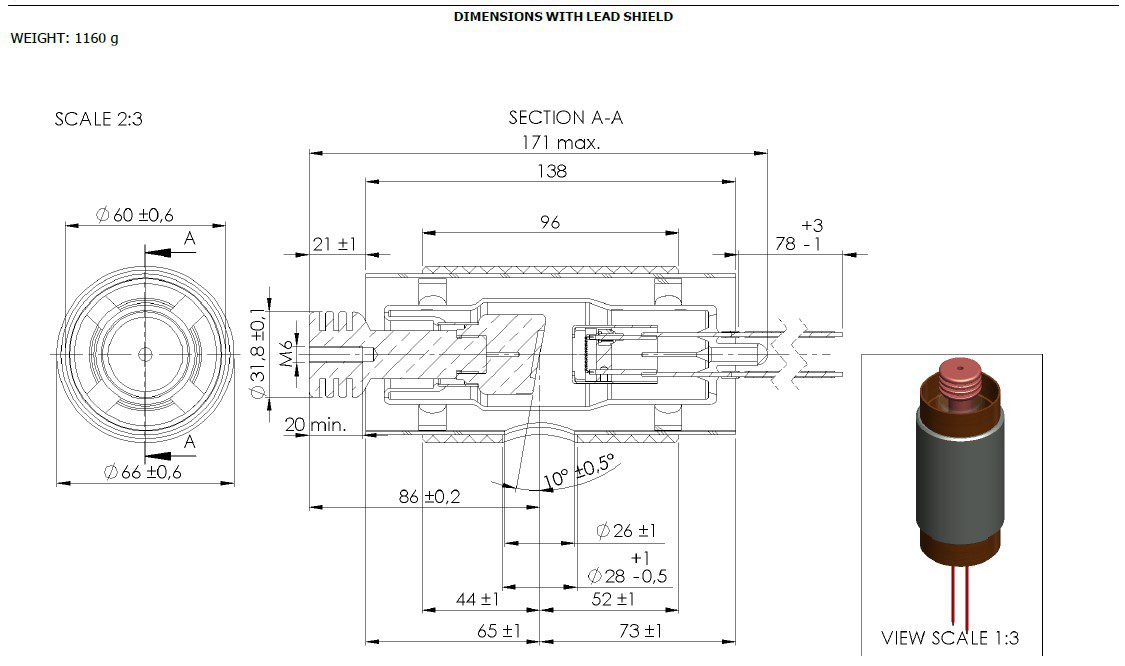

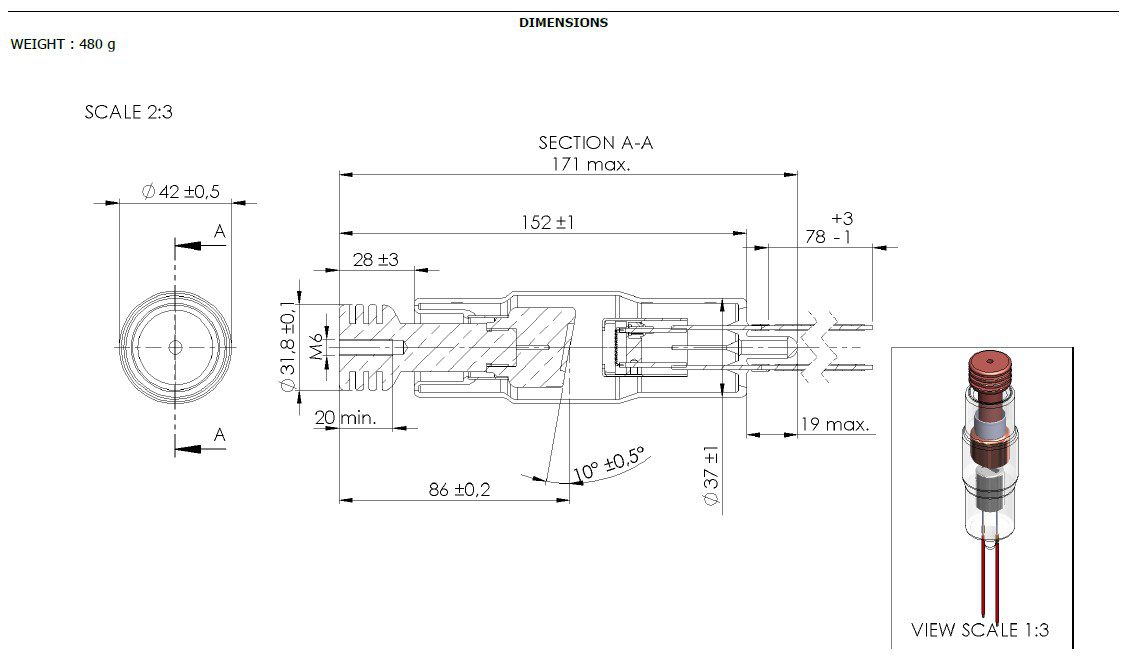

Dimensions and connections

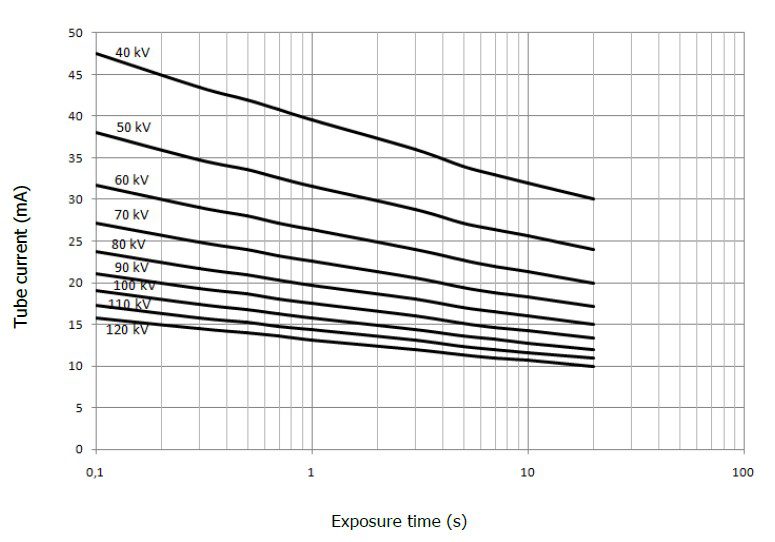

Maximum DC load diagrams

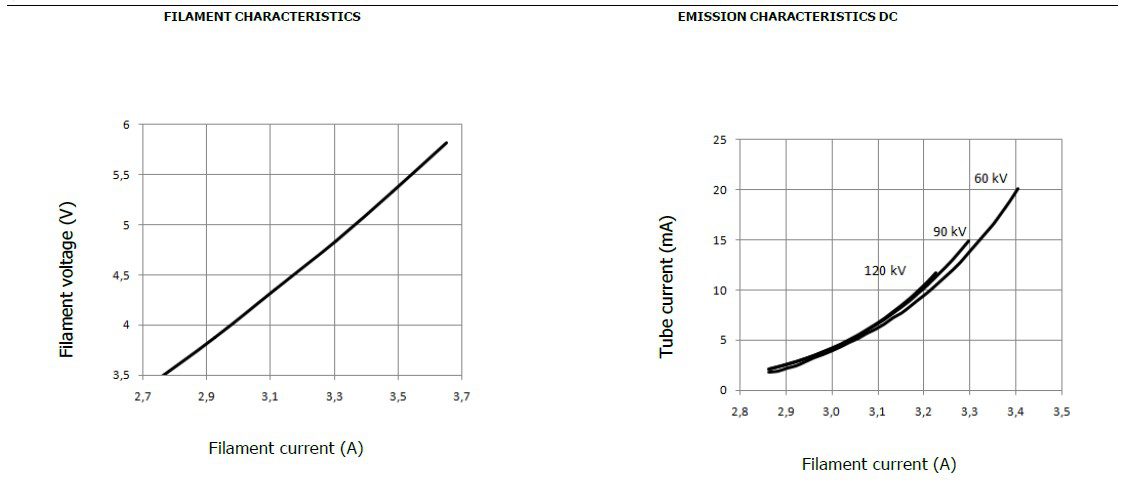

Filament and emission characteristics
