OPX/105-12

Description and datas

kV: 110Large Focal Spot: 0.5Target Angle: 12
Anode heat Capacity: 30000Nominal Input Power large: 1900Max Dissipation Rate: 300
Max Diameter: 42Max Length: 158Filament Current (Large): 4.0
Filament Voltage (Large): 6.7
kV: 110Large Focal Spot: 0.5
Target Angle: 12Anode heat Capacity: 30000
Nominal Input Power large: 1900Max Dissipation Rate: 300
Max Diameter: 42Max Length: 158
Filament Current (Large): 4.0Filament Voltage (Large): 6.7
kV: 110
Large Focal Spot: 0.5
Target Angle: 12
Anode heat Capacity: 30000
Nominal Input Power large: 1900
Max Dissipation Rate: 300
Max Diameter: 42
Max Length: 158
Filament Current (Large): 4.0
Filament Voltage (Large): 6.7
OPX 105-12 EnglishOPX 105-12 FrancaisOPX 105-12 Italiano

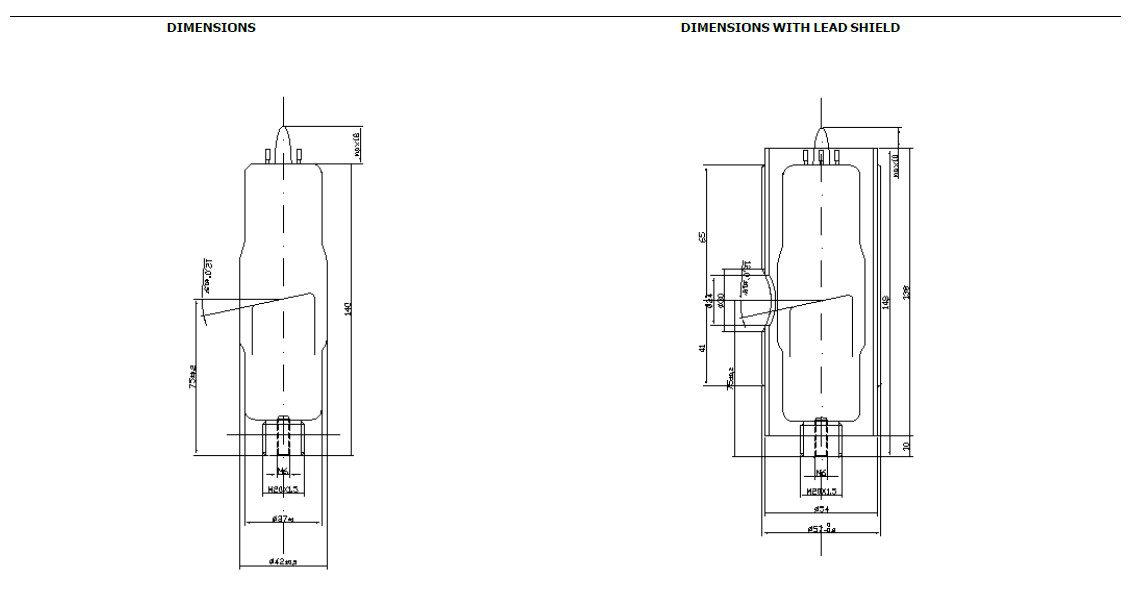

Dimensions and connections

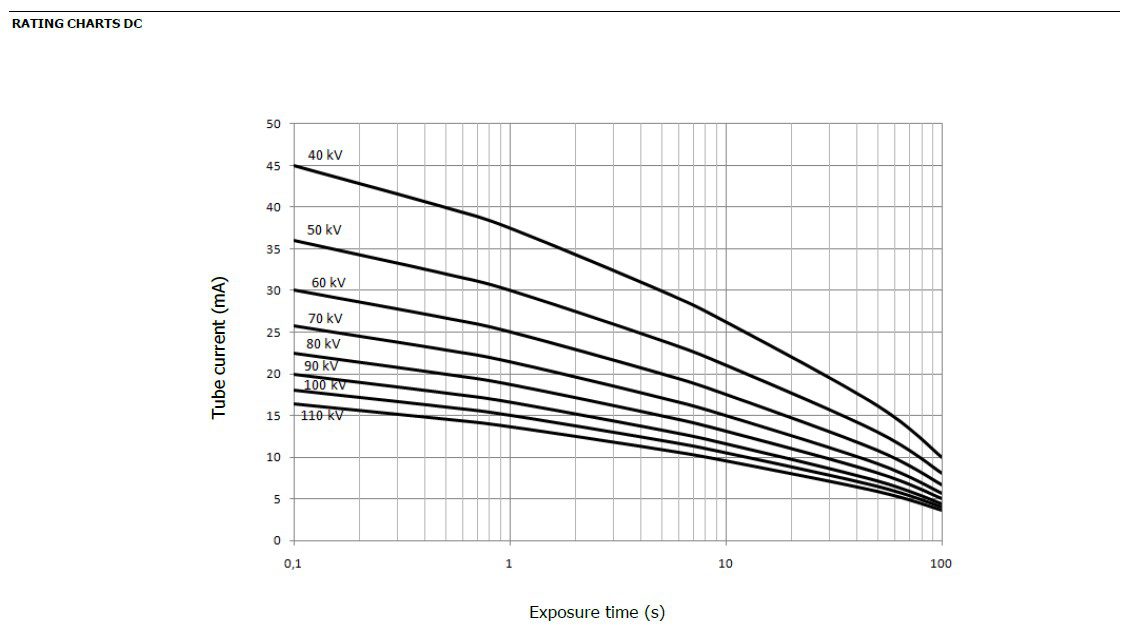

Maximum DC load diagrams

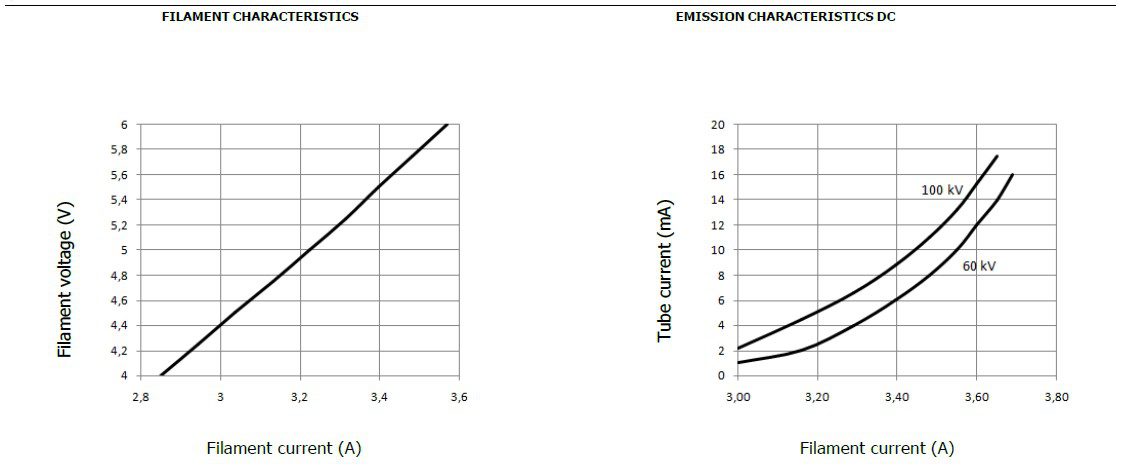

Filament and emission characteristics
