OPX/105

Description and datas

kV: 110Large Focal Spot: 0.5Target Angle: 5
Anode heat Capacity: 30000Nominal Input Power large: 2000Max Dissipation Rate: 250
Max Diameter: 42Max Length: 160Filament Current (Large): 3.5
Filament Voltage (Large): 6.0
kV: 110Large Focal Spot: 0.5
Target Angle: 5Anode heat Capacity: 30000
Nominal Input Power large: 2000Max Dissipation Rate: 250
Max Diameter: 42Max Length: 160
Filament Current (Large): 3.5Filament Voltage (Large): 6.0
kV: 110
Large Focal Spot: 0.5
Target Angle: 5
Anode heat Capacity: 30000
Nominal Input Power large: 2000
Max Dissipation Rate: 250
Max Diameter: 42
Max Length: 160
Filament Current (Large): 3.5
Filament Voltage (Large): 6.0
OPX 105 rev.Q EngOPX 105 rev.Q FraOPX 105 rev.Q Ita

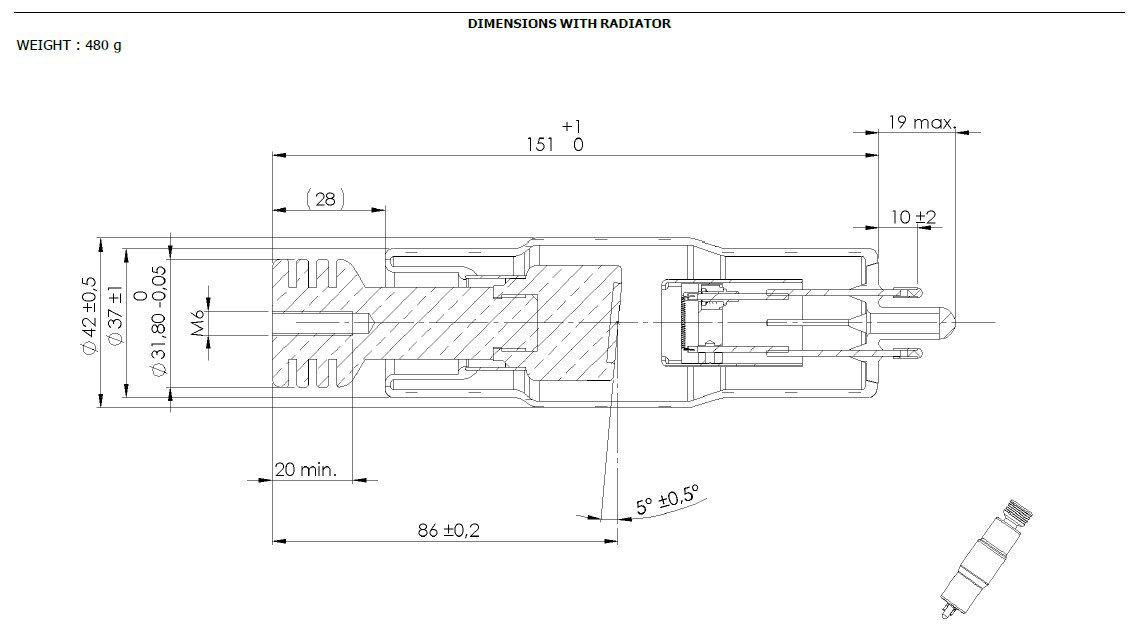

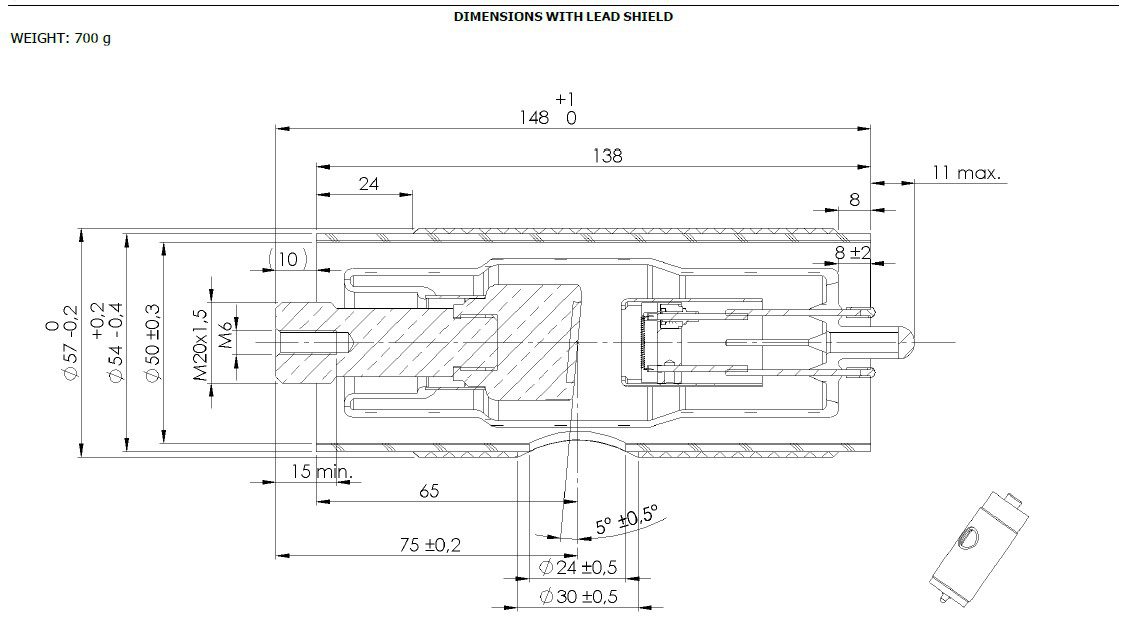

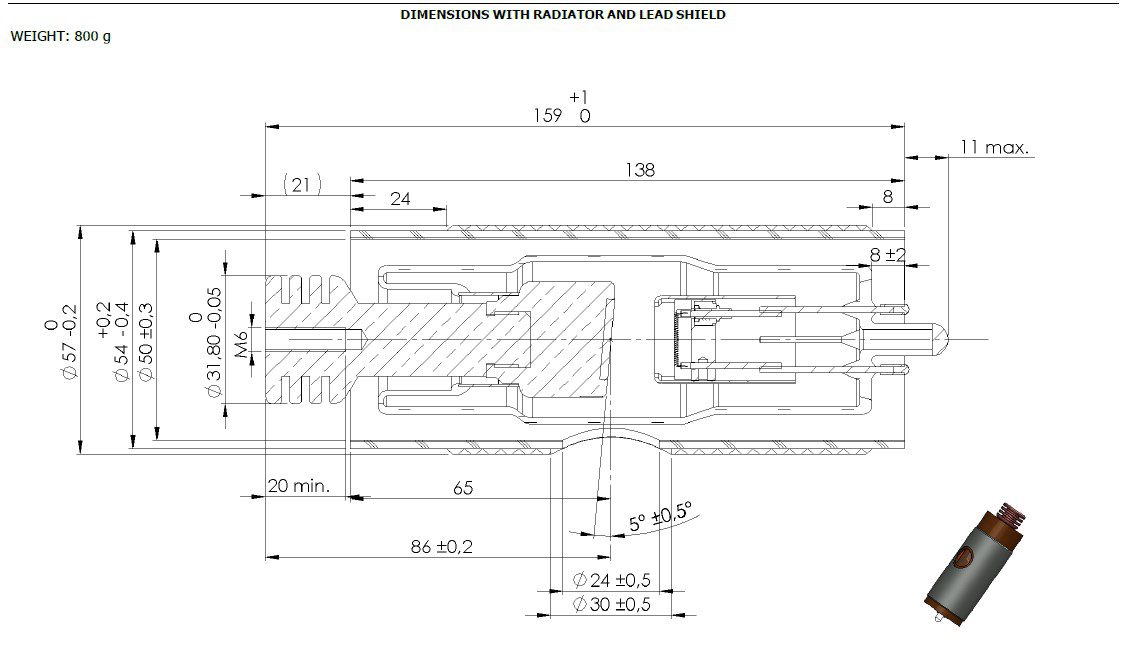

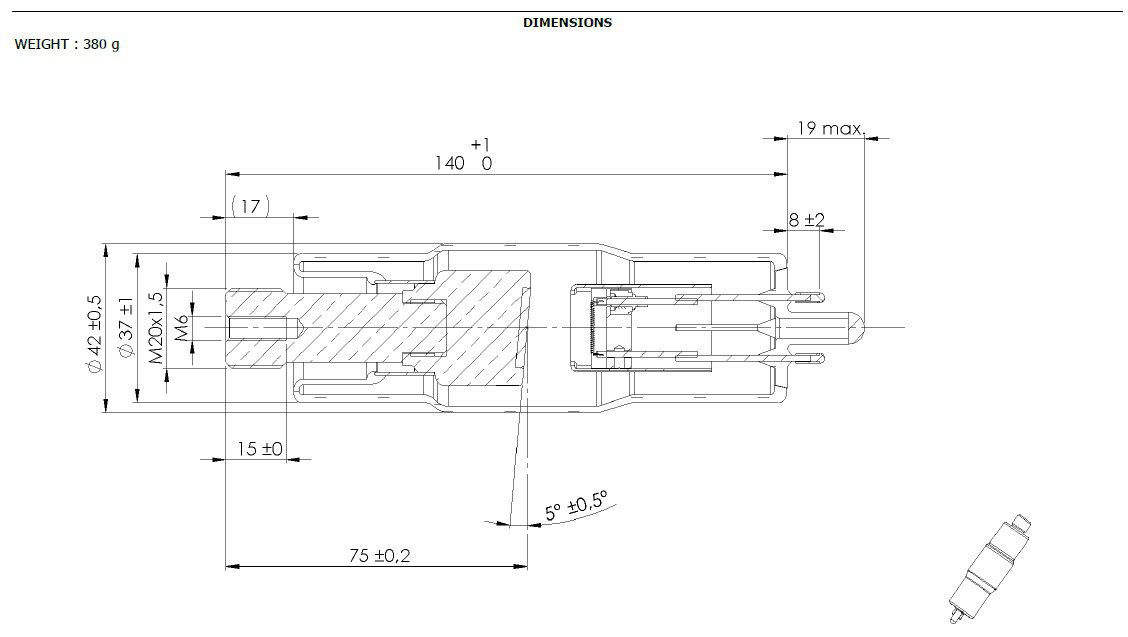

Dimensions and connections

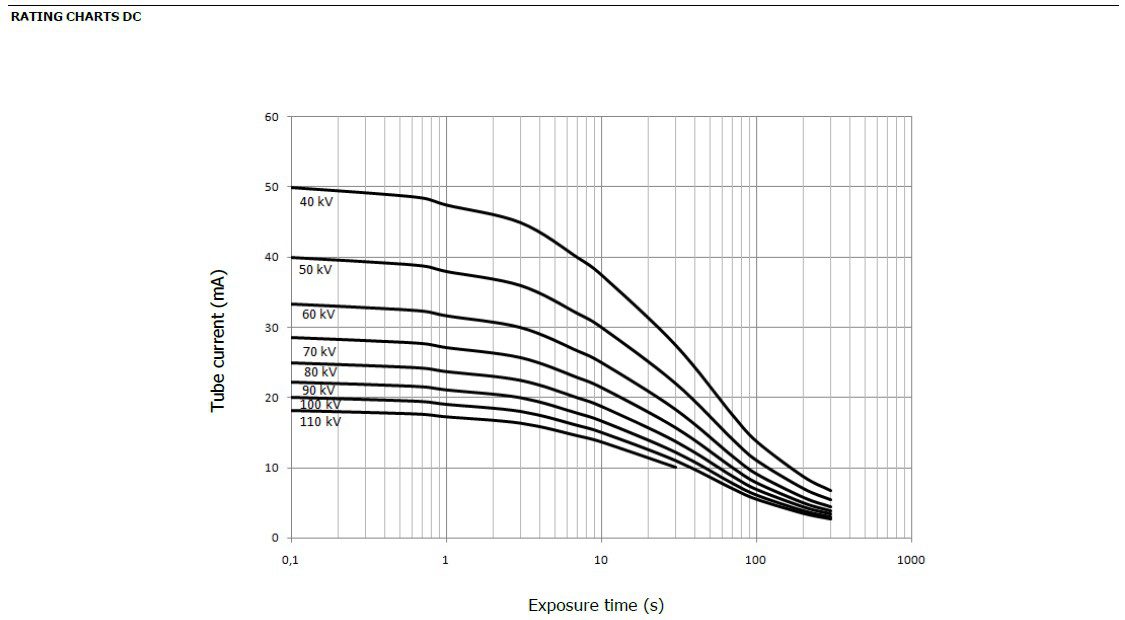

Maximum DC load diagrams

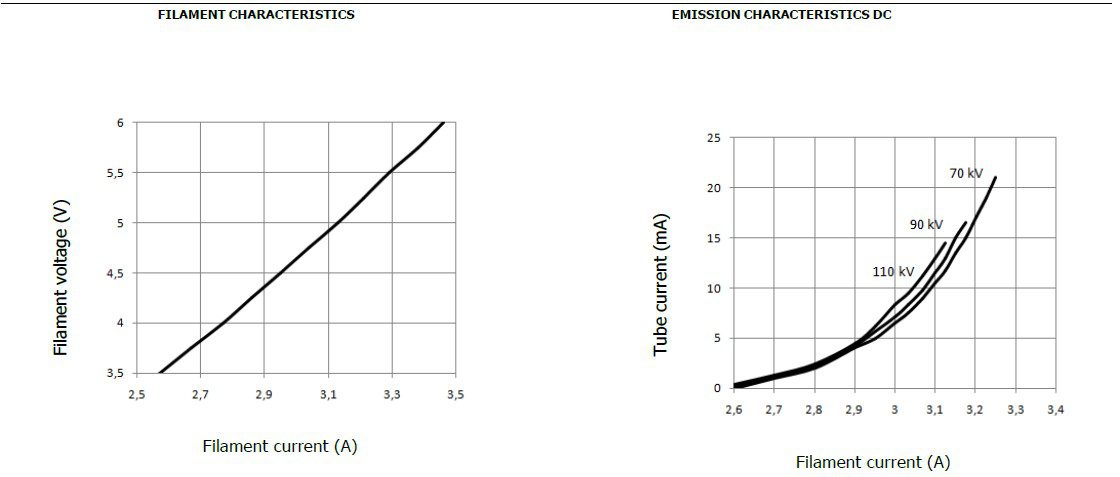

Filament and emission characteristics
