OPX/105-4

Description and datas

kV: 105Large Focal Spot: 0.4Target Angle: 5
Anode heat Capacity: 30000Nominal Input Power large: 1800Max Dissipation Rate: 250
Max Diameter: 42Max Length: 158Filament Current (Large): 3.5
Filament Voltage (Large): 6.0
kV: 105Large Focal Spot: 0.4
Target Angle: 5Anode heat Capacity: 30000
Nominal Input Power large: 1800Max Dissipation Rate: 250
Max Diameter: 42Max Length: 158
Filament Current (Large): 3.5Filament Voltage (Large): 6.0
kV: 105
Large Focal Spot: 0.4
Target Angle: 5
Anode heat Capacity: 30000
Nominal Input Power large: 1800
Max Dissipation Rate: 250
Max Diameter: 42
Max Length: 158
Filament Current (Large): 3.5
Filament Voltage (Large): 6.0
OPX 105-4 EnglishOPX 105-4 FrenchOPX 105-4 Italiano

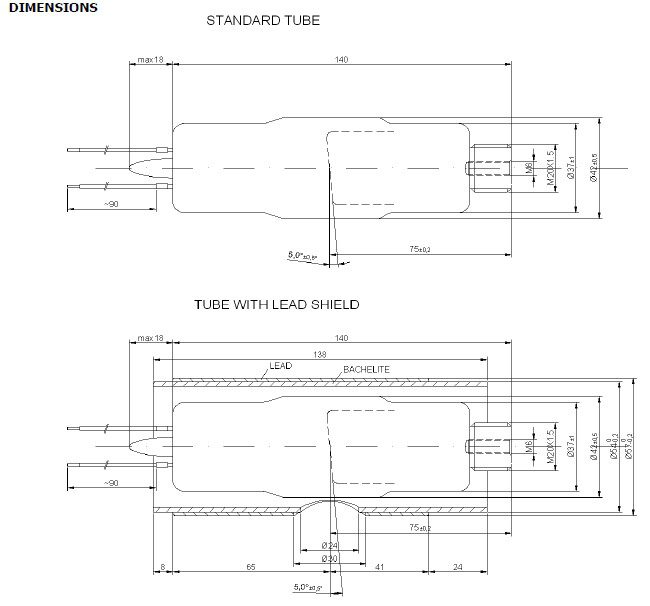

Dimensions and connections

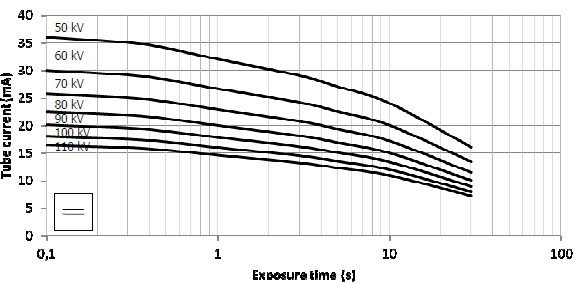

Maximum DC load diagrams

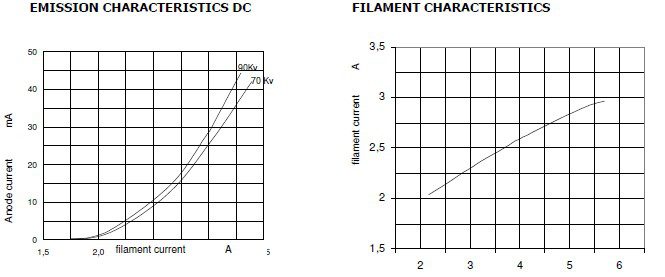

Filament and emission characteristics
