OPX/105-S

Description and datas

kV: 105Large Focal Spot: 0.5Target Angle: 5
Anode heat Capacity: 30000Nominal Input Power large: 2000Max Dissipation Rate: 250
Max Diameter: 42Max Length: 140Filament Current (Large): 4.0
Filament Voltage (Large): 8.0
kV: 105Large Focal Spot: 0.5
Target Angle: 5Anode heat Capacity: 30000
Nominal Input Power large: 2000Max Dissipation Rate: 250
Max Diameter: 42Max Length: 140
Filament Current (Large): 4.0Filament Voltage (Large): 8.0
kV: 105
Large Focal Spot: 0.5
Target Angle: 5
Anode heat Capacity: 30000
Nominal Input Power large: 2000
Max Dissipation Rate: 250
Max Diameter: 42
Max Length: 140
Filament Current (Large): 4.0
Filament Voltage (Large): 8.0
OPX 105-S EnglishOPX 105-S FrenchOPX 105-S Italiano

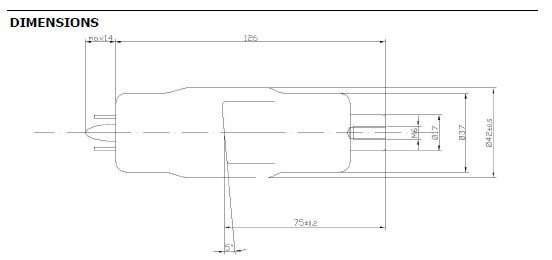

Dimensions and connections

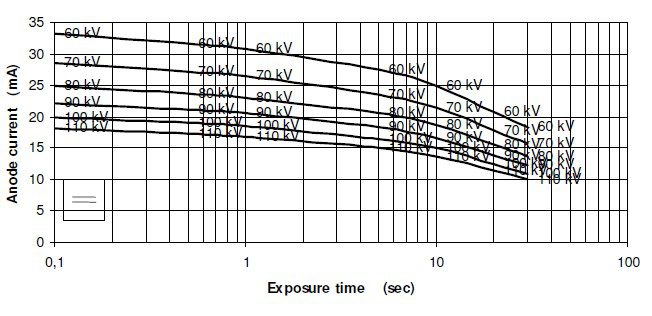

Maximum DC load diagrams

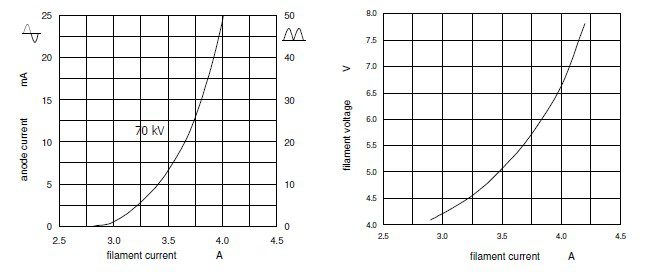

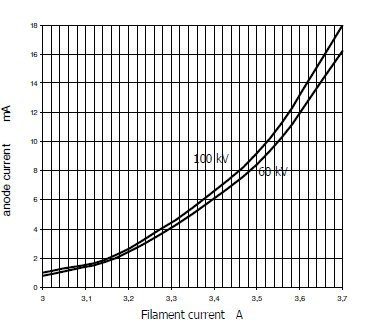

Filament and emission characteristics
