OPX/110

Description and datas

kV: 110Large Focal Spot: 0.7Target Angle: 12
Anode heat Capacity: 30000Nominal Input Power large: 1900Max Dissipation Rate: 300
Max Diameter: 46Max Length: 137Filament Current (Large): 3.8
Filament Voltage (Large): 6.0
kV: 110Large Focal Spot: 0.7
Target Angle: 12Anode heat Capacity: 30000
Nominal Input Power large: 1900Max Dissipation Rate: 300
Max Diameter: 46Max Length: 137
Filament Current (Large): 3.8Filament Voltage (Large): 6.0
kV: 110
Large Focal Spot: 0.7
Target Angle: 12
Anode heat Capacity: 30000
Nominal Input Power large: 1900
Max Dissipation Rate: 300
Max Diameter: 46
Max Length: 137
Filament Current (Large): 3.8
Filament Voltage (Large): 6.0
OPX 110 EnglishOPX 110 FrenchOPX 110 Italiano

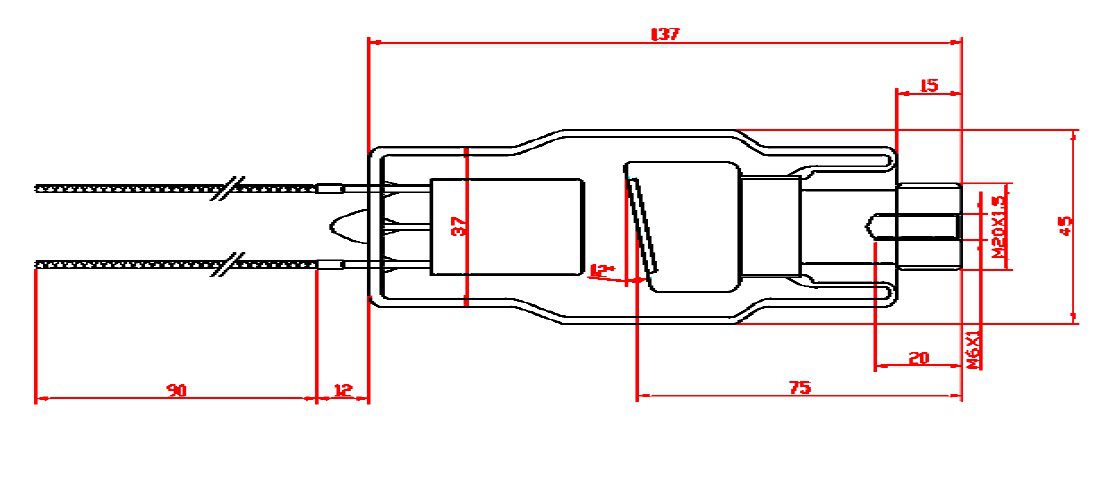

Dimensions and connections

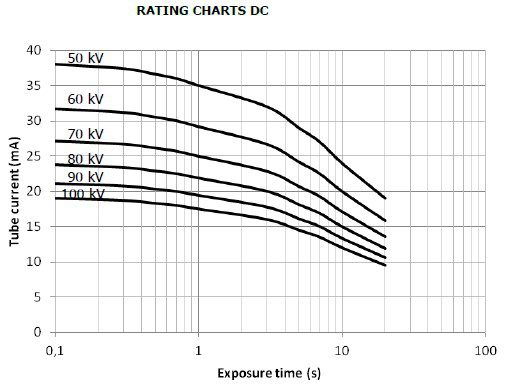

Maximum DC load diagrams

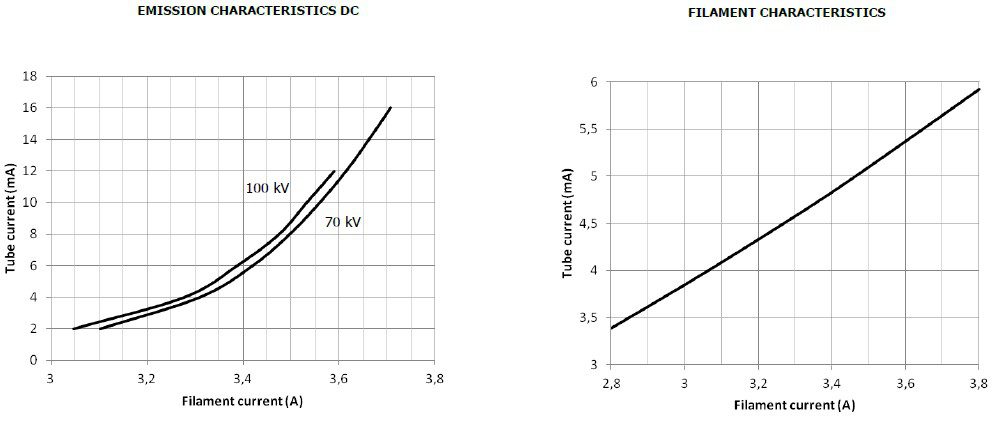

Filament and emission characteristics
