OX/100-07G

Description and datas

kV: 100Large Focal Spot: 0.7Target Angle: 12
Anode heat Capacity: 33000Nominal Input Power large: 1200Max Dissipation Rate: 280
Max Diameter: 50Max Length: 152Filament Current (Large): 4.2
Filament Voltage (Large): 3.3
kV: 100Large Focal Spot: 0.7
Target Angle: 12Anode heat Capacity: 33000
Nominal Input Power large: 1200Max Dissipation Rate: 280
Max Diameter: 50Max Length: 152
Filament Current (Large): 4.2Filament Voltage (Large): 3.3
kV: 100
Large Focal Spot: 0.7
Target Angle: 12
Anode heat Capacity: 33000
Nominal Input Power large: 1200
Max Dissipation Rate: 280
Max Diameter: 50
Max Length: 152
Filament Current (Large): 4.2
Filament Voltage (Large): 3.3
OX100-07G rev.A Eng

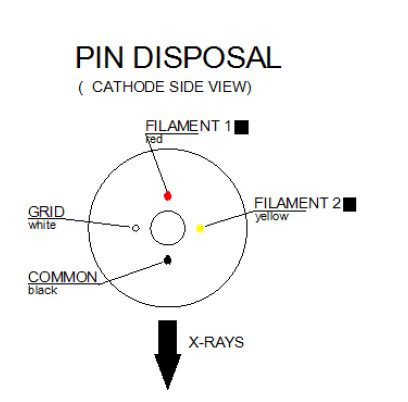

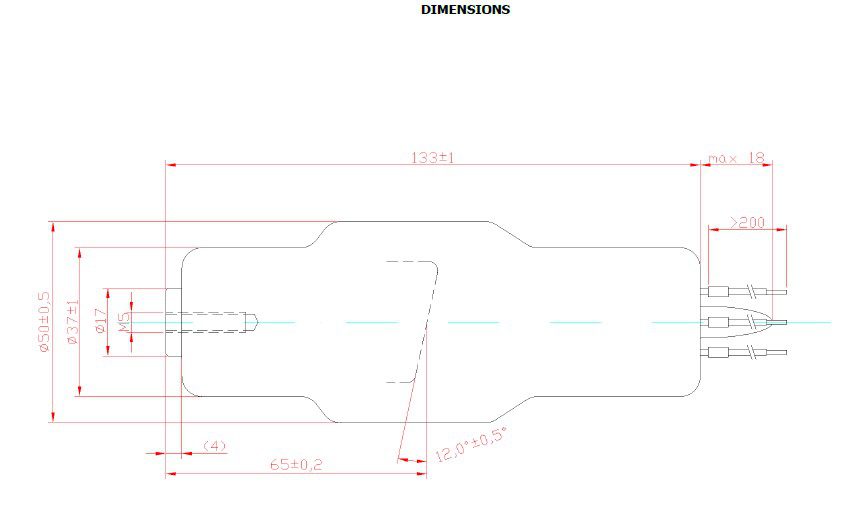

Dimensions and connections

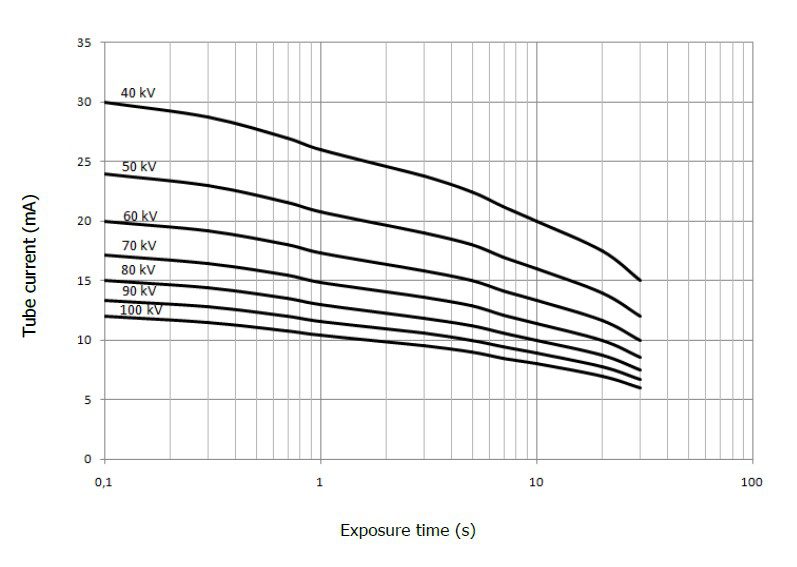

Maximum DC load diagrams

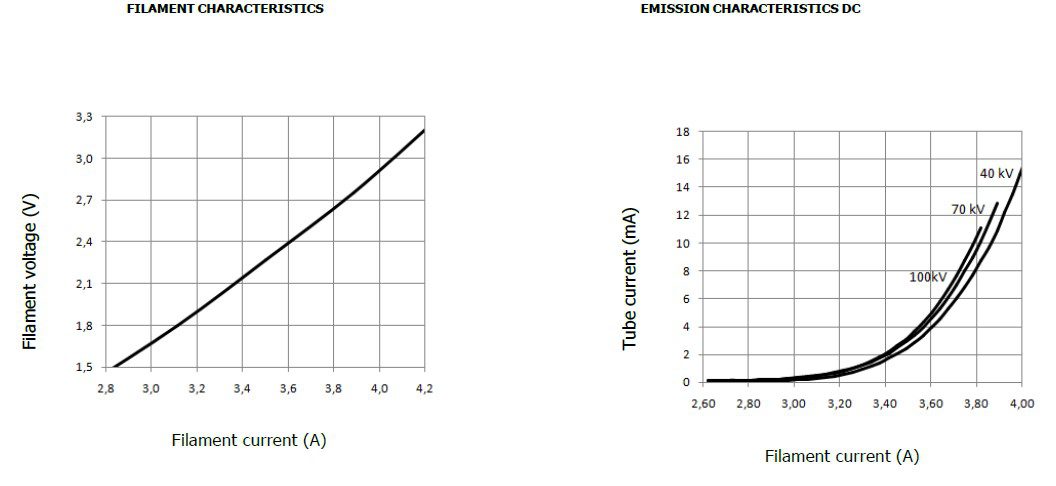

Filament and emission characteristics
