OX/100

Description and datas

kV: 100Large Focal Spot: 1.0Target Angle: 16
Anode heat Capacity: 14000Nominal Input Power large: 2600Max Dissipation Rate: 150
Max Diameter: 35Max Length: 98Filament Current (Large): 3.2
Filament Voltage (Large): 4.5
kV: 100Large Focal Spot: 1.0
Target Angle: 16Anode heat Capacity: 14000
Nominal Input Power large: 2600Max Dissipation Rate: 150
Max Diameter: 35Max Length: 98
Filament Current (Large): 3.2Filament Voltage (Large): 4.5
kV: 100
Large Focal Spot: 1.0
Target Angle: 16
Anode heat Capacity: 14000
Nominal Input Power large: 2600
Max Dissipation Rate: 150
Max Diameter: 35
Max Length: 98
Filament Current (Large): 3.2
Filament Voltage (Large): 4.5
OX 100 EnglishOX 100 FrenchOX 100 Italiano

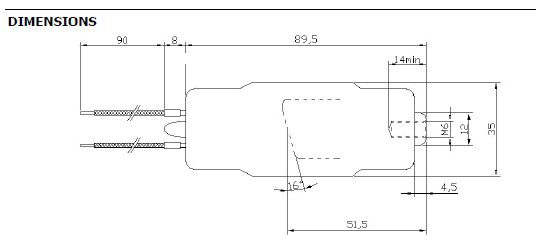

Dimensions and connections

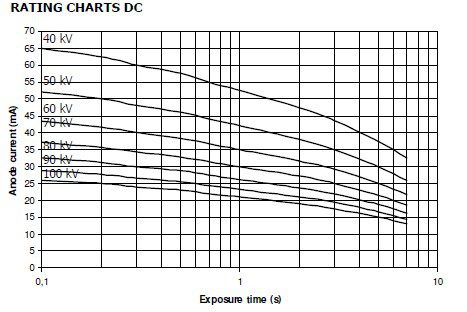

Maximum DC load diagrams

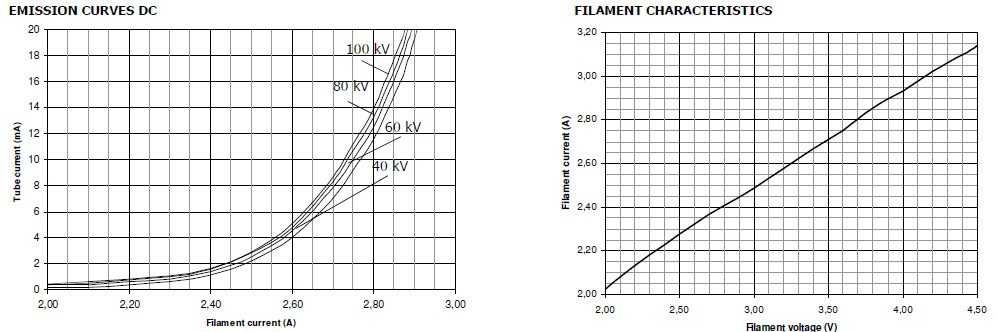

Filament and emission characteristics
