OX/100-L

Description and datas

kV: 100Large Focal Spot: 1.2Target Angle: 16
Anode heat Capacity: 14000Nominal Input Power large: 2900Max Dissipation Rate: 150
Max Diameter: 37Max Length: 123Filament Current (Large): 3.5
Filament Voltage (Large): 5.0
kV: 100Large Focal Spot: 1.2
Target Angle: 16Anode heat Capacity: 14000
Nominal Input Power large: 2900Max Dissipation Rate: 150
Max Diameter: 37Max Length: 123
Filament Current (Large): 3.5Filament Voltage (Large): 5.0
kV: 100
Large Focal Spot: 1.2
Target Angle: 16
Anode heat Capacity: 14000
Nominal Input Power large: 2900
Max Dissipation Rate: 150
Max Diameter: 37
Max Length: 123
Filament Current (Large): 3.5
Filament Voltage (Large): 5.0
OX 100-L EnglishOX 100-L FrenchOX 100-L Italiano

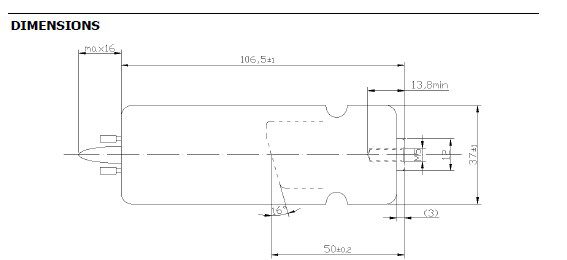

Dimensions and connections

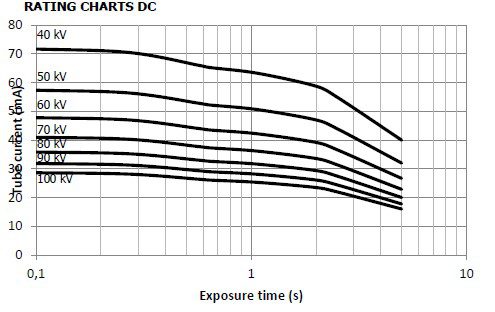

Maximum DC load diagrams

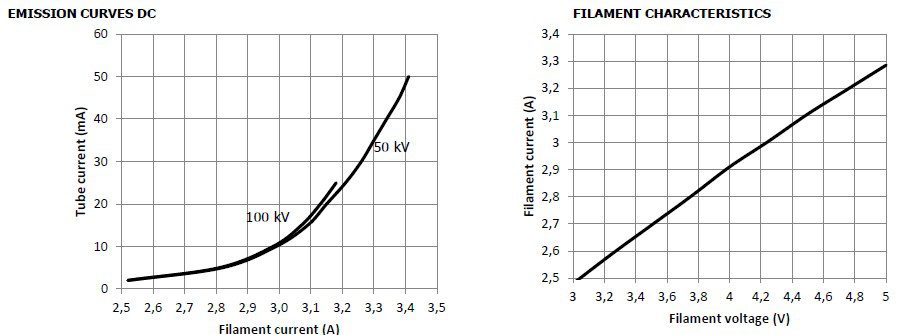

Filament and emission characteristics
