OX/105-2

Description and datas

kV: 110Large Focal Spot: 1.8Target Angle: 19
Anode heat Capacity: 30000Nominal Input Power large: 4200Max Dissipation Rate: 250
Max Diameter: 50Max Length: 159Filament Current (Large): 4.0
Filament Voltage (Large): 5.5
kV: 110Large Focal Spot: 1.8
Target Angle: 19Anode heat Capacity: 30000
Nominal Input Power large: 4200Max Dissipation Rate: 250
Max Diameter: 50Max Length: 159
Filament Current (Large): 4.0Filament Voltage (Large): 5.5
kV: 110
Large Focal Spot: 1.8
Target Angle: 19
Anode heat Capacity: 30000
Nominal Input Power large: 4200
Max Dissipation Rate: 250
Max Diameter: 50
Max Length: 159
Filament Current (Large): 4.0
Filament Voltage (Large): 5.5
OX 105-2 EnglishOX 105-2 FrenchOX 105-2 Italiano

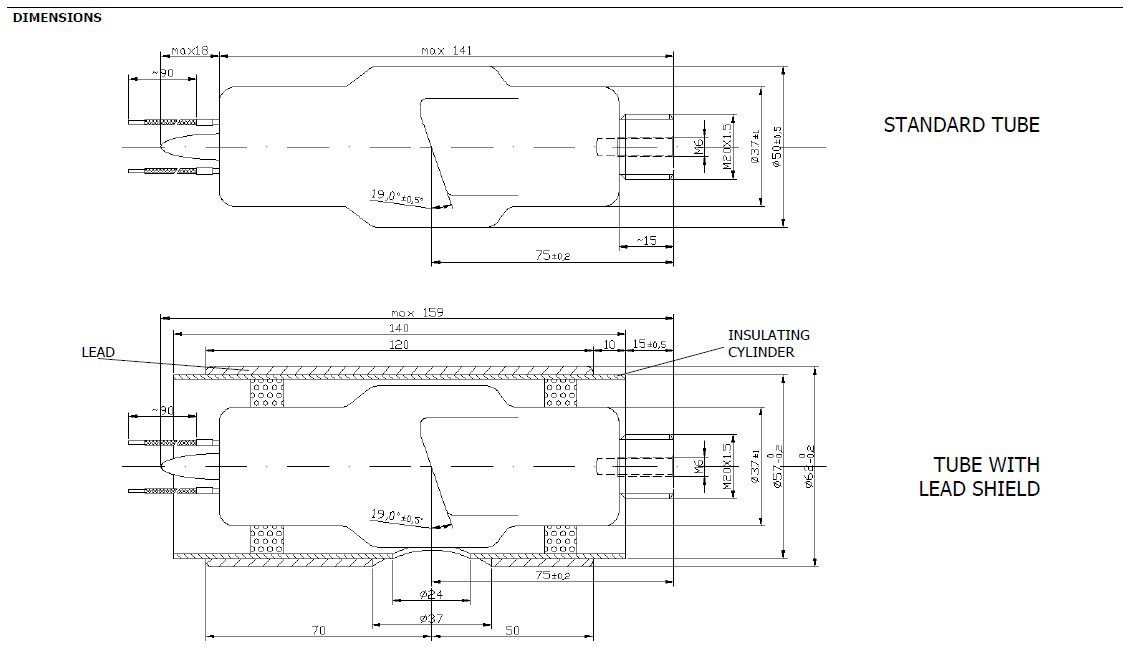

Dimensions and connections

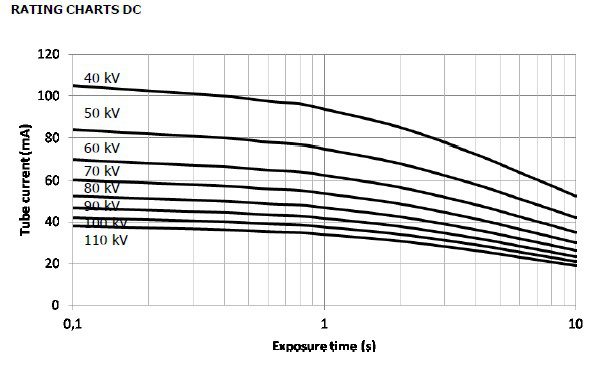

Maximum DC load diagrams

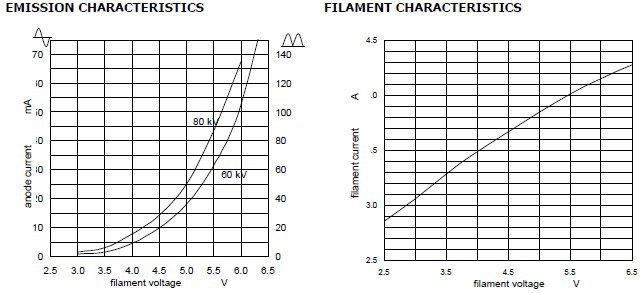

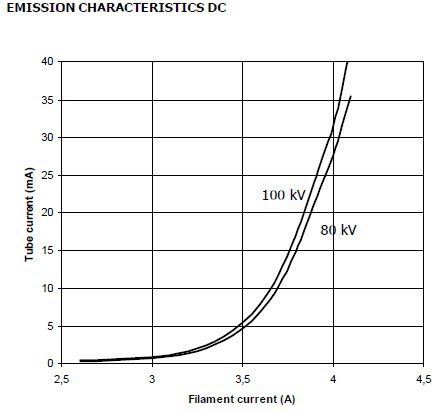

Filament and emission characteristics
