OX/105-4

Description and datas

kV: 110Large Focal Spot: 2.6Target Angle: 19
Anode heat Capacity: 30000Nominal Input Power large: 5700Max Dissipation Rate: 250
Max Diameter: 50Max Length: 157Filament Current (Large): 4.5
Filament Voltage (Large): 9.0
kV: 110Large Focal Spot: 2.6
Target Angle: 19Anode heat Capacity: 30000
Nominal Input Power large: 5700Max Dissipation Rate: 250
Max Diameter: 50Max Length: 157
Filament Current (Large): 4.5Filament Voltage (Large): 9.0
kV: 110
Large Focal Spot: 2.6
Target Angle: 19
Anode heat Capacity: 30000
Nominal Input Power large: 5700
Max Dissipation Rate: 250
Max Diameter: 50
Max Length: 157
Filament Current (Large): 4.5
Filament Voltage (Large): 9.0
OX 105-4 EnglishOX 105-4 FrenchOX 105-4 Italiano

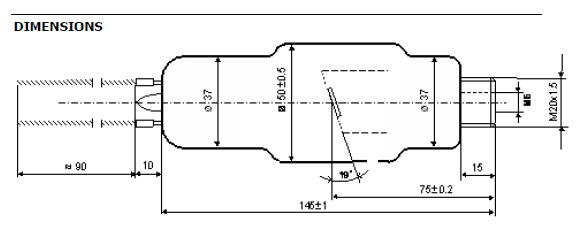

Dimensions and connections

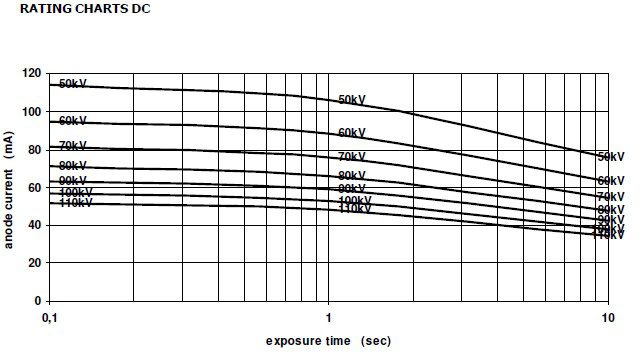

Maximum DC load diagrams

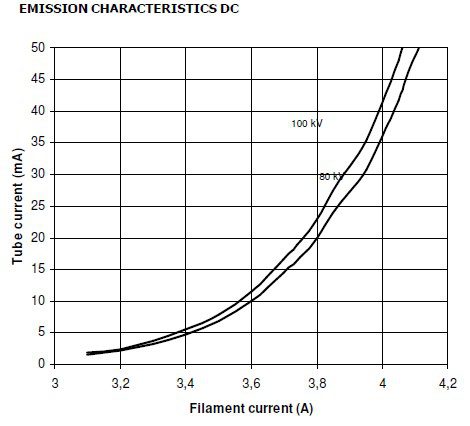

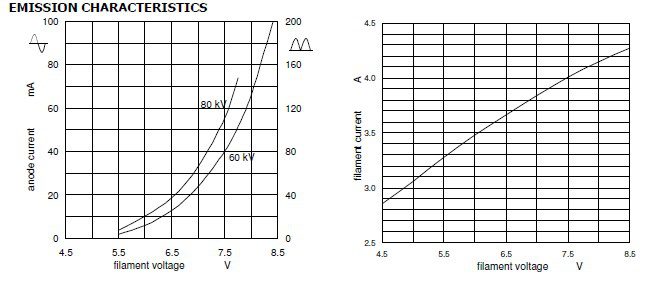

Filament and emission characteristics
