OX/105-6

Description and datas

kV: 110Large Focal Spot: 2.8Target Angle: 19
Anode heat Capacity: 30000Nominal Input Power large: 6500Max Dissipation Rate: 250
Max Diameter: 50Max Length: 158Filament Current (Large): 5.0
Filament Voltage (Large): 10.0
kV: 110Large Focal Spot: 2.8
Target Angle: 19Anode heat Capacity: 30000
Nominal Input Power large: 6500Max Dissipation Rate: 250
Max Diameter: 50Max Length: 158
Filament Current (Large): 5.0Filament Voltage (Large): 10.0
kV: 110
Large Focal Spot: 2.8
Target Angle: 19
Anode heat Capacity: 30000
Nominal Input Power large: 6500
Max Dissipation Rate: 250
Max Diameter: 50
Max Length: 158
Filament Current (Large): 5.0
Filament Voltage (Large): 10.0
OX 105-6 rev.I EnglishOX 105-6 rev.I FrenchOX 105-6 rev.I Italiano

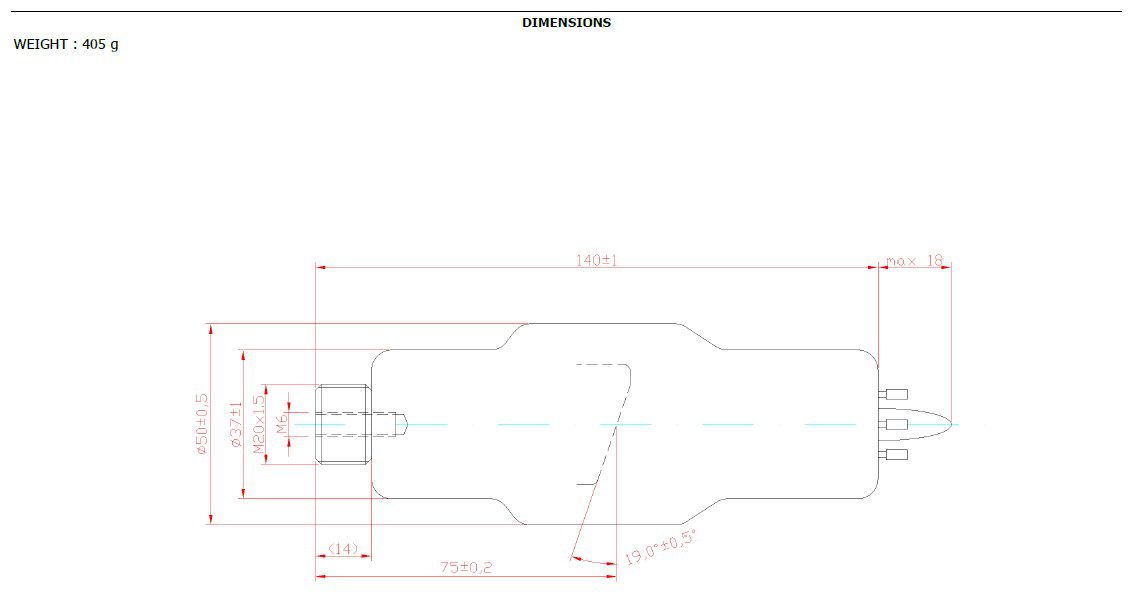

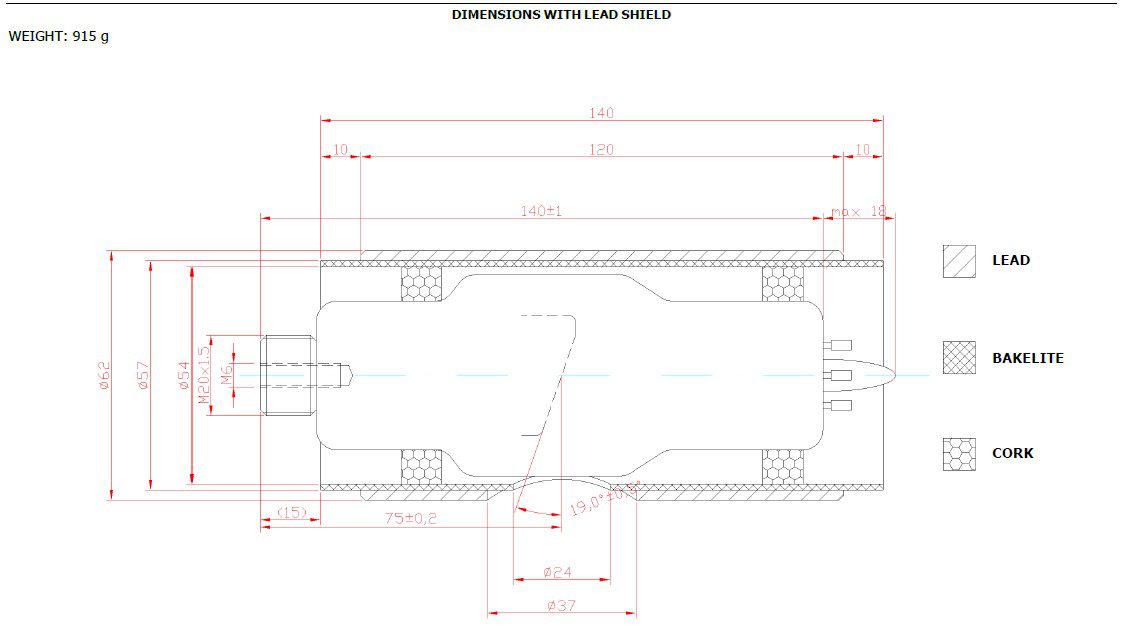

Dimensions and connections

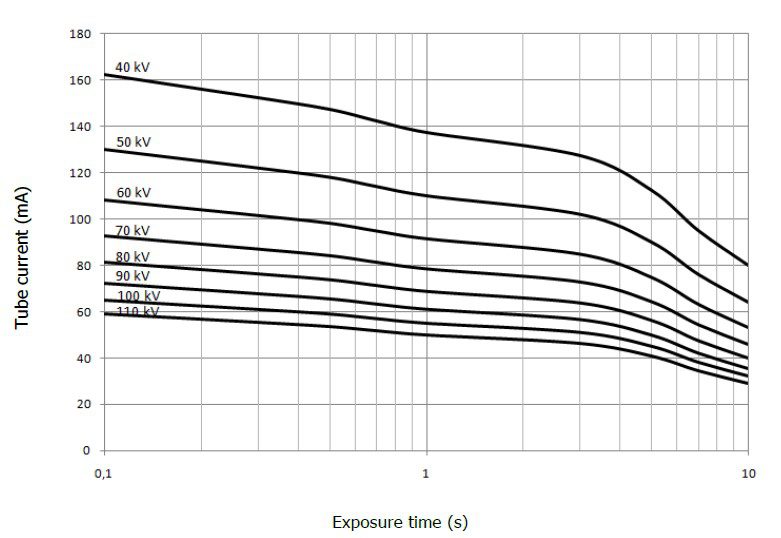

Maximum DC load diagrams

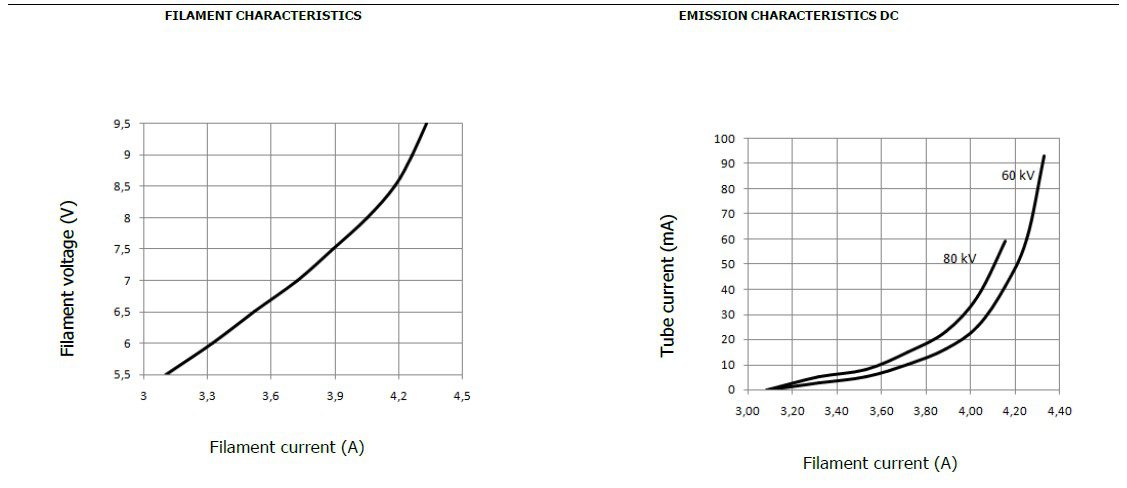

Filament and emission characteristics
