OX/110-0514

Description and datas

kV: 120Small focal spot: 0.5Large Focal Spot: 1.4
Target Angle: 15Anode heat Capacity: 30000Nominal Input Power small: 1200
Nominal Input Power large: 4500Max Dissipation Rate: 270Max Diameter: 50
Max Length: 153Filament Current (Large): 4.0Filament Voltage (Large): 9.0
Filament Current (Small): 4.0Filament Voltage (Small): 4.0
kV: 120Small focal spot: 0.5
Large Focal Spot: 1.4Target Angle: 15
Anode heat Capacity: 30000Nominal Input Power small: 1200
Nominal Input Power large: 4500Max Dissipation Rate: 270
Max Diameter: 50Max Length: 153
Filament Current (Large): 4.0Filament Voltage (Large): 9.0
Filament Current (Small): 4.0Filament Voltage (Small): 4.0
kV: 120
Small focal spot: 0.5
Large Focal Spot: 1.4
Target Angle: 15
Anode heat Capacity: 30000
Nominal Input Power small: 1200
Nominal Input Power large: 4500
Max Dissipation Rate: 270
Max Diameter: 50
Max Length: 153
Filament Current (Large): 4.0
Filament Voltage (Large): 9.0
Filament Current (Small): 4.0
Filament Voltage (Small): 4.0
OX 110-0514 rev E EnglishOX 110-0514 rev E FrenchOX 110-0514 rev E Italiano

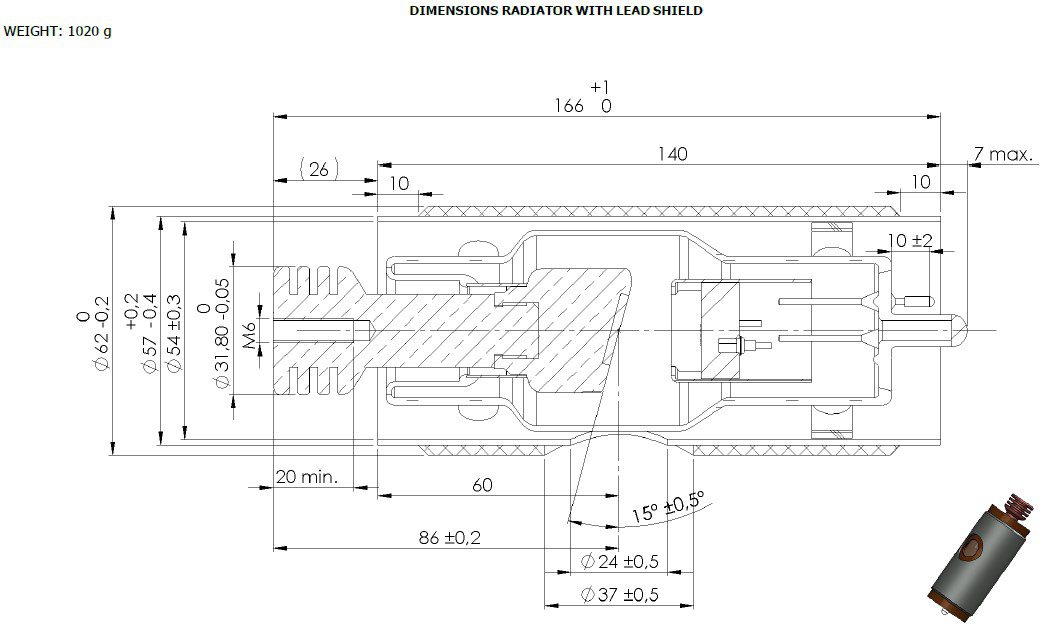

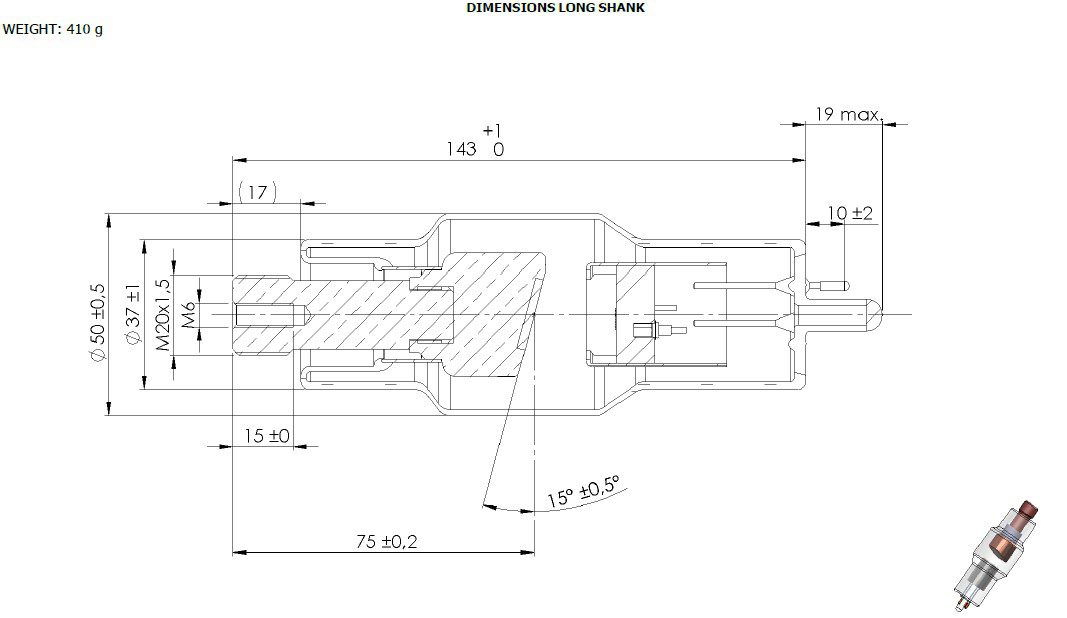

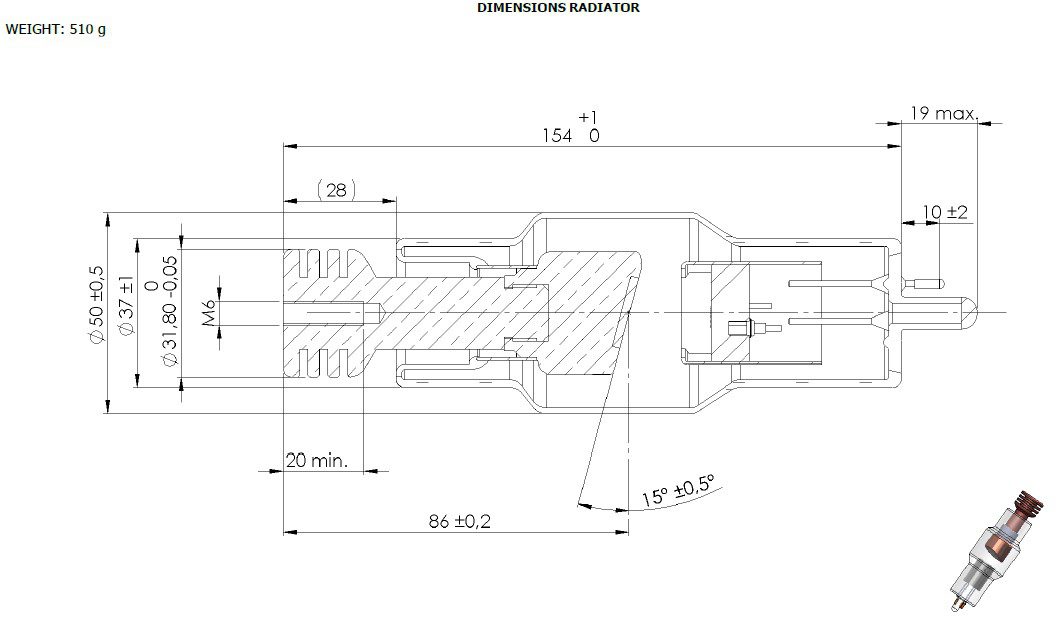

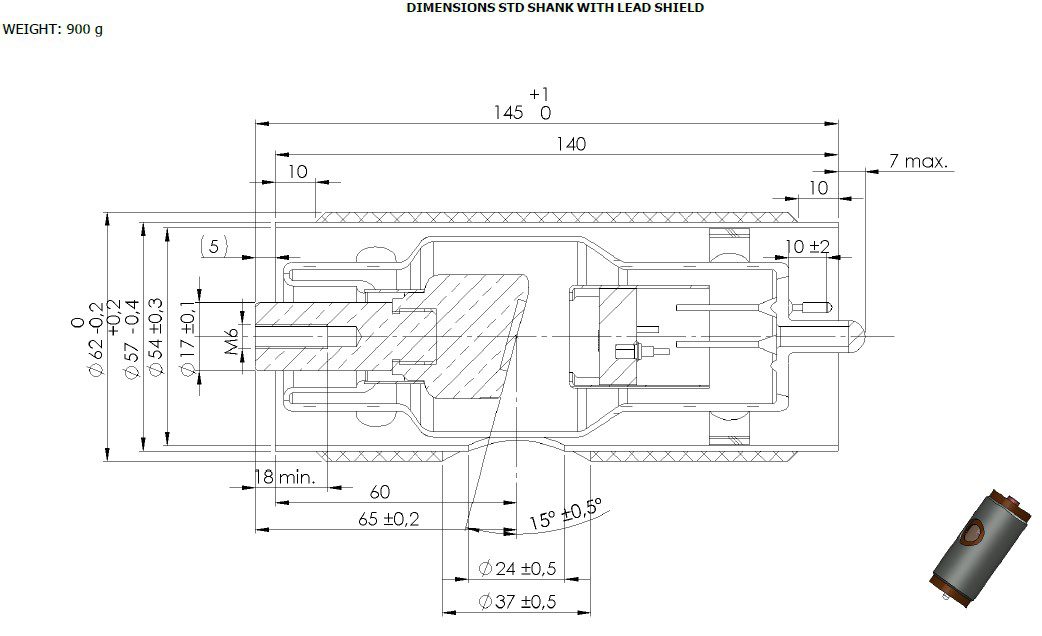

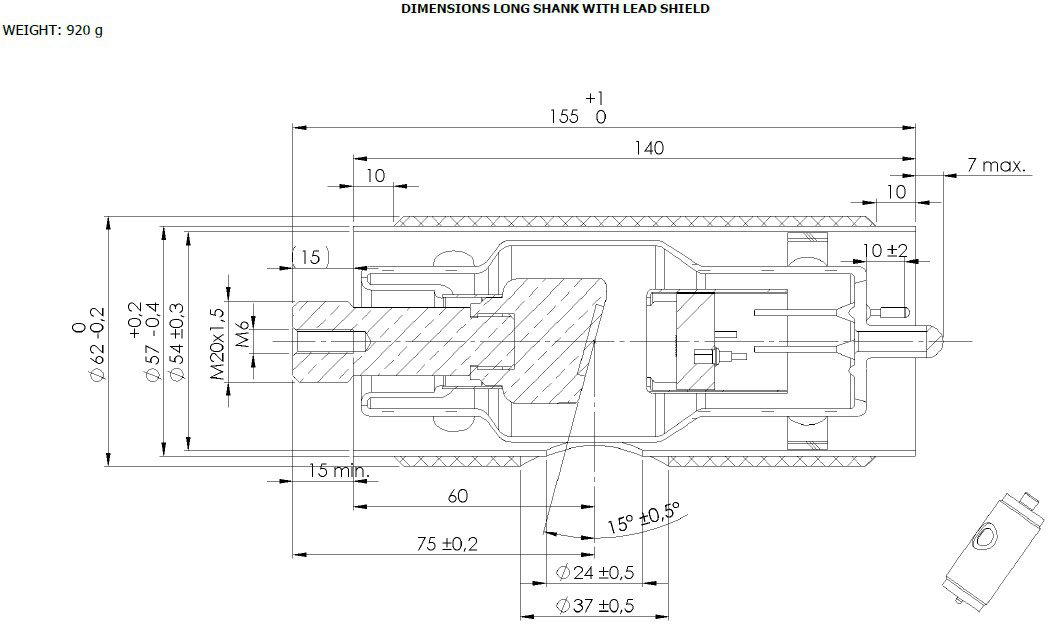

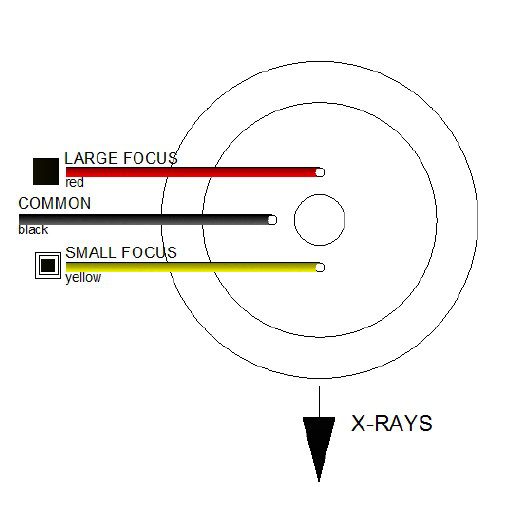

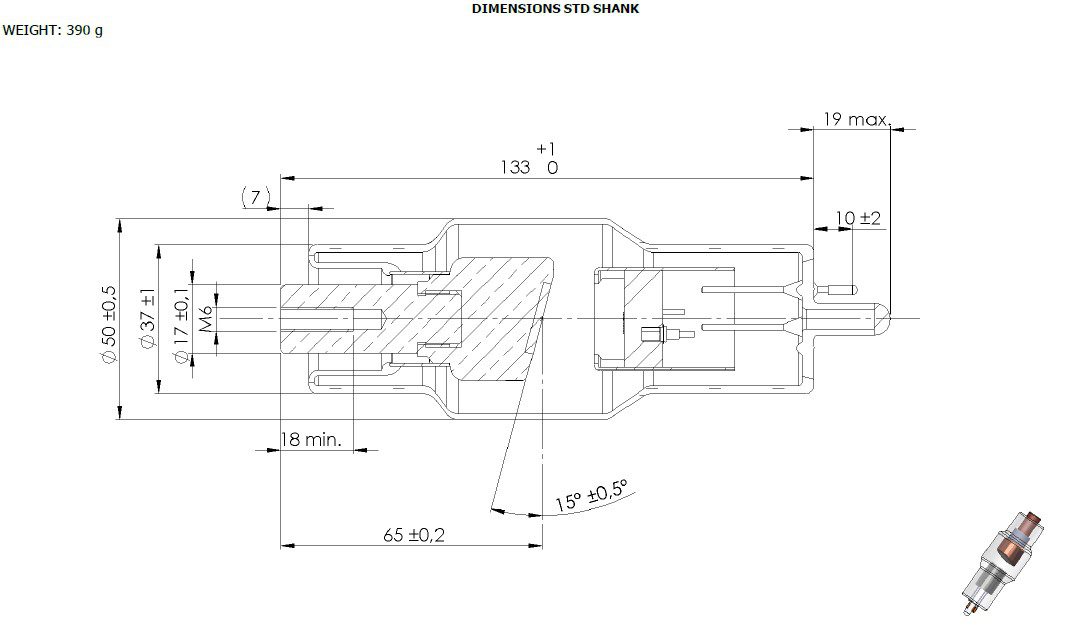

Dimensions and connections

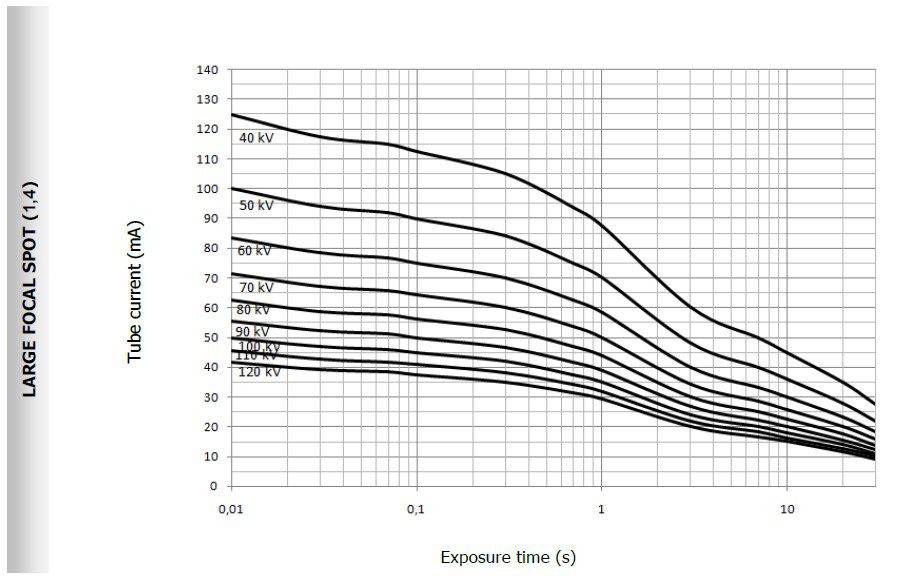

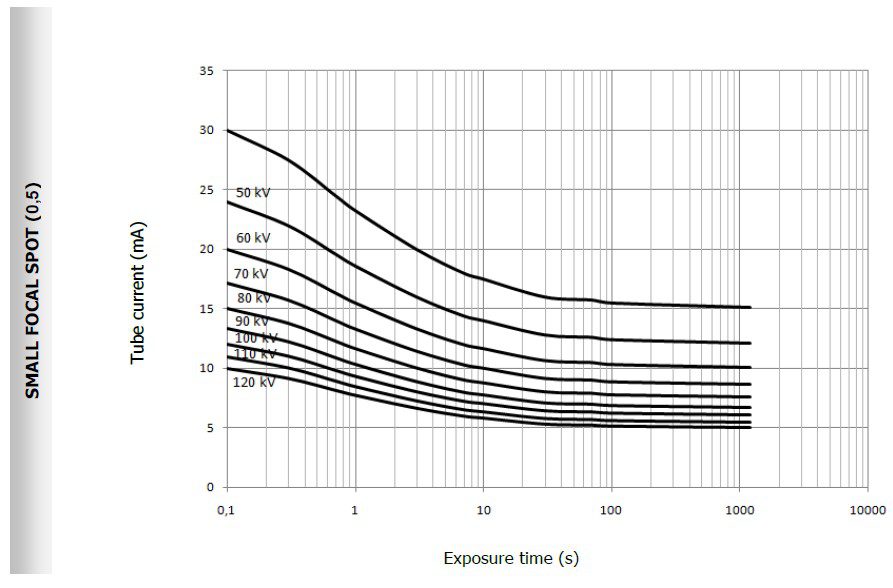

Maximum DC load diagrams

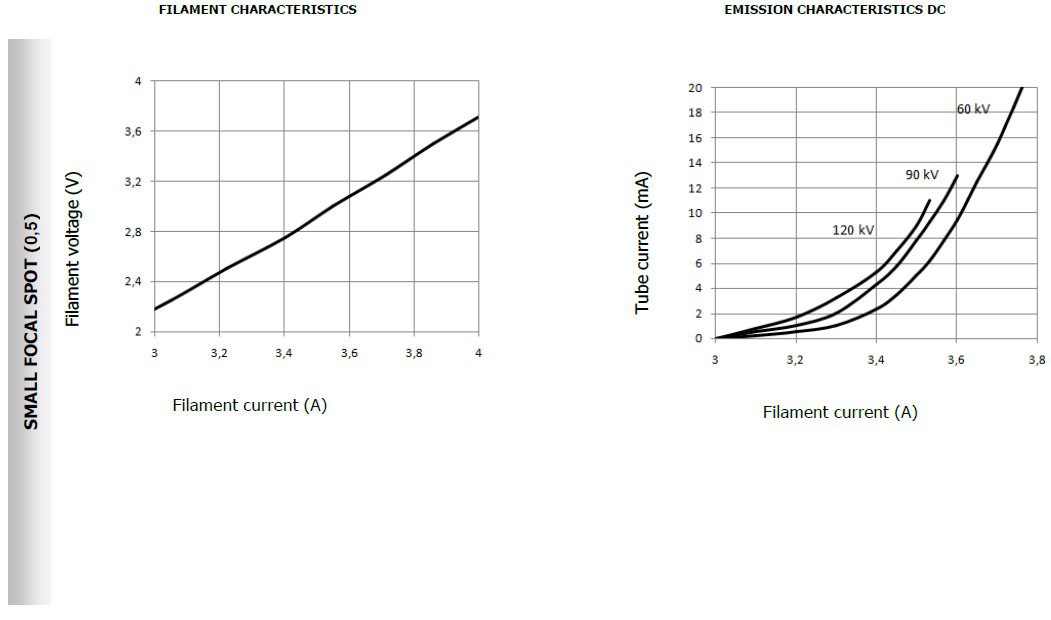

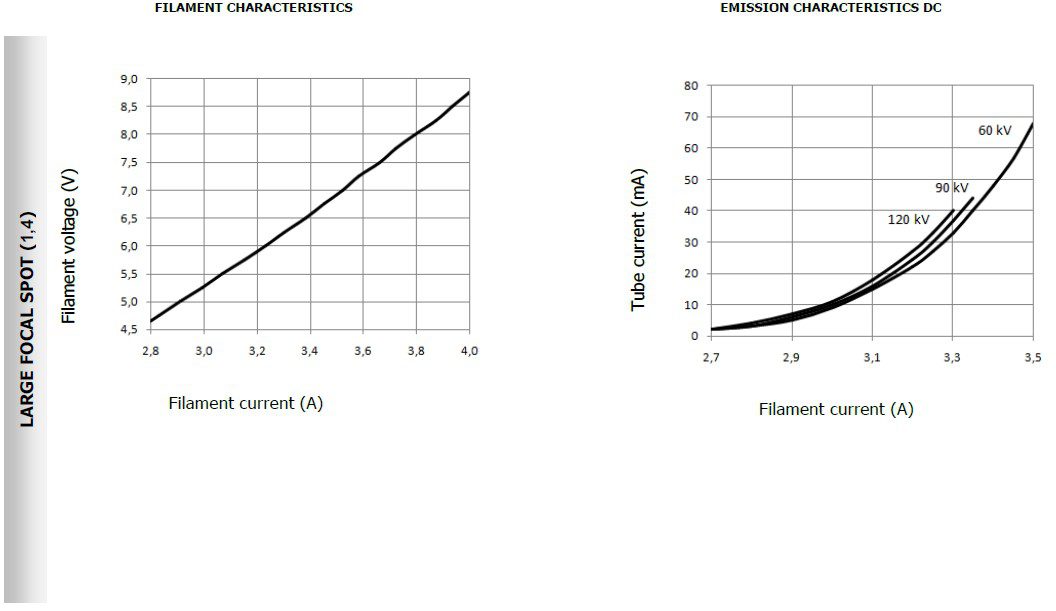

Filament and emission characteristics
