OX/110-1

Description and datas

kV: 110Large Focal Spot: 1.5Target Angle: 19
Anode heat Capacity: 30000Nominal Input Power large: 2200Max Dissipation Rate: 250
Max Diameter: 50Max Length: 155Filament Current (Large): 4.0
Filament Voltage (Large): 5.5
kV: 110Large Focal Spot: 1.5
Target Angle: 19Anode heat Capacity: 30000
Nominal Input Power large: 2200Max Dissipation Rate: 250
Max Diameter: 50Max Length: 155
Filament Current (Large): 4.0Filament Voltage (Large): 5.5
kV: 110
Large Focal Spot: 1.5
Target Angle: 19
Anode heat Capacity: 30000
Nominal Input Power large: 2200
Max Dissipation Rate: 250
Max Diameter: 50
Max Length: 155
Filament Current (Large): 4.0
Filament Voltage (Large): 5.5
OX 110-1 EnglishOX 110-1 ItalianoOX 110-1 French

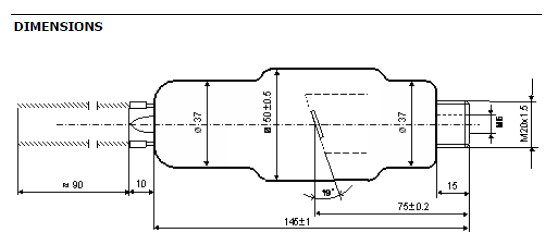

Dimensions and connections

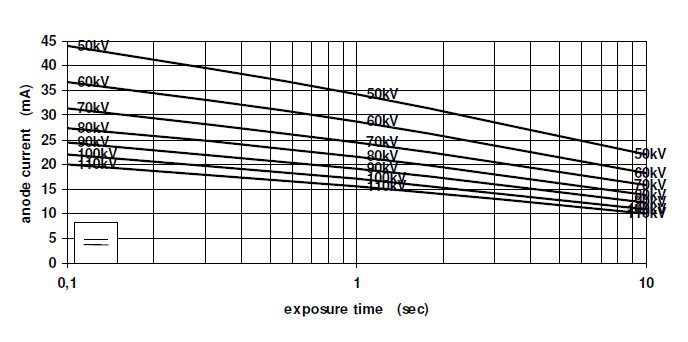

Maximum DC load diagrams

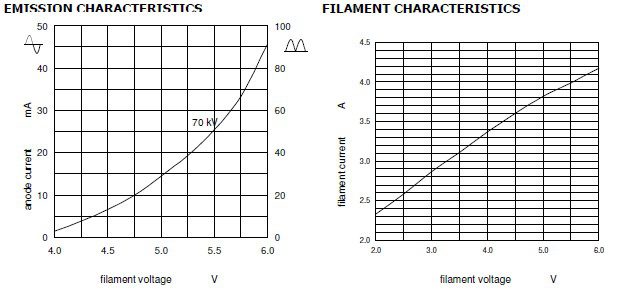

Filament and emission characteristics
