OX/110-15

Description and datas

kV: 120Small focal spot: 0.6Large Focal Spot: 1.8
Target Angle: 15Anode heat Capacity: 30000Nominal Input Power small: 1100
Nominal Input Power large: 5300Max Dissipation Rate: 270Max Diameter: 50
Max Length: 153Filament Current (Large): 4.0Filament Voltage (Large): 8.0
Filament Current (Small): 4.0Filament Voltage (Small): 3.0
kV: 120Small focal spot: 0.6
Large Focal Spot: 1.8Target Angle: 15
Anode heat Capacity: 30000Nominal Input Power small: 1100
Nominal Input Power large: 5300Max Dissipation Rate: 270
Max Diameter: 50Max Length: 153
Filament Current (Large): 4.0Filament Voltage (Large): 8.0
Filament Current (Small): 4.0Filament Voltage (Small): 3.0
kV: 120
Small focal spot: 0.6
Large Focal Spot: 1.8
Target Angle: 15
Anode heat Capacity: 30000
Nominal Input Power small: 1100
Nominal Input Power large: 5300
Max Dissipation Rate: 270
Max Diameter: 50
Max Length: 153
Filament Current (Large): 4.0
Filament Voltage (Large): 8.0
Filament Current (Small): 4.0
Filament Voltage (Small): 3.0
OX 110-15 rev.O EnglishOX 110-15 rev.O FrenchOX 110-15 rev.O Italiano

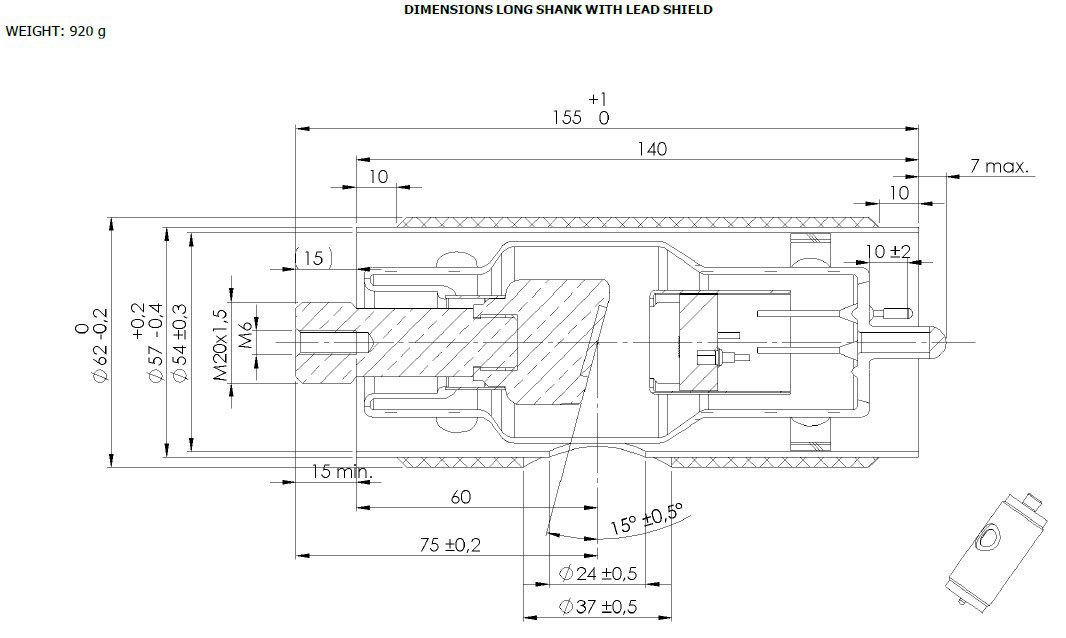

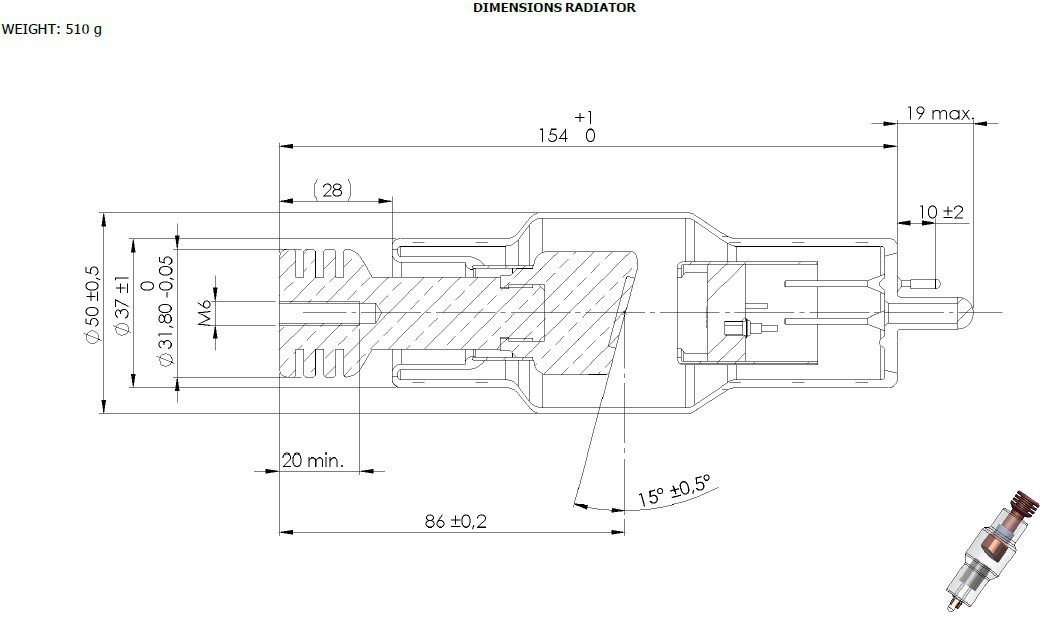

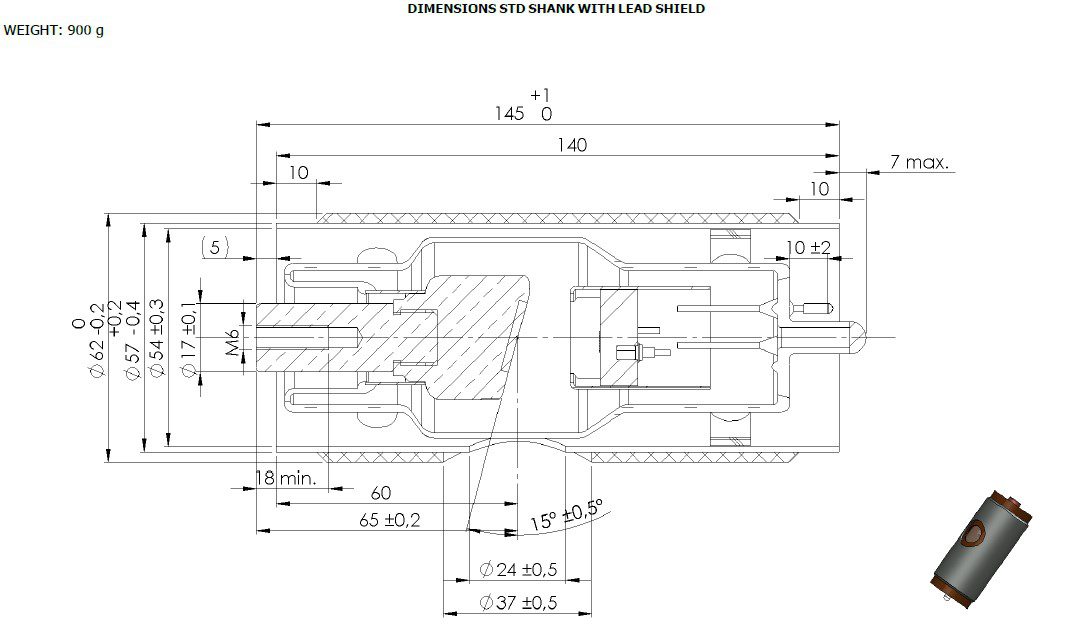

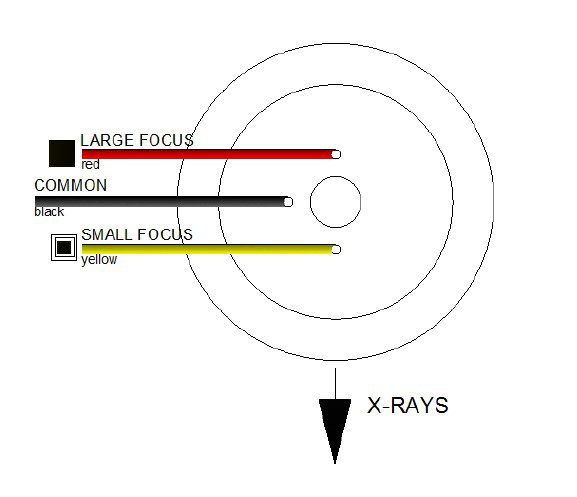

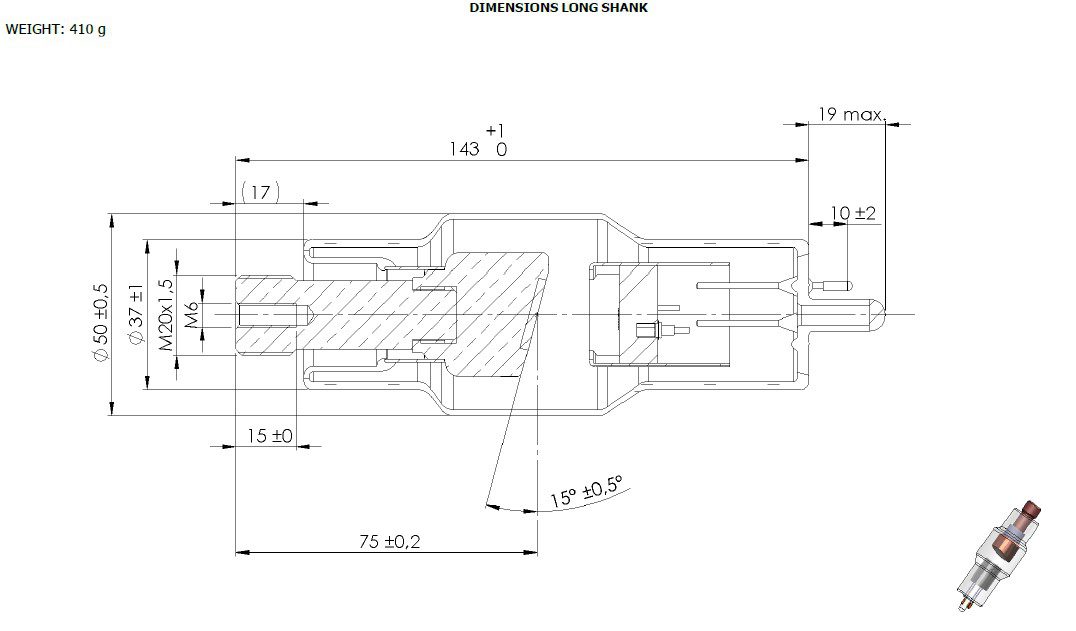

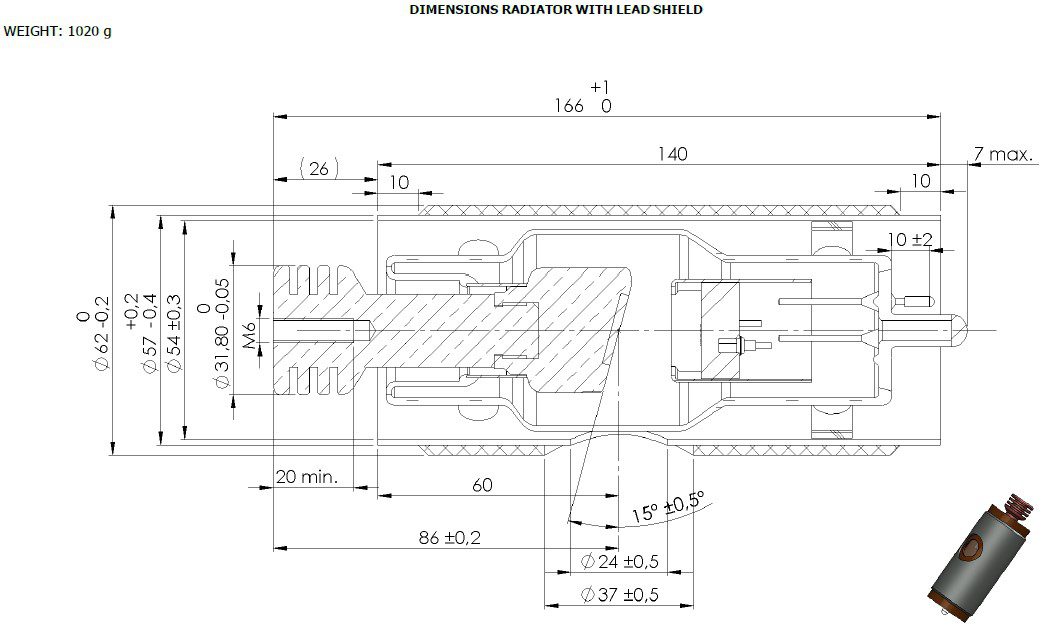

Dimensions and connections

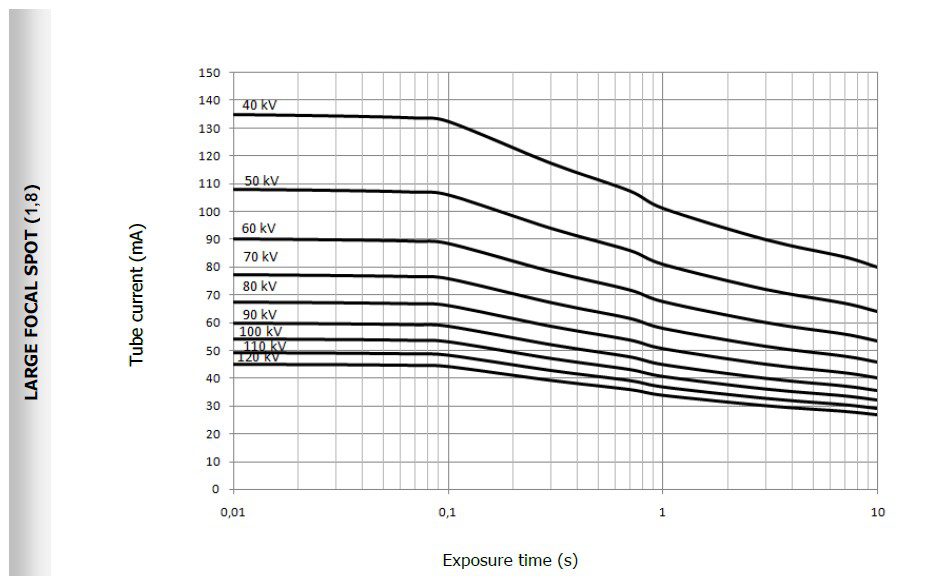

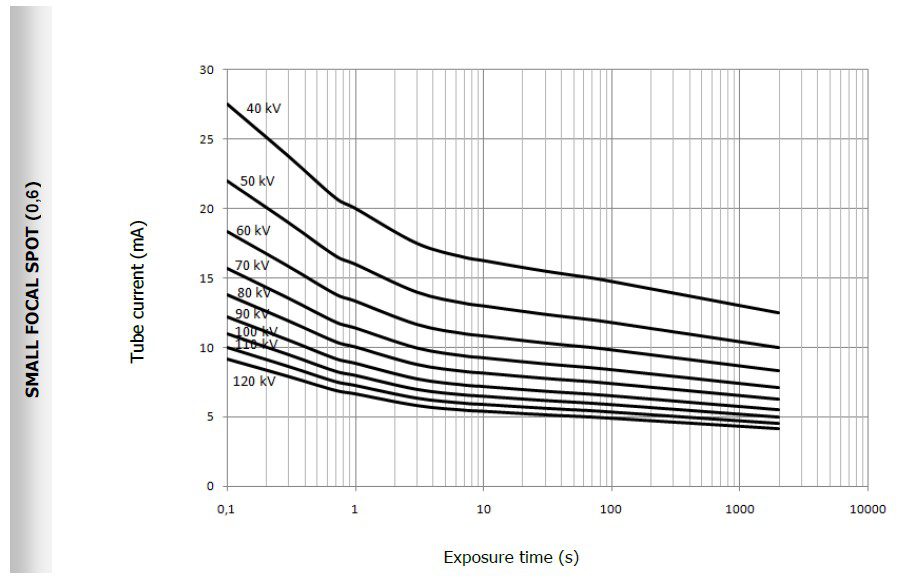

Maximum DC load diagrams

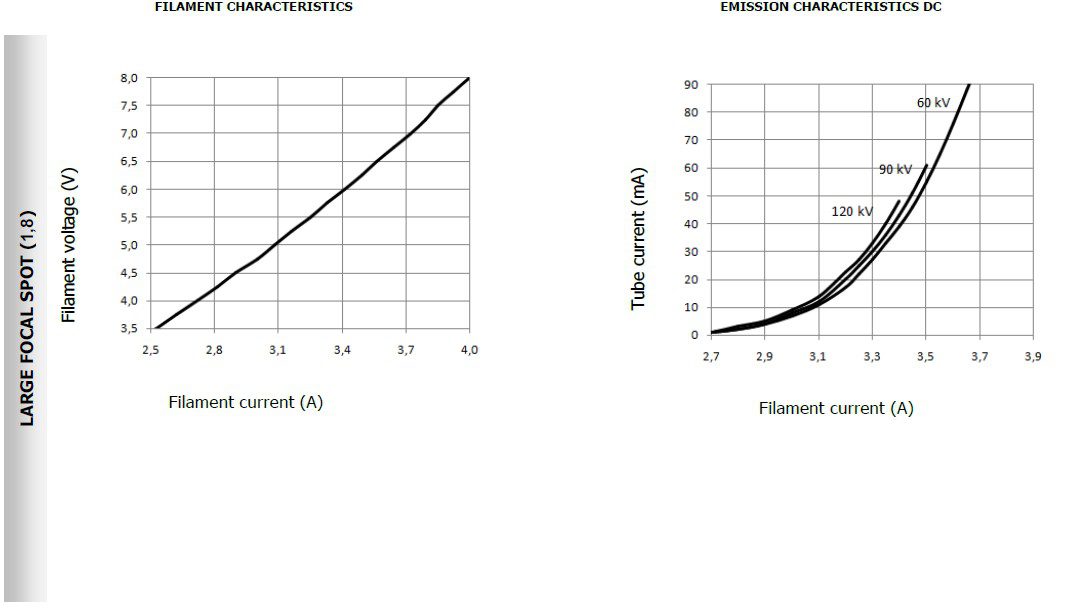

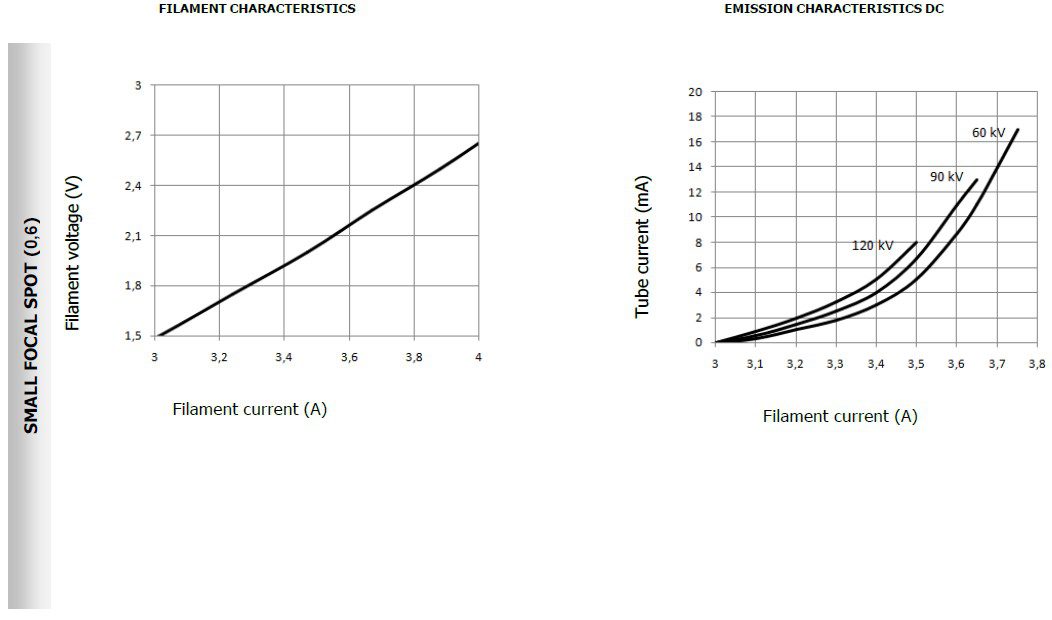

Filament and emission characteristics
