OX/110-2

Description and datas

kV: 110Small focal spot: 0.5Large Focal Spot: 1.5
Target Angle: 15Anode heat Capacity: 30000Nominal Input Power small: 1700
Nominal Input Power large: 6000Max Dissipation Rate: 270Max Diameter: 50
Max Length: 183Filament Current (Large): 5.5Filament Voltage (Large): 9.0
Filament Current (Small): 4.5Filament Voltage (Small): 4.0
kV: 110Small focal spot: 0.5
Large Focal Spot: 1.5Target Angle: 15
Anode heat Capacity: 30000Nominal Input Power small: 1700
Nominal Input Power large: 6000Max Dissipation Rate: 270
Max Diameter: 50Max Length: 183
Filament Current (Large): 5.5Filament Voltage (Large): 9.0
Filament Current (Small): 4.5Filament Voltage (Small): 4.0
kV: 110
Small focal spot: 0.5
Large Focal Spot: 1.5
Target Angle: 15
Anode heat Capacity: 30000
Nominal Input Power small: 1700
Nominal Input Power large: 6000
Max Dissipation Rate: 270
Max Diameter: 50
Max Length: 183
Filament Current (Large): 5.5
Filament Voltage (Large): 9.0
Filament Current (Small): 4.5
Filament Voltage (Small): 4.0
OX 110-2 EnglishOX 110-2 FrenchOX 110-2 Italiano

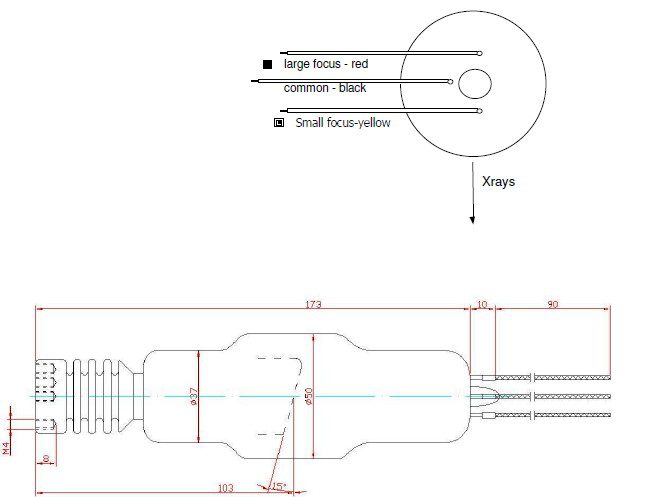

Dimensions and connections

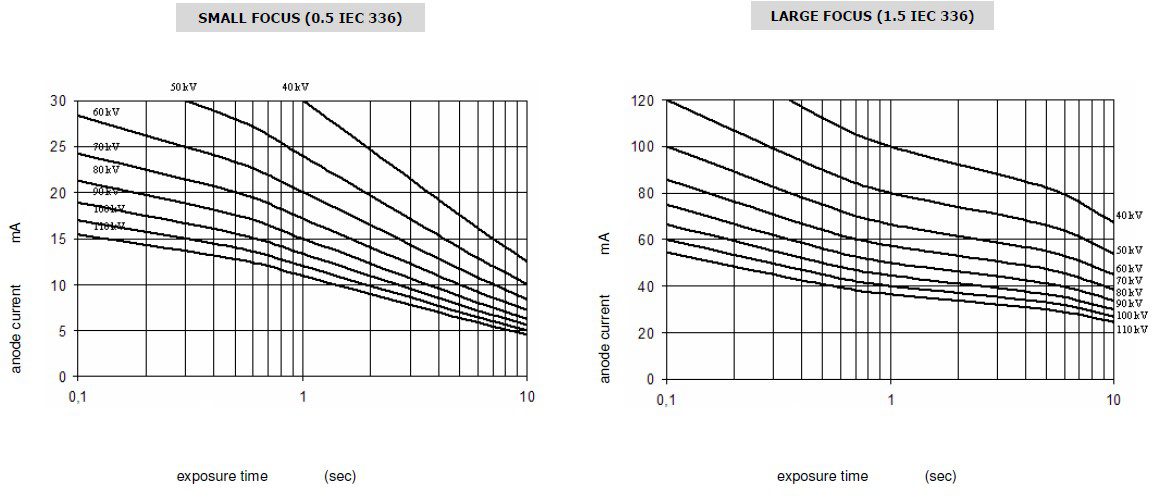

Maximum DC load diagrams

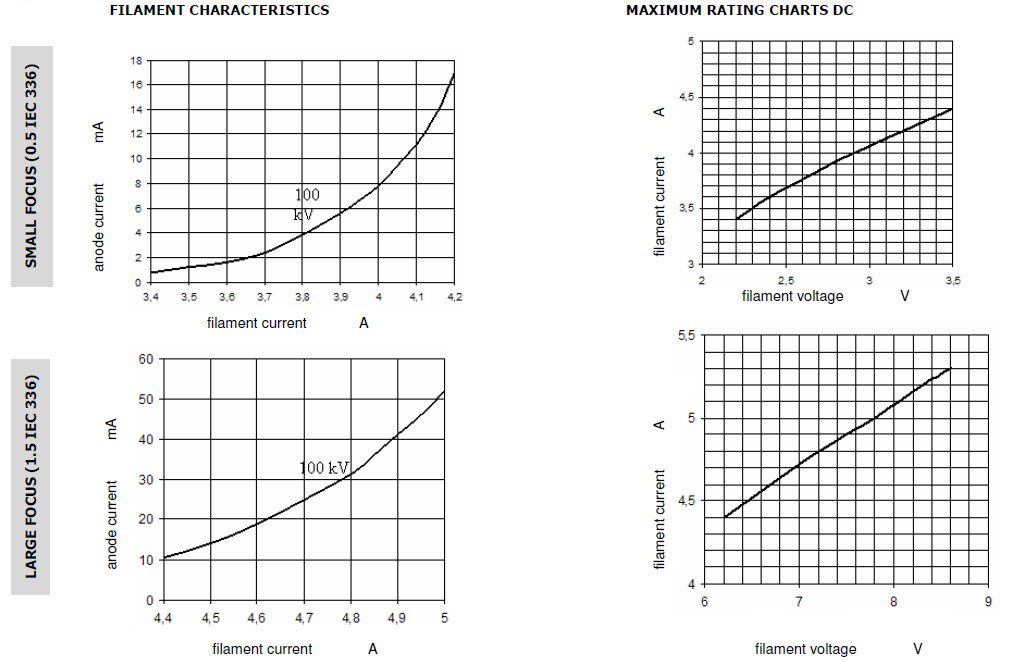

Filament and emission characteristics
