OX/110-3

Description and datas

kV: 120Small focal spot: 0.5Large Focal Spot: 1.5
Target Angle: 15Anode heat Capacity: 30000Nominal Input Power small: 1200
Nominal Input Power large: 5500Max Dissipation Rate: 270Max Diameter: 50
Max Length: 149Filament Current (Large): 5.5Filament Voltage (Large): 9.0
Filament Current (Small): 4.5Filament Voltage (Small): 4.0
kV: 120Small focal spot: 0.5
Large Focal Spot: 1.5Target Angle: 15
Anode heat Capacity: 30000Nominal Input Power small: 1200
Nominal Input Power large: 5500Max Dissipation Rate: 270
Max Diameter: 50Max Length: 149
Filament Current (Large): 5.5Filament Voltage (Large): 9.0
Filament Current (Small): 4.5Filament Voltage (Small): 4.0
kV: 120
Small focal spot: 0.5
Large Focal Spot: 1.5
Target Angle: 15
Anode heat Capacity: 30000
Nominal Input Power small: 1200
Nominal Input Power large: 5500
Max Dissipation Rate: 270
Max Diameter: 50
Max Length: 149
Filament Current (Large): 5.5
Filament Voltage (Large): 9.0
Filament Current (Small): 4.5
Filament Voltage (Small): 4.0
OX 110-3 rev.B EngOX 110-3 rev.B FraOX 110-3 rev.B Ita

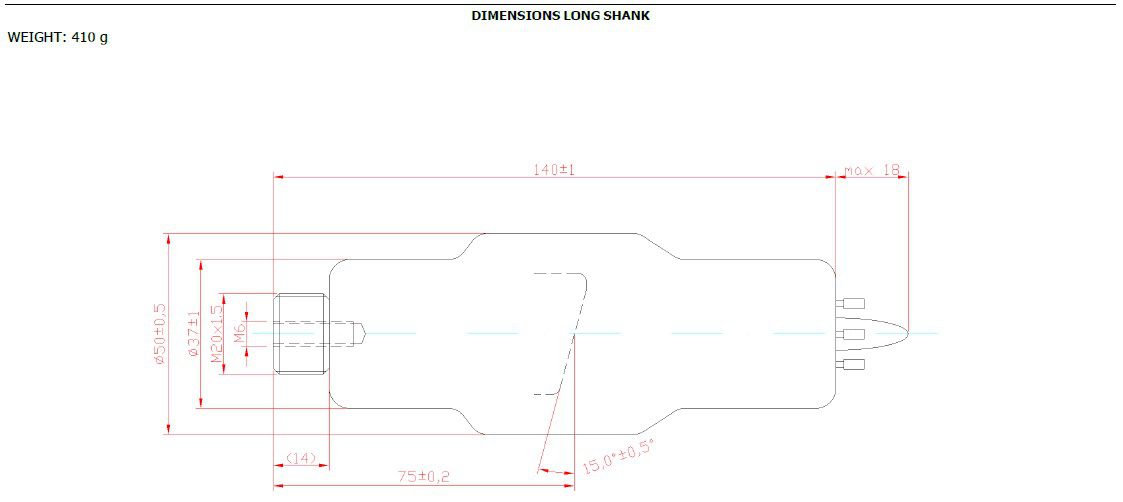

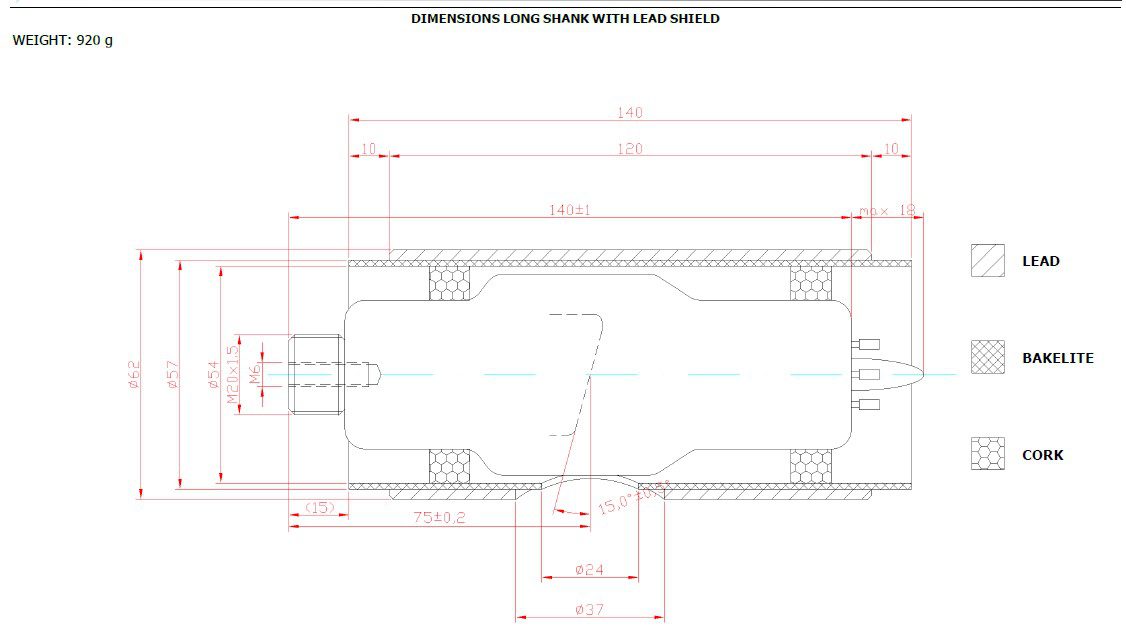

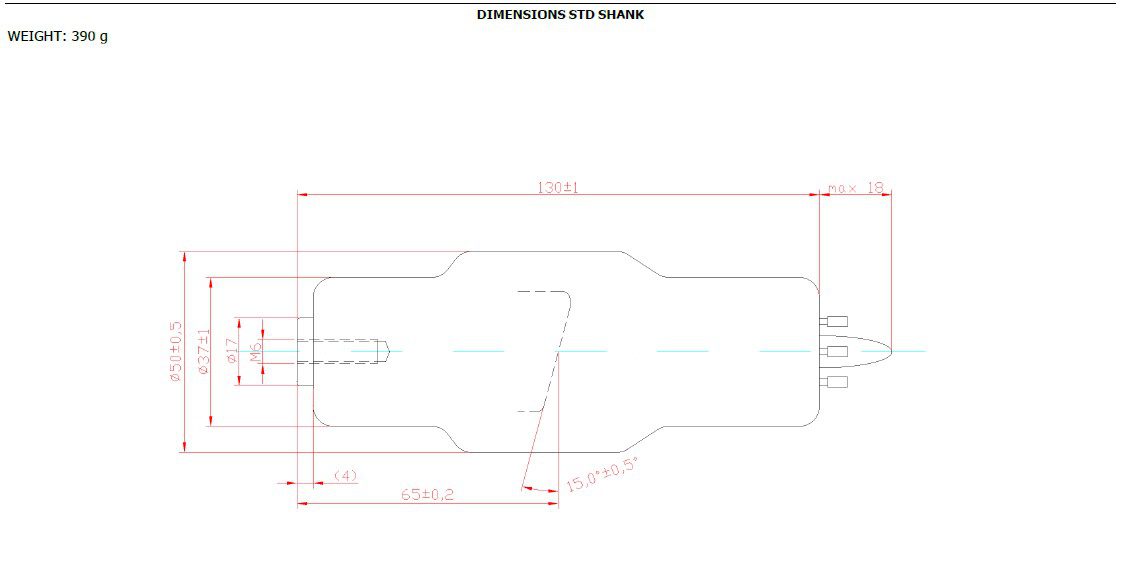

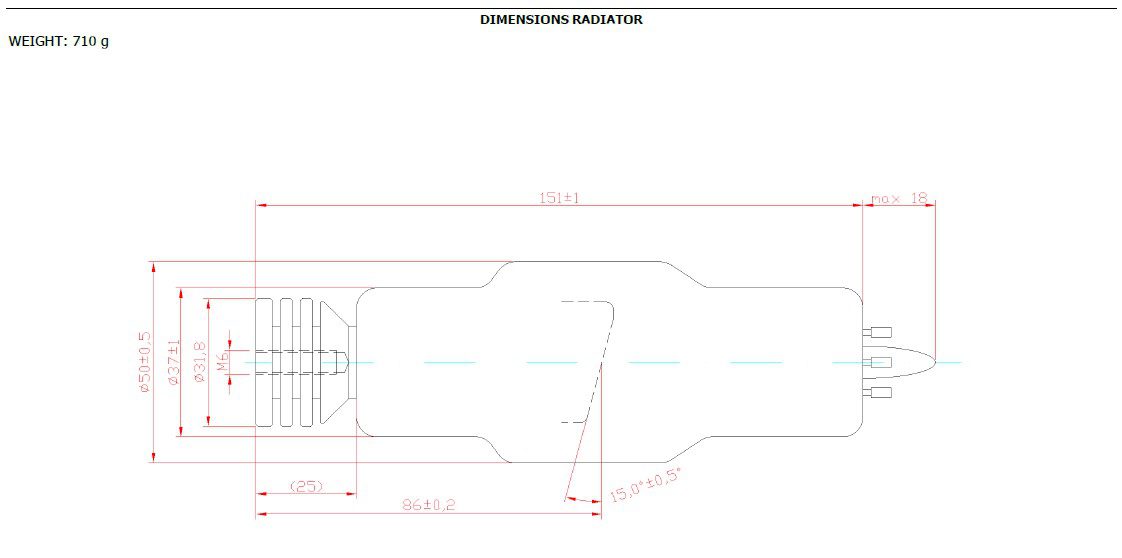

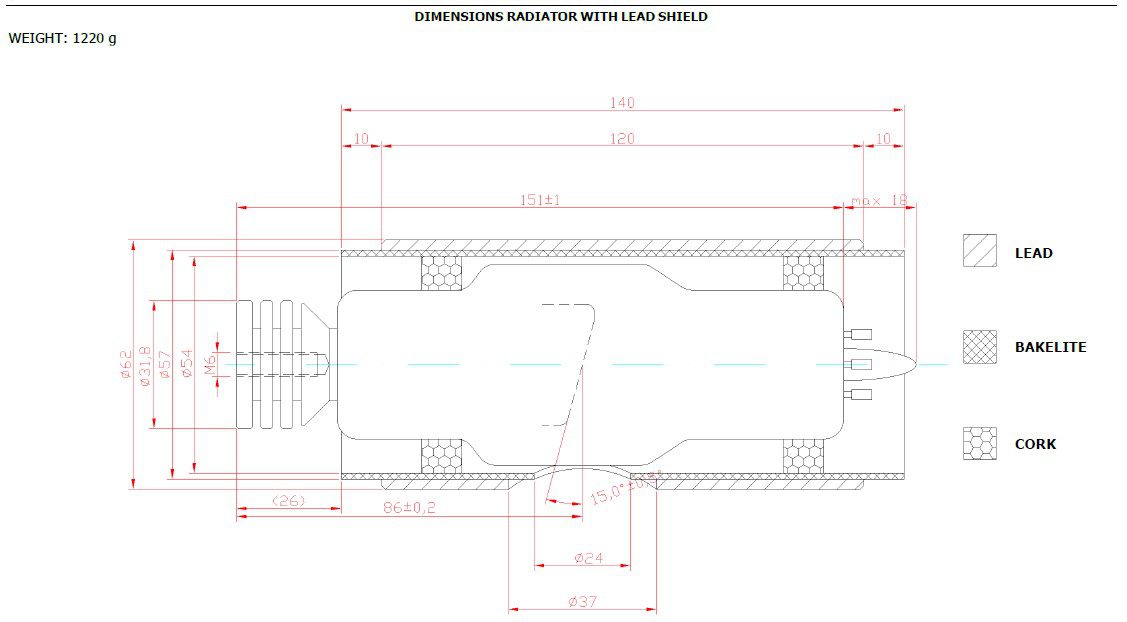

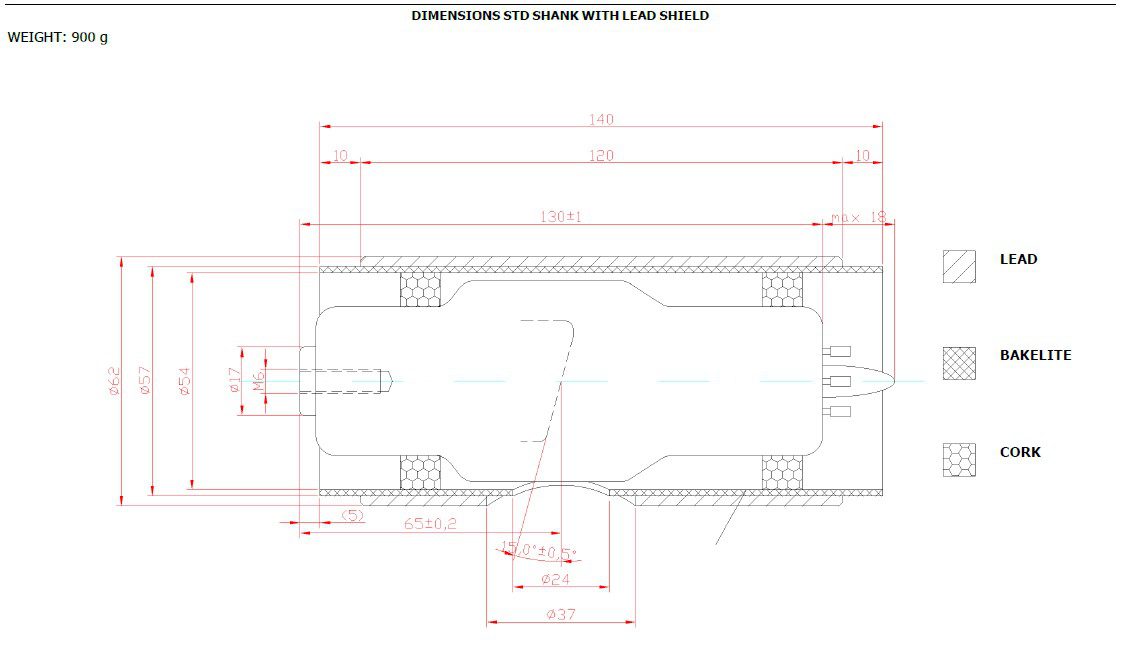

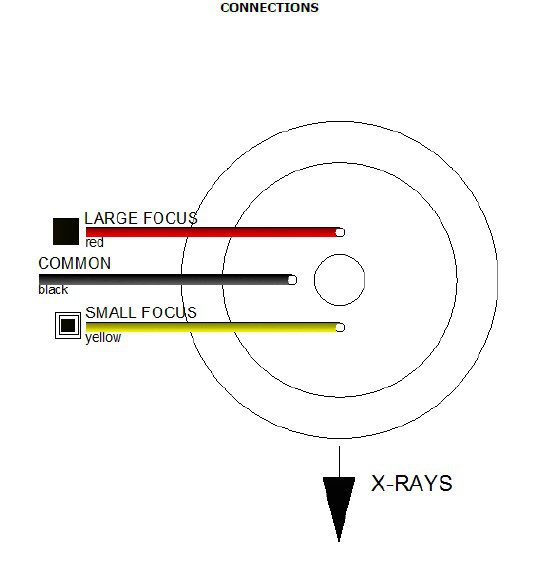

Dimensions and connections

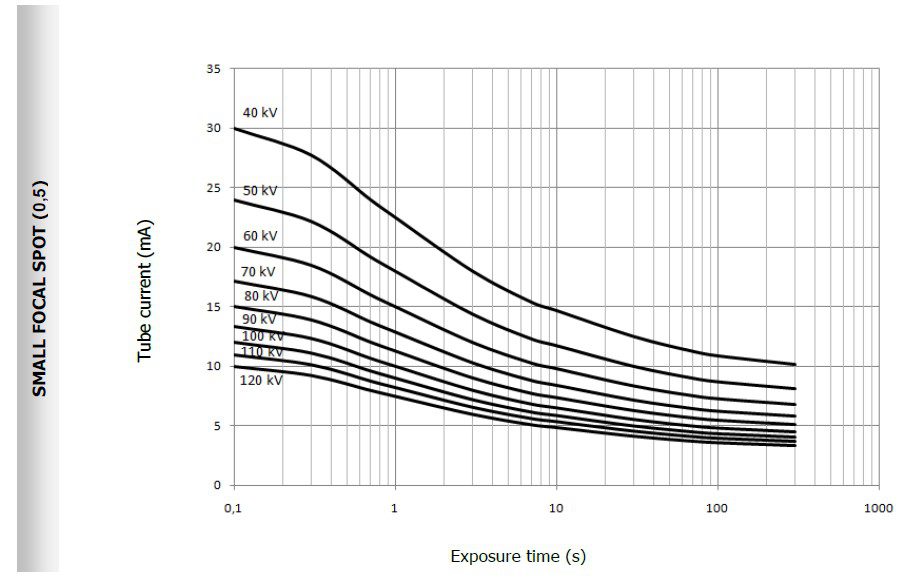

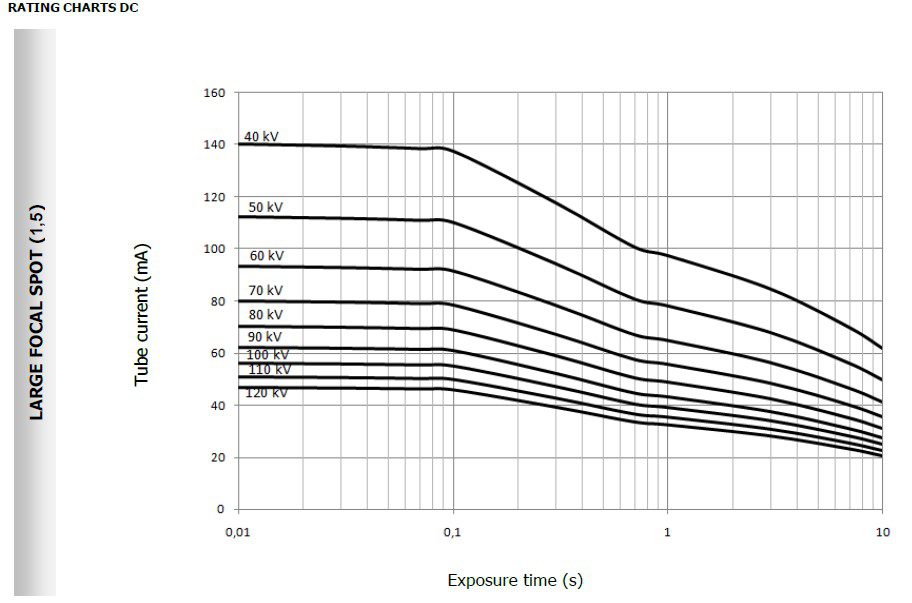

Maximum DC load diagrams

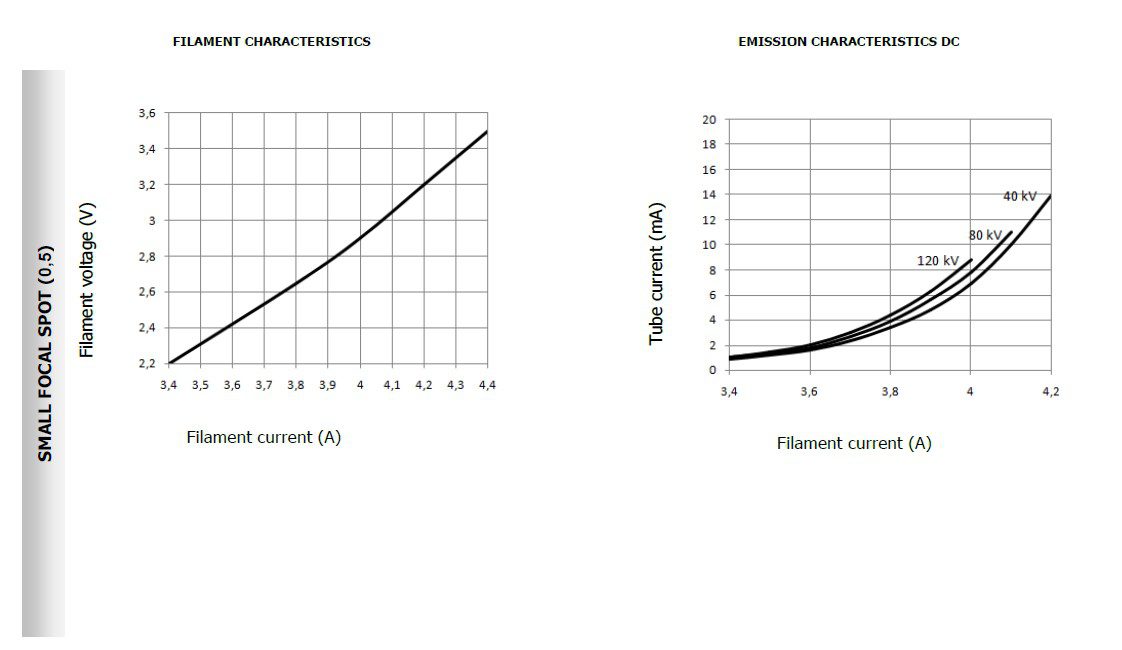

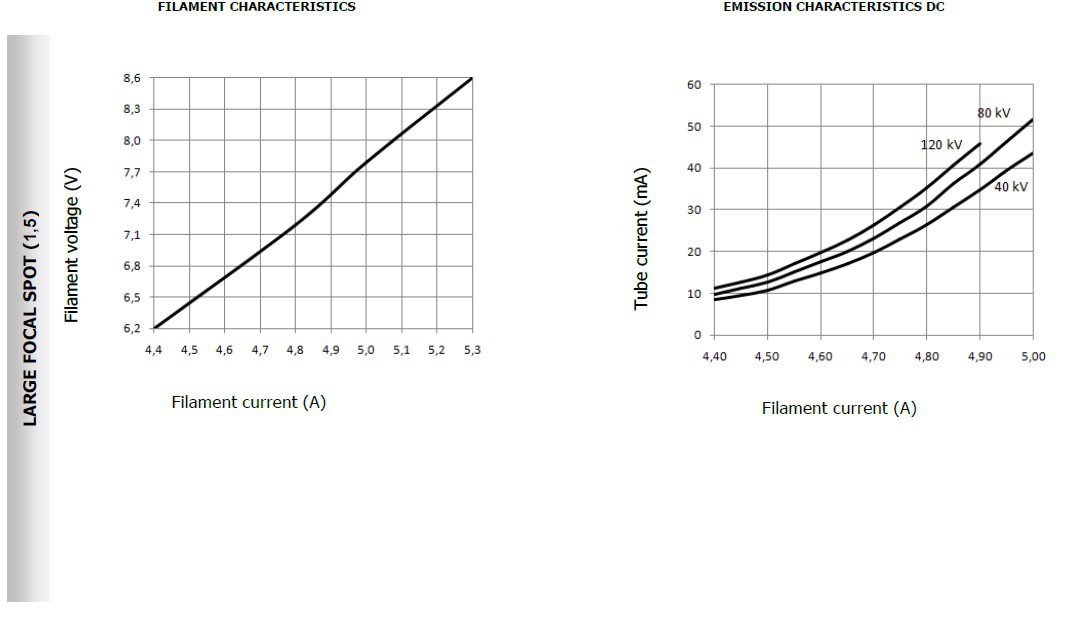

Filament and emission characteristics
