OX/110-5

Description and datas

kV: 120Small focal spot: 0.5Large Focal Spot: 1.5
Target Angle: 12Anode heat Capacity: 30000Nominal Input Power small: 780
Nominal Input Power large: 4200Max Dissipation Rate: 270Max Diameter: 50
Max Length: 155Filament Current (Large): 4.5Filament Voltage (Large): 8.0
Filament Current (Small): 4.0Filament Voltage (Small): 4.0
kV: 120Small focal spot: 0.5
Large Focal Spot: 1.5Target Angle: 12
Anode heat Capacity: 30000Nominal Input Power small: 780
Nominal Input Power large: 4200Max Dissipation Rate: 270
Max Diameter: 50Max Length: 155
Filament Current (Large): 4.5Filament Voltage (Large): 8.0
Filament Current (Small): 4.0Filament Voltage (Small): 4.0
kV: 120
Small focal spot: 0.5
Large Focal Spot: 1.5
Target Angle: 12
Anode heat Capacity: 30000
Nominal Input Power small: 780
Nominal Input Power large: 4200
Max Dissipation Rate: 270
Max Diameter: 50
Max Length: 155
Filament Current (Large): 4.5
Filament Voltage (Large): 8.0
Filament Current (Small): 4.0
Filament Voltage (Small): 4.0
OX 110-5 EnglishOX 110-5 FrenchOX 110-5 Italiano

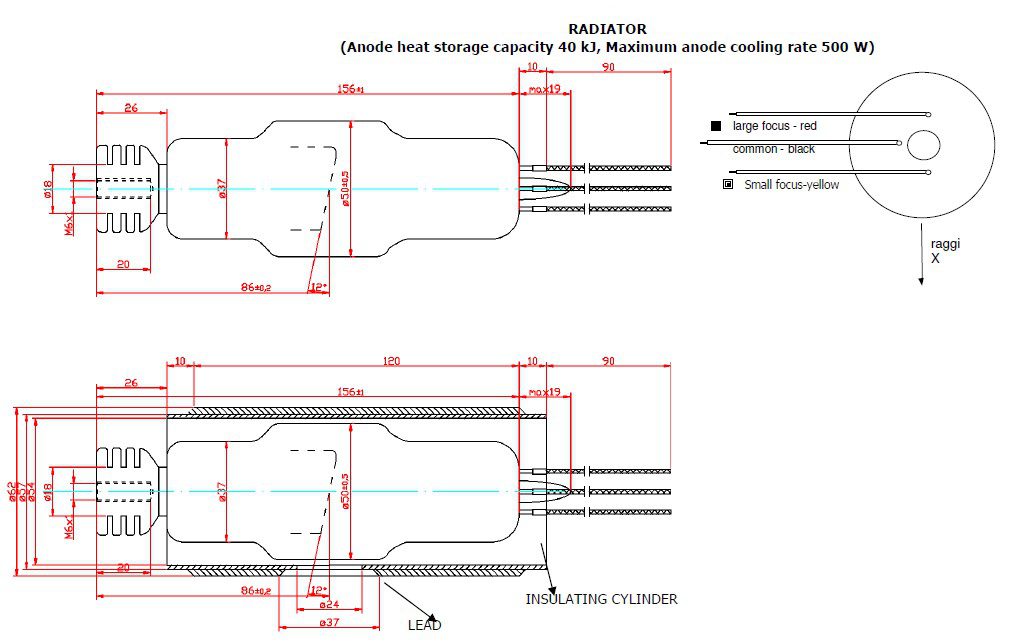

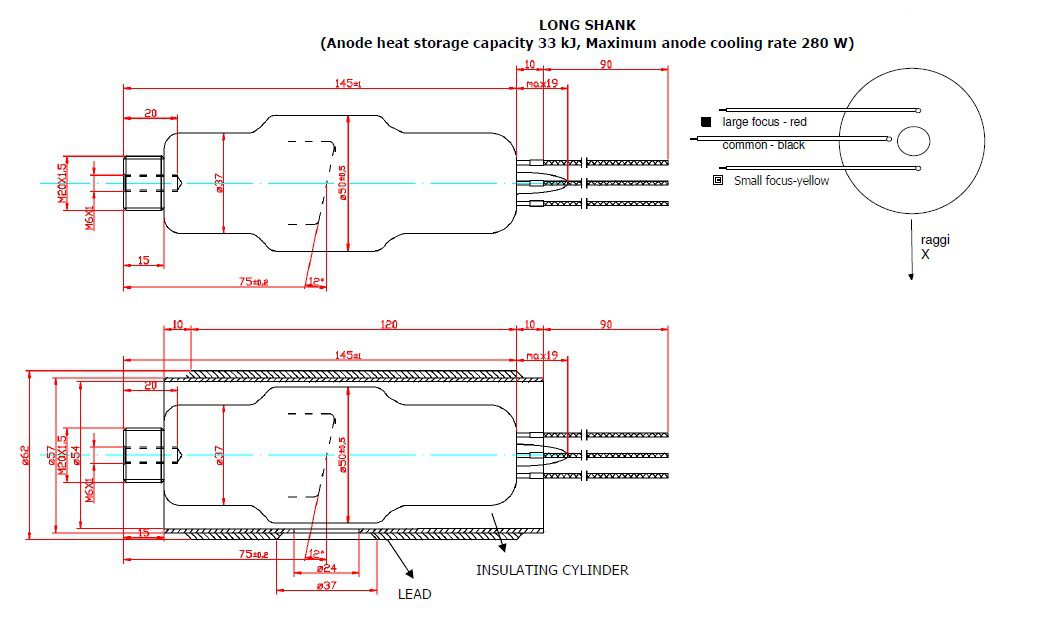

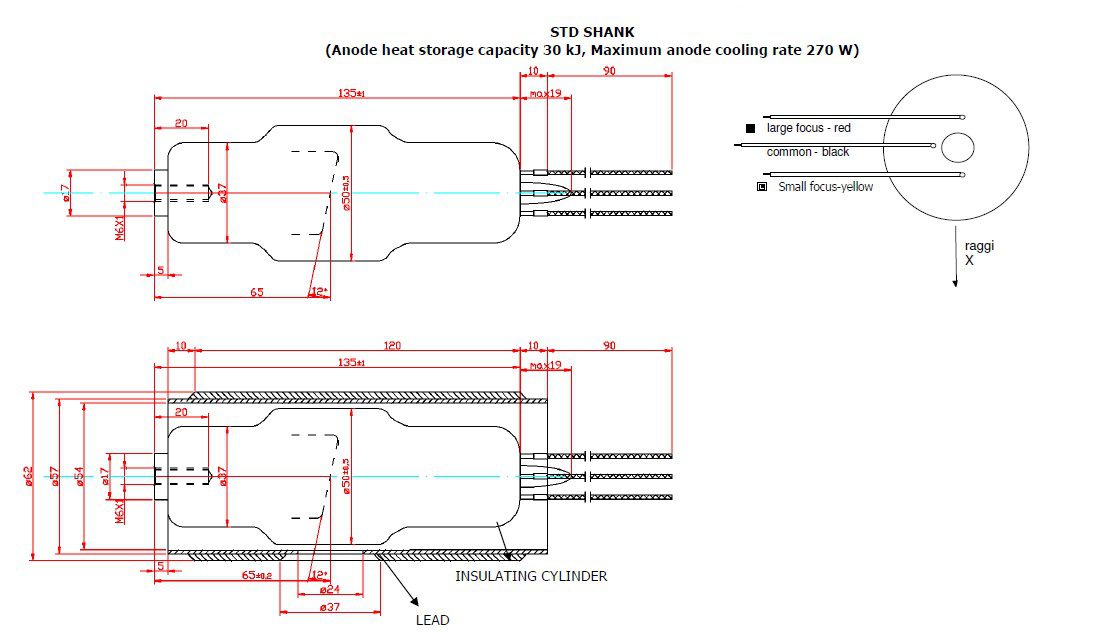

Dimensions and connections

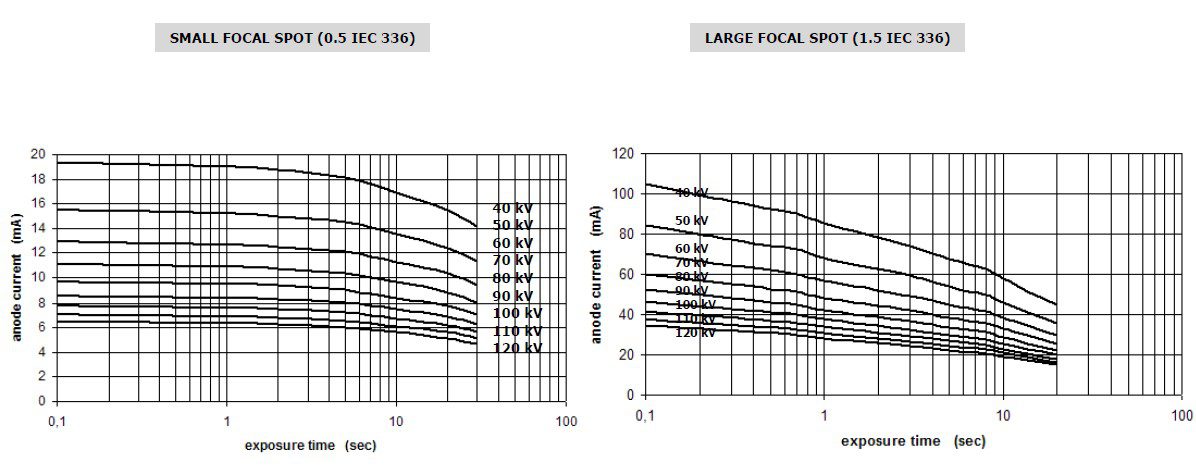

Maximum DC load diagrams

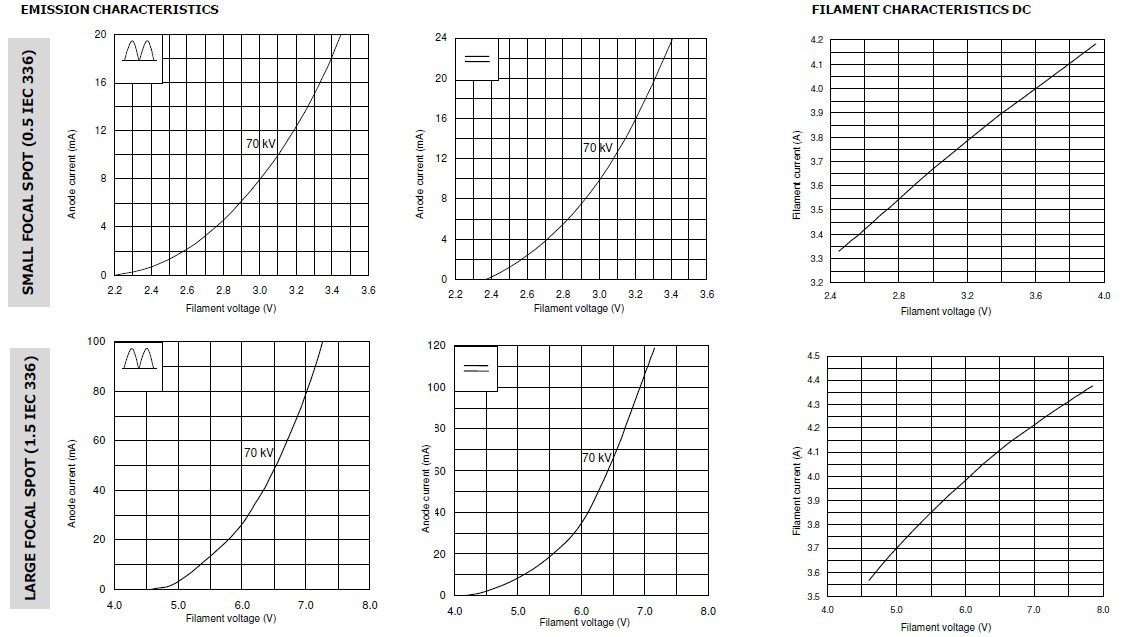

Filament and emission characteristics
