OX/110

Description and datas

kV: 120Small focal spot: 0.5Large Focal Spot: 1.5
Target Angle: 15Anode heat Capacity: 30000Nominal Input Power small: 800
Nominal Input Power large: 4000Max Dissipation Rate: 270Max Diameter: 50
Max Length: 145Filament Current (Large): 5.2Filament Voltage (Large): 7.6
Filament Current (Small): 2.9Filament Voltage (Small): 3.3
kV: 120Small focal spot: 0.5
Large Focal Spot: 1.5Target Angle: 15
Anode heat Capacity: 30000Nominal Input Power small: 800
Nominal Input Power large: 4000Max Dissipation Rate: 270
Max Diameter: 50Max Length: 145
Filament Current (Large): 5.2Filament Voltage (Large): 7.6
Filament Current (Small): 2.9Filament Voltage (Small): 3.3
kV: 120
Small focal spot: 0.5
Large Focal Spot: 1.5
Target Angle: 15
Anode heat Capacity: 30000
Nominal Input Power small: 800
Nominal Input Power large: 4000
Max Dissipation Rate: 270
Max Diameter: 50
Max Length: 145
Filament Current (Large): 5.2
Filament Voltage (Large): 7.6
Filament Current (Small): 2.9
Filament Voltage (Small): 3.3
OX 110 EnglishOX 110 FrenchOX 110 Italiano

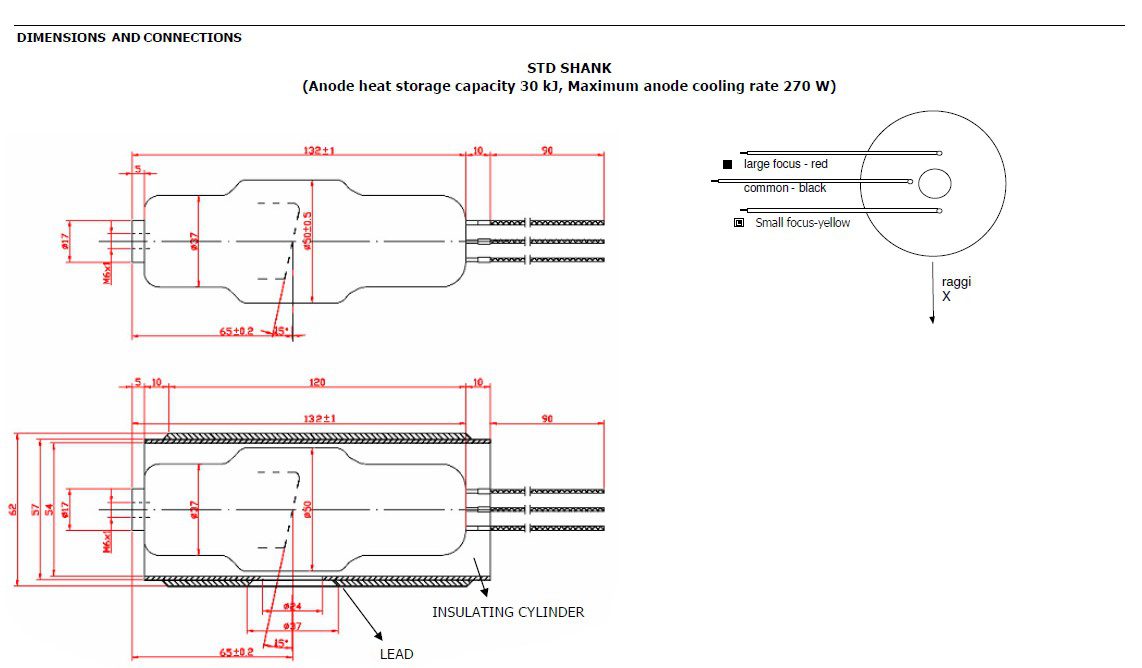

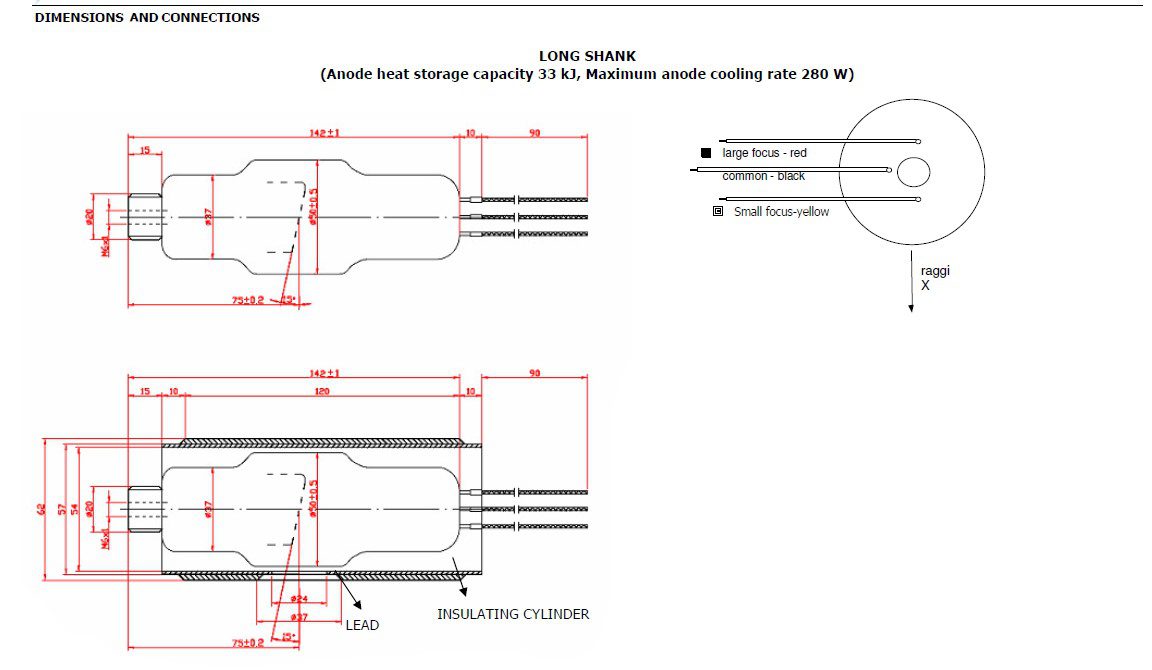

Dimensions and connections

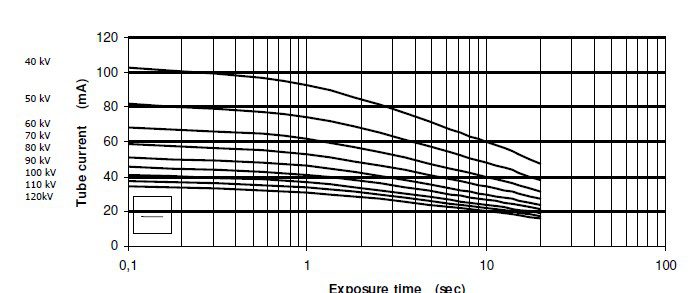

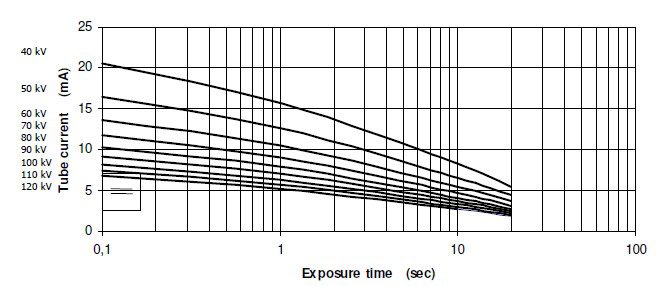

Maximum DC load diagrams

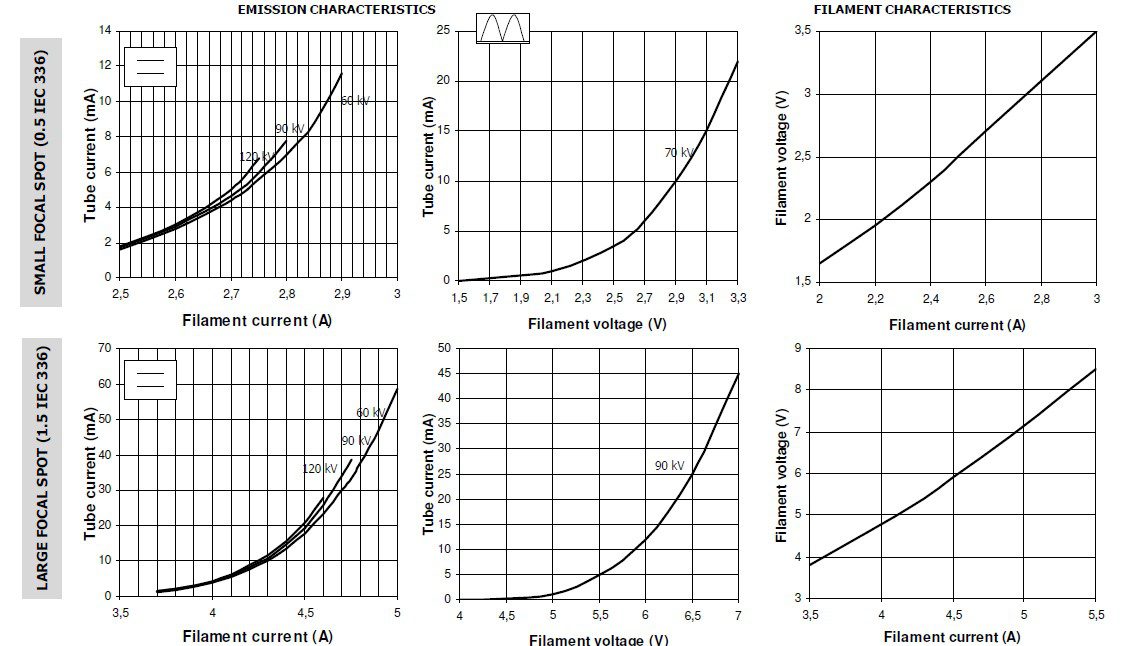

Filament and emission characteristics
