OX/115-05L

Description and datas

kV: 120Large Focal Spot: 0.5Target Angle: 15
Anode heat Capacity: 30000Nominal Input Power large: 1300Max Dissipation Rate: 270
Max Diameter: 50Max Length: 150Filament Current (Large): 4.0
Filament Voltage (Large): 3.5
kV: 120Large Focal Spot: 0.5
Target Angle: 15Anode heat Capacity: 30000
Nominal Input Power large: 1300Max Dissipation Rate: 270
Max Diameter: 50Max Length: 150
Filament Current (Large): 4.0Filament Voltage (Large): 3.5
kV: 120
Large Focal Spot: 0.5
Target Angle: 15
Anode heat Capacity: 30000
Nominal Input Power large: 1300
Max Dissipation Rate: 270
Max Diameter: 50
Max Length: 150
Filament Current (Large): 4.0
Filament Voltage (Large): 3.5
OX 115-05L rev.H EngOX 115-05L rev.H FraOX 115-05L rev.H Ita

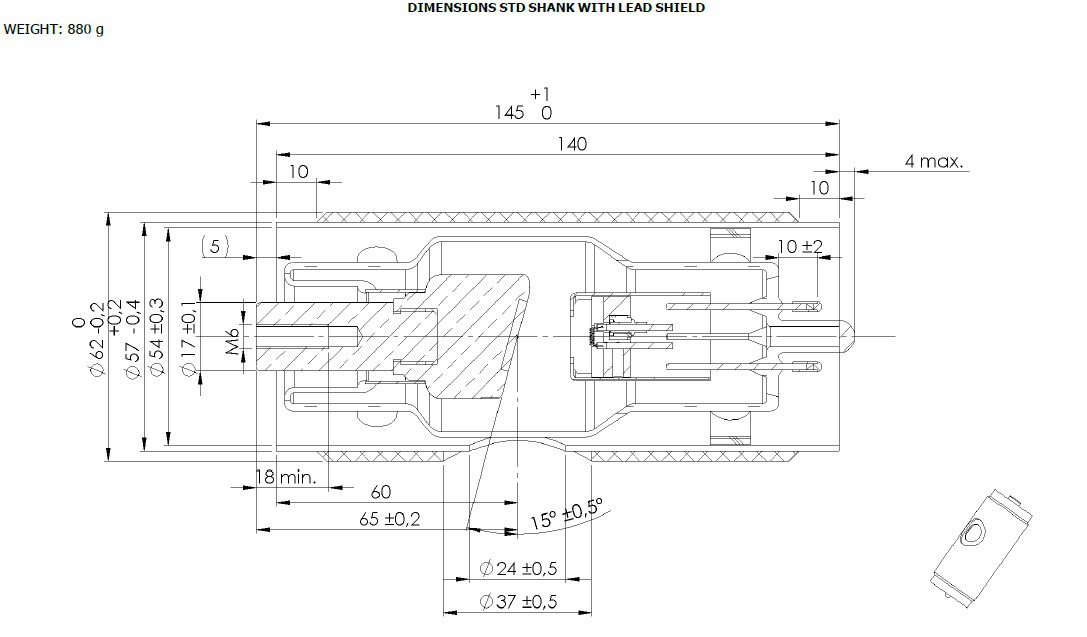

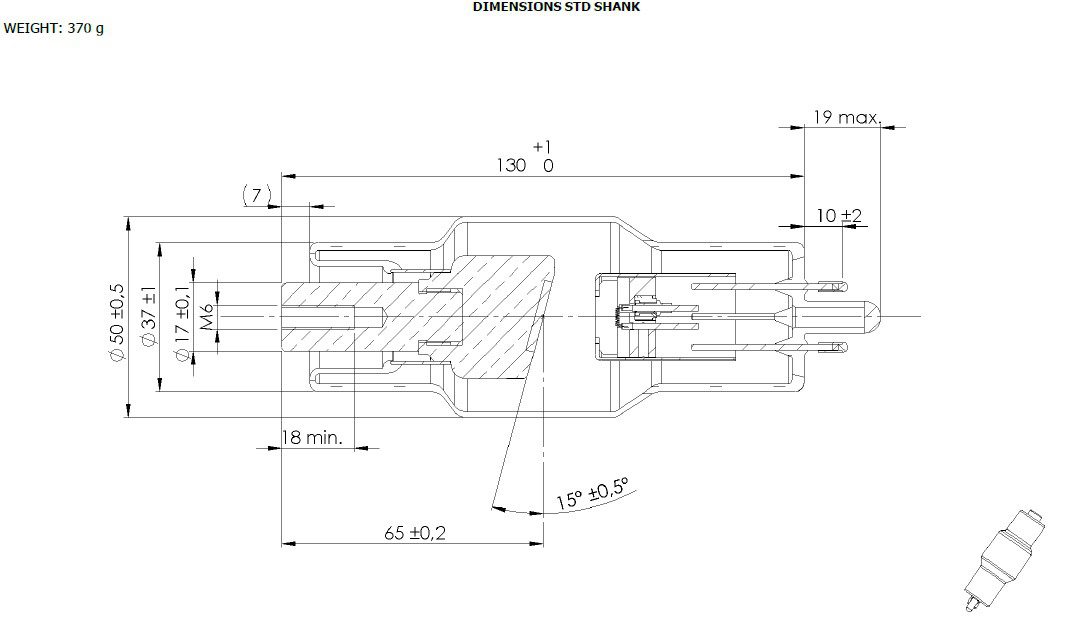

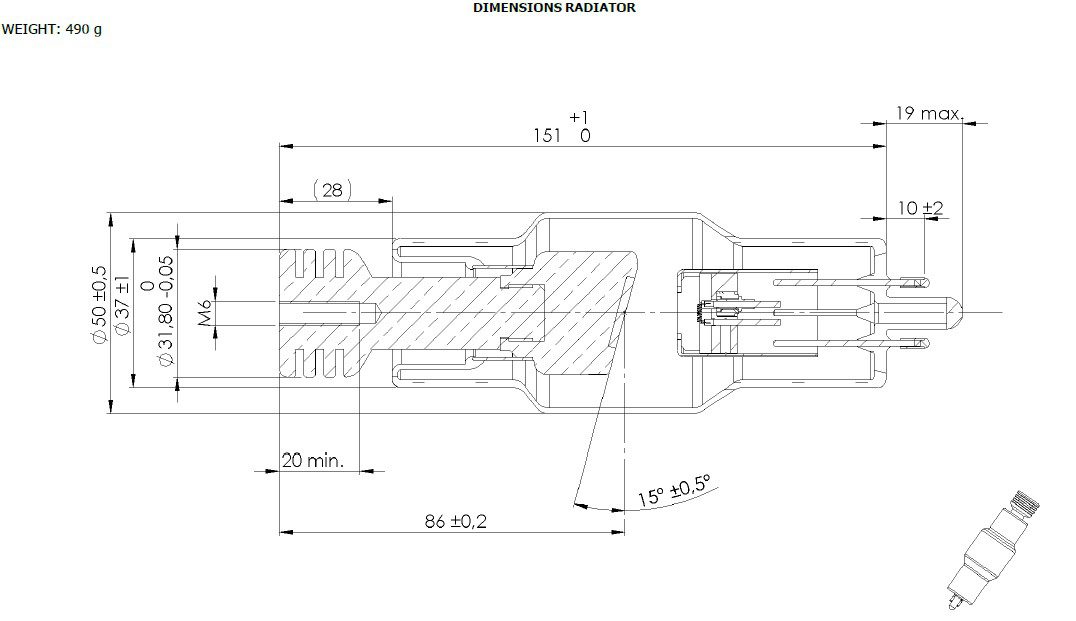

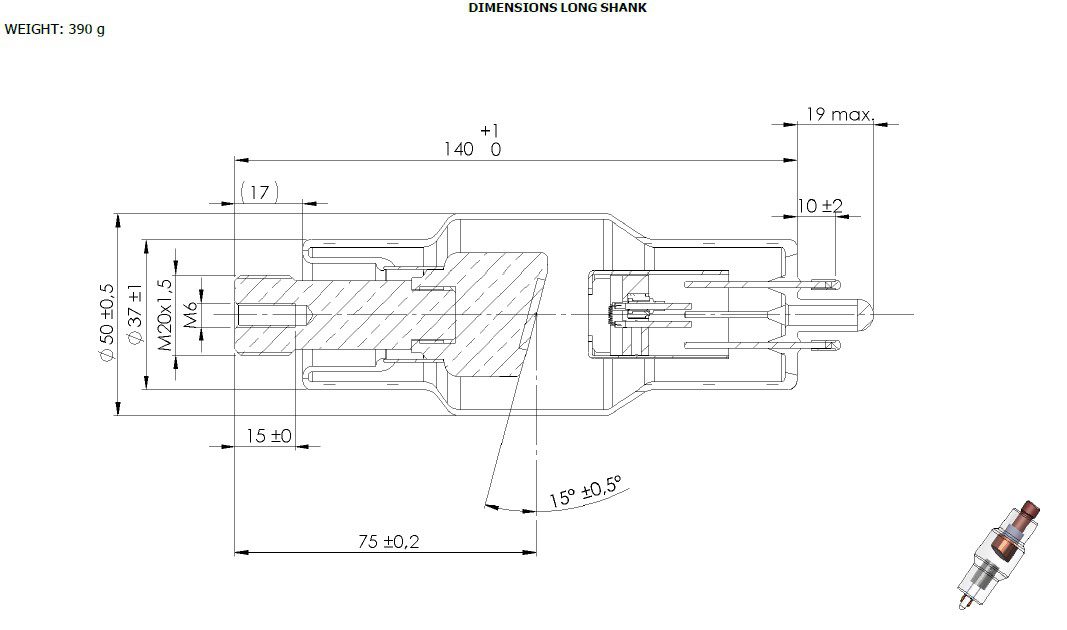

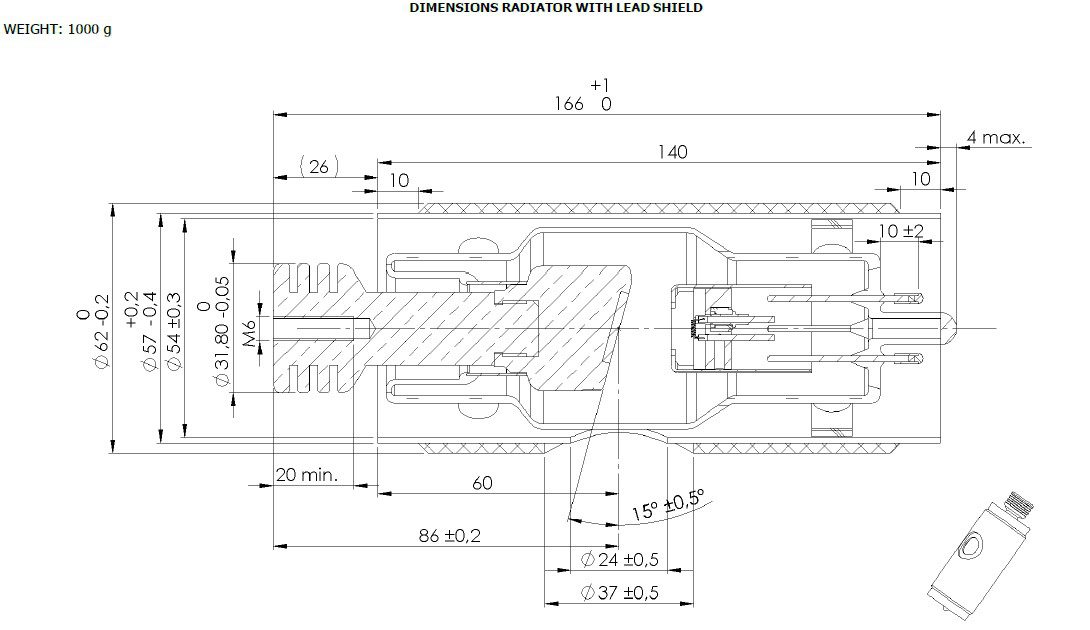

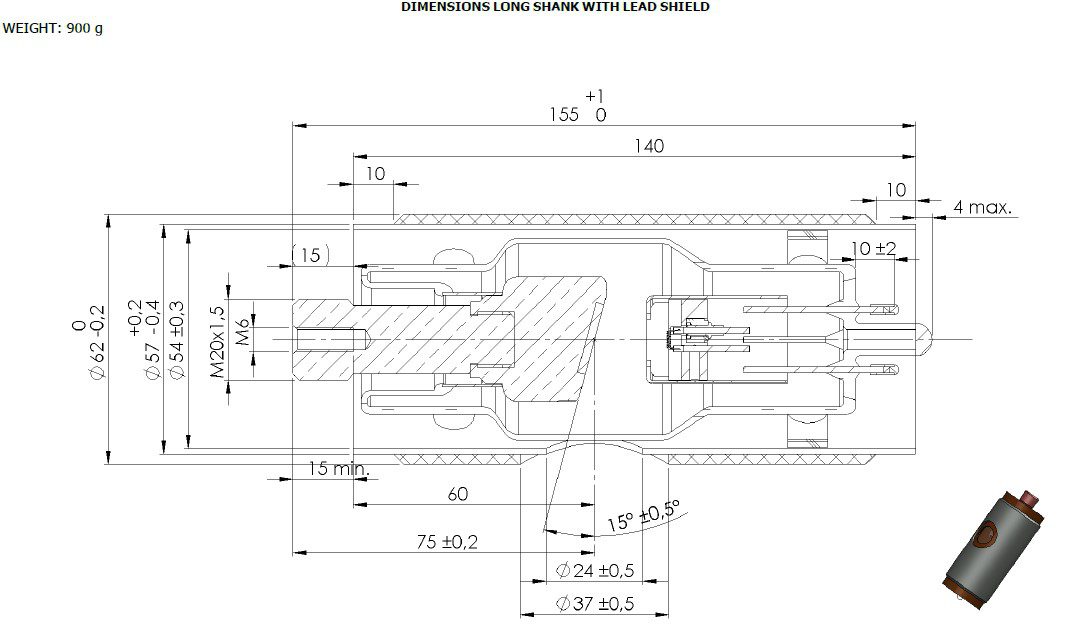

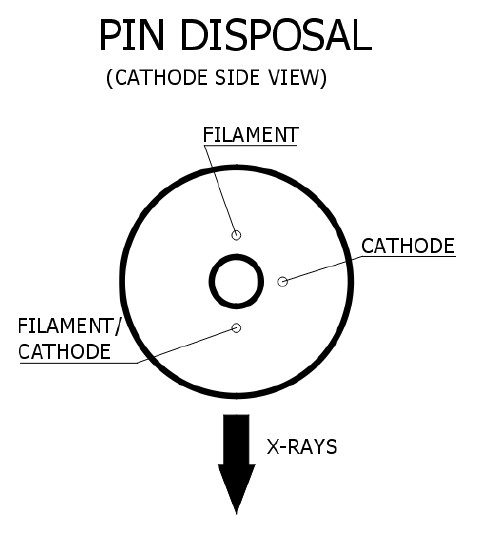

Dimensions and connections

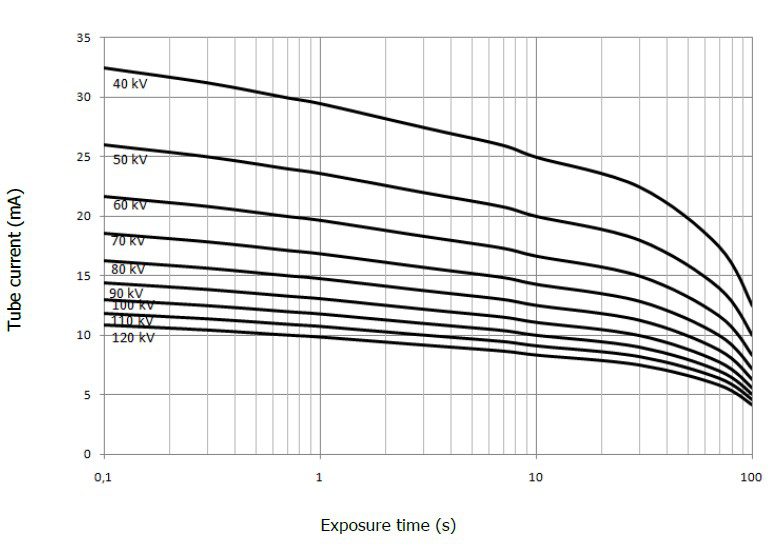

Maximum DC load diagrams

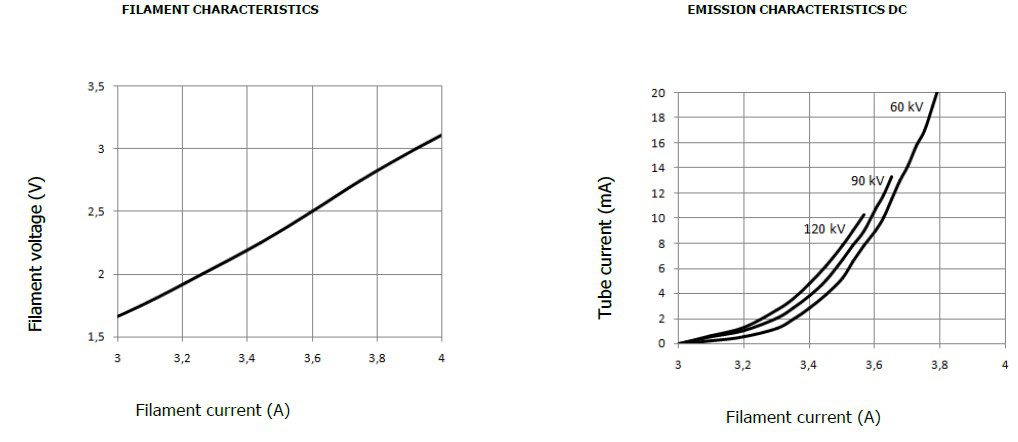

Filament and emission characteristics
