OX/120-0307

Description and datas

kV: 120Small focal spot: 0.3Large Focal Spot: 0.7
Target Angle: 12Anode heat Capacity: 33000Nominal Input Power small: 620
Nominal Input Power large: 1900Max Dissipation Rate: 280Max Diameter: 50
Max Length: 162Filament Current (Large): 3.7Filament Voltage (Large): 5.0
Filament Current (Small): 3.5Filament Voltage (Small): 3.0
kV: 120Small focal spot: 0.3
Large Focal Spot: 0.7Target Angle: 12
Anode heat Capacity: 33000Nominal Input Power small: 620
Nominal Input Power large: 1900Max Dissipation Rate: 280
Max Diameter: 50Max Length: 162
Filament Current (Large): 3.7Filament Voltage (Large): 5.0
Filament Current (Small): 3.5Filament Voltage (Small): 3.0
kV: 120
Small focal spot: 0.3
Large Focal Spot: 0.7
Target Angle: 12
Anode heat Capacity: 33000
Nominal Input Power small: 620
Nominal Input Power large: 1900
Max Dissipation Rate: 280
Max Diameter: 50
Max Length: 162
Filament Current (Large): 3.7
Filament Voltage (Large): 5.0
Filament Current (Small): 3.5
Filament Voltage (Small): 3.0
OX 120-0307 rev.C EngOX 120-0307 rev.C ItaOX 120-0307 rev.C Fra

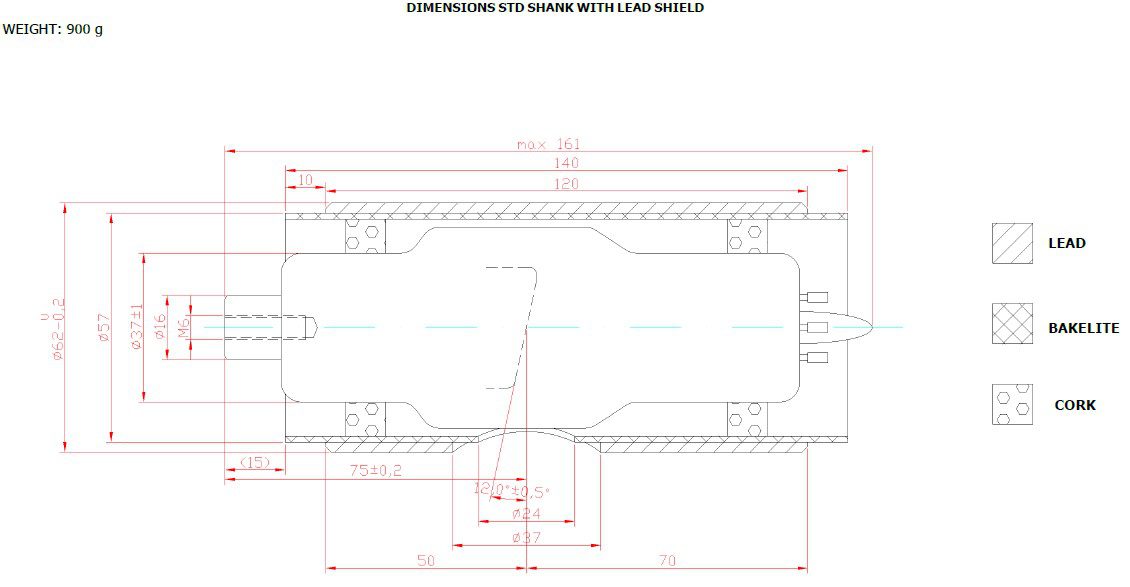

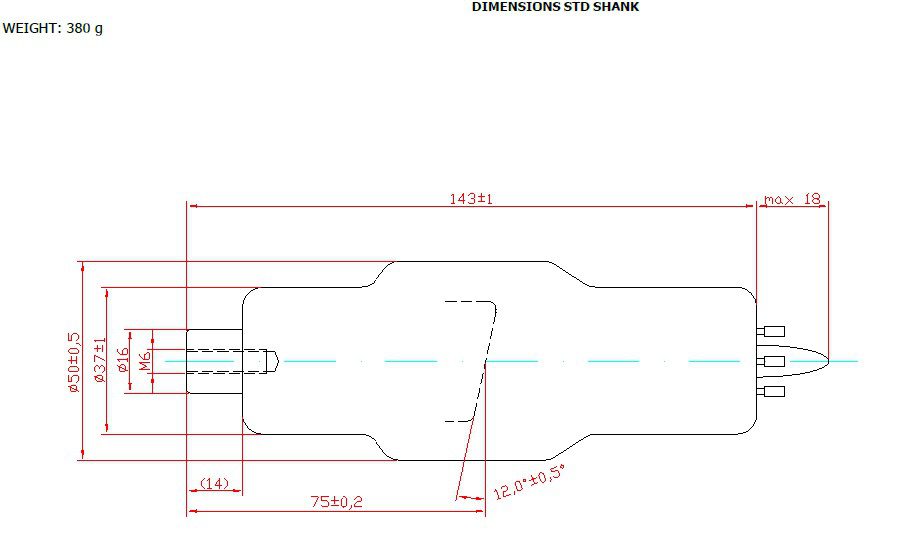

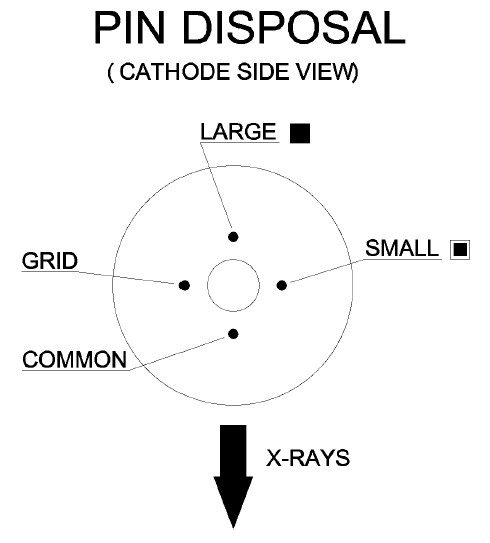

Dimensions and connections

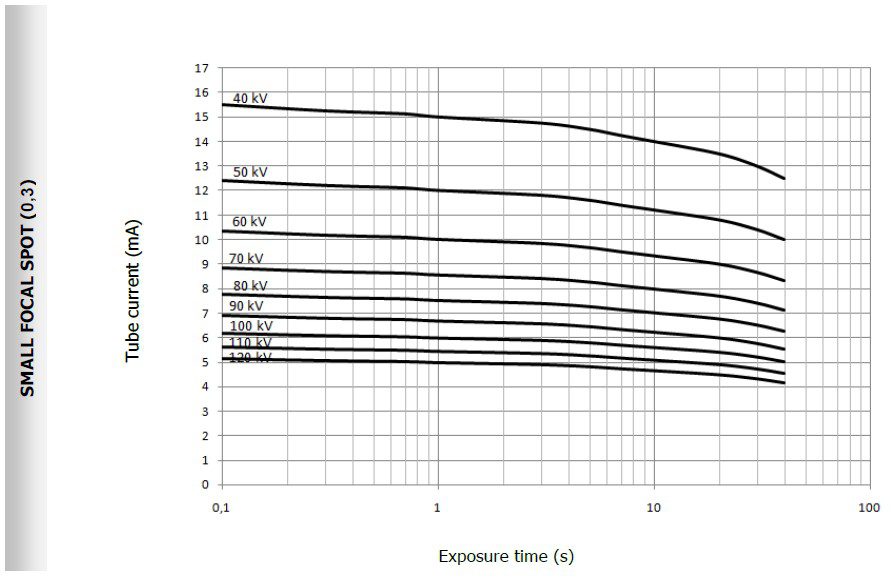

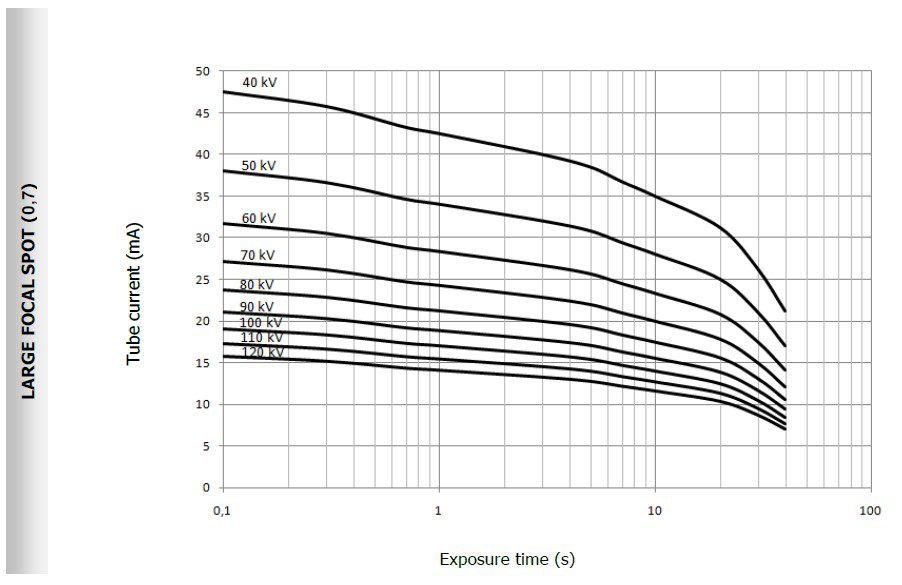

Maximum DC load diagrams

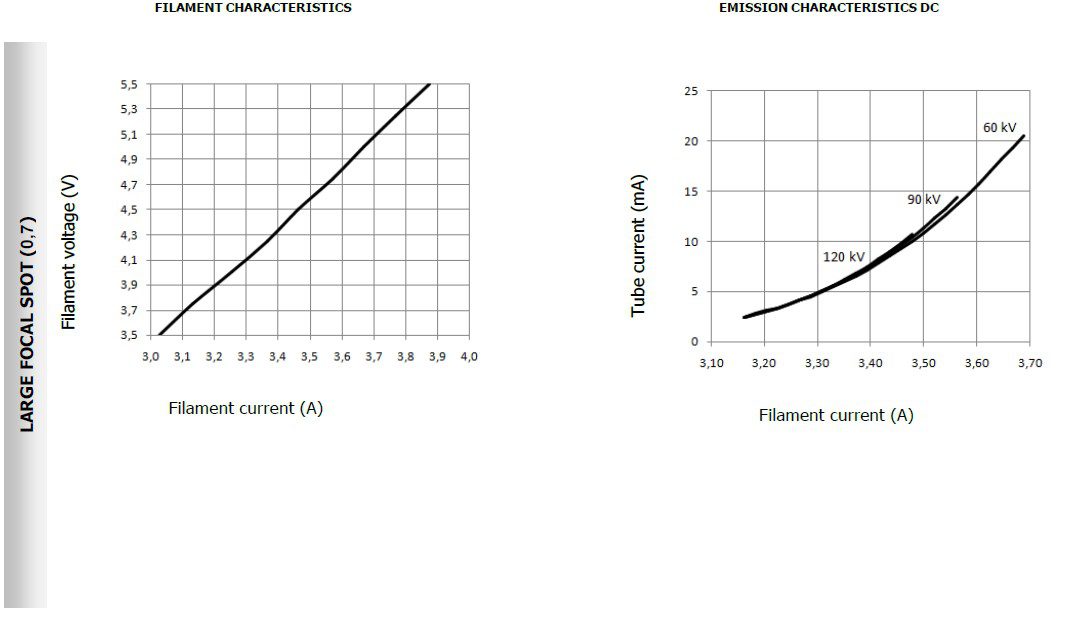

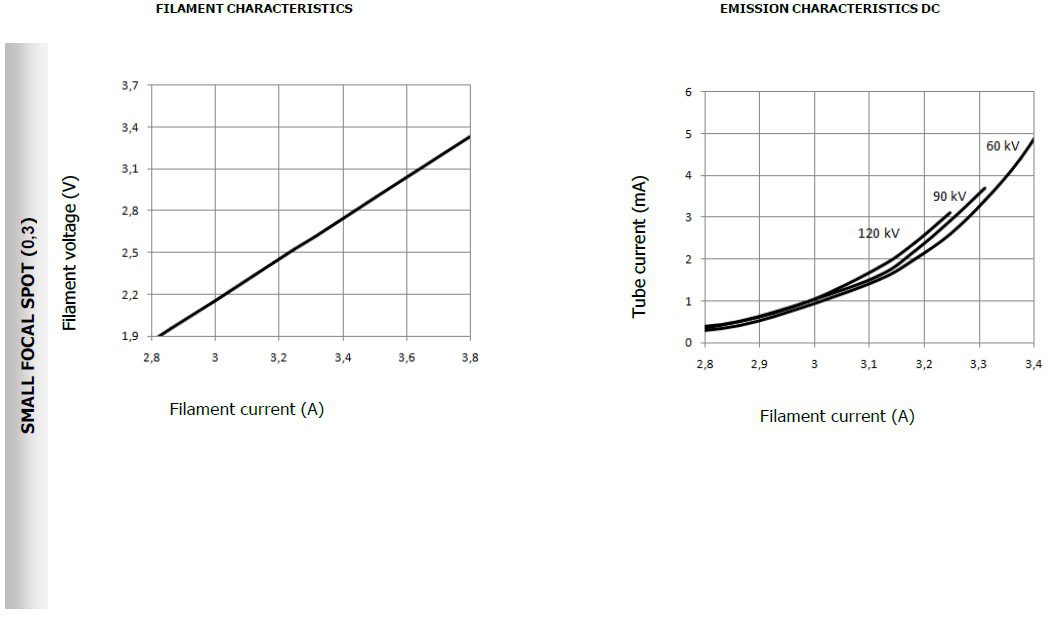

Filament and emission characteristics
