OX/125-06

Description and datas

kV: 125Large Focal Spot: 0.6Target Angle: 9
Anode heat Capacity: 60000Nominal Input Power large: 2020Max Dissipation Rate: 600
Max Diameter: 49Max Length: 173Filament Current (Large): 4.0
Filament Voltage (Large): 6.0
kV: 125Large Focal Spot: 0.6
Target Angle: 9Anode heat Capacity: 60000
Nominal Input Power large: 2020Max Dissipation Rate: 600
Max Diameter: 49Max Length: 173
Filament Current (Large): 4.0Filament Voltage (Large): 6.0
kV: 125
Large Focal Spot: 0.6
Target Angle: 9
Anode heat Capacity: 60000
Nominal Input Power large: 2020
Max Dissipation Rate: 600
Max Diameter: 49
Max Length: 173
Filament Current (Large): 4.0
Filament Voltage (Large): 6.0
OX 125-06 English

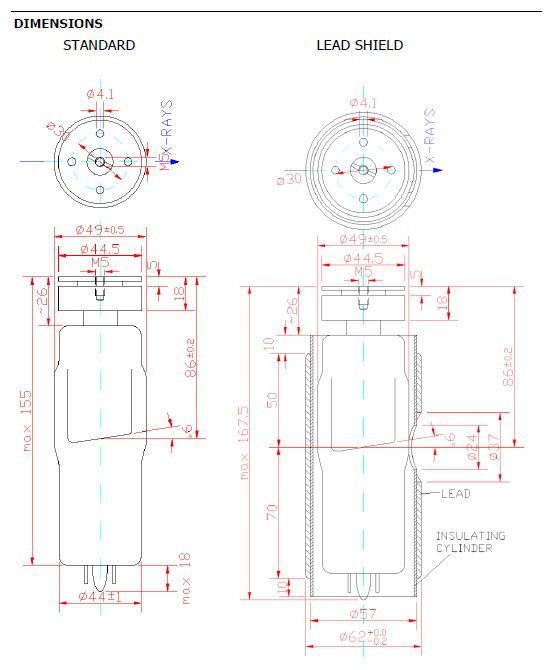

Dimensions and connections

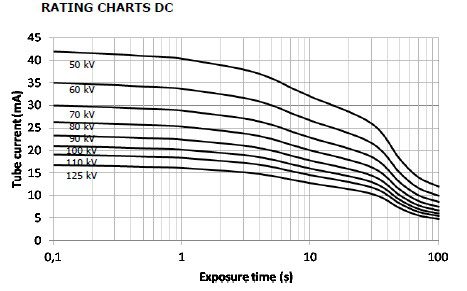

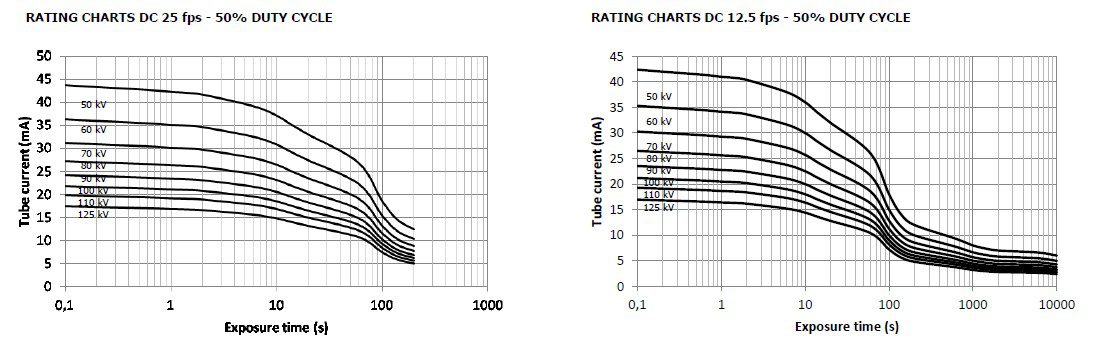

Maximum DC load diagrams

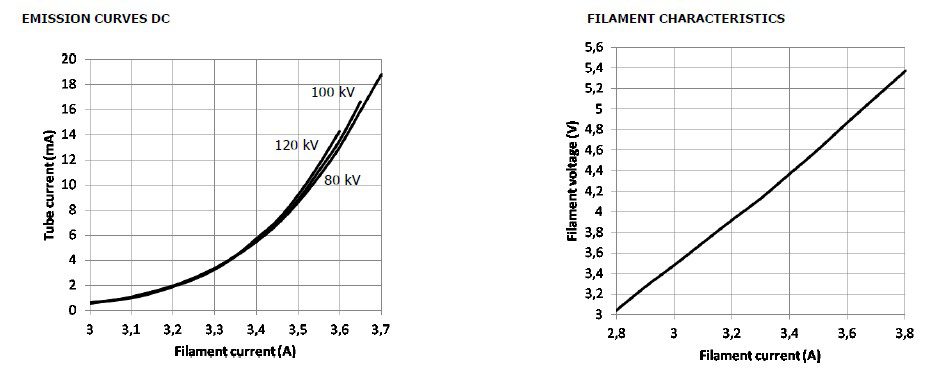

Filament and emission characteristics
