OX/125-0612

Description and datas

kV: 125Small focal spot: 0.6Large Focal Spot: 1.2
Target Angle: 9Anode heat Capacity: 57000Nominal Input Power small: 2100
Nominal Input Power large: 4000Max Dissipation Rate: 600Max Diameter: 49
Max Length: 170.5Filament Current (Large): 4.3Filament Voltage (Large): 7.8
Filament Current (Small): 4.3Filament Voltage (Small): 5.3
kV: 125Small focal spot: 0.6
Large Focal Spot: 1.2Target Angle: 9
Anode heat Capacity: 57000Nominal Input Power small: 2100
Nominal Input Power large: 4000Max Dissipation Rate: 600
Max Diameter: 49Max Length: 170.5
Filament Current (Large): 4.3Filament Voltage (Large): 7.8
Filament Current (Small): 4.3Filament Voltage (Small): 5.3
kV: 125
Small focal spot: 0.6
Large Focal Spot: 1.2
Target Angle: 9
Anode heat Capacity: 57000
Nominal Input Power small: 2100
Nominal Input Power large: 4000
Max Dissipation Rate: 600
Max Diameter: 49
Max Length: 170.5
Filament Current (Large): 4.3
Filament Voltage (Large): 7.8
Filament Current (Small): 4.3
Filament Voltage (Small): 5.3
OX 125-0612 rev.B EngOX 125-0612 rev.B FraOX 125-0612 rev.B Ita

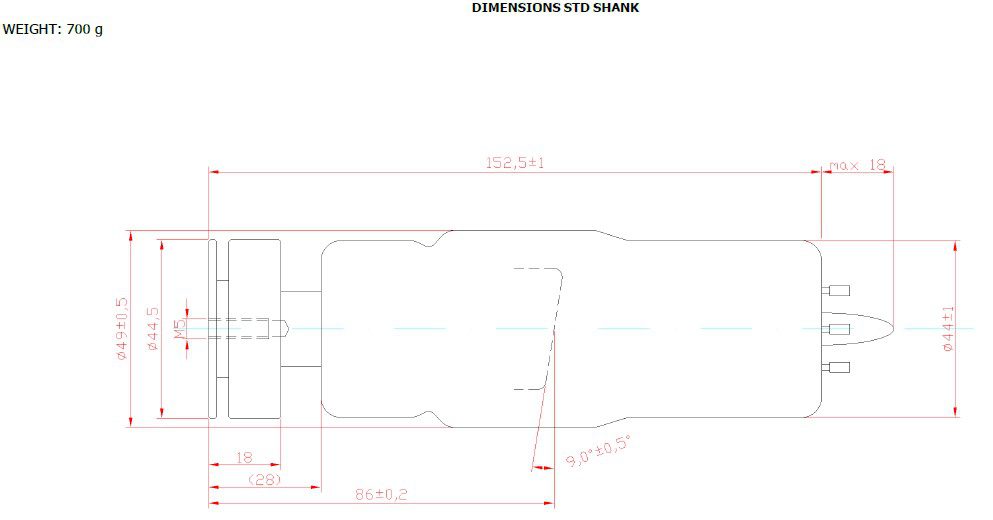

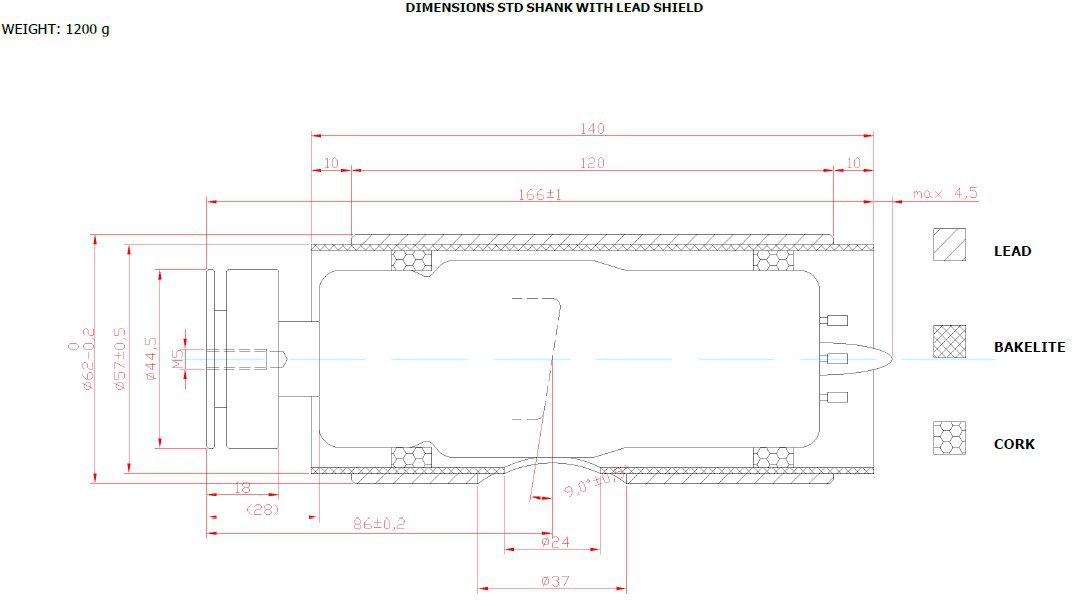

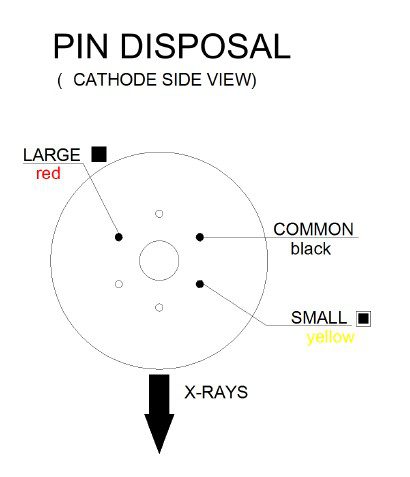

Dimensions and connections

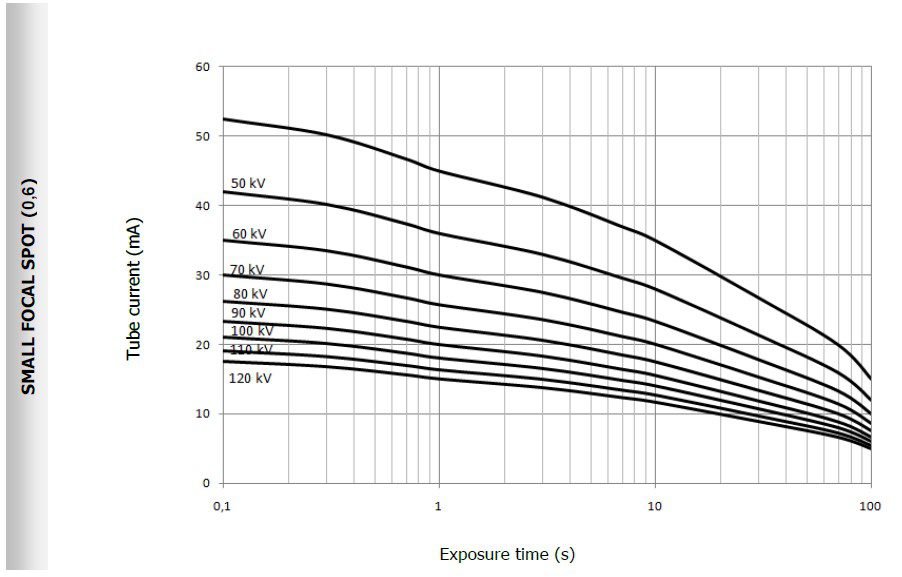

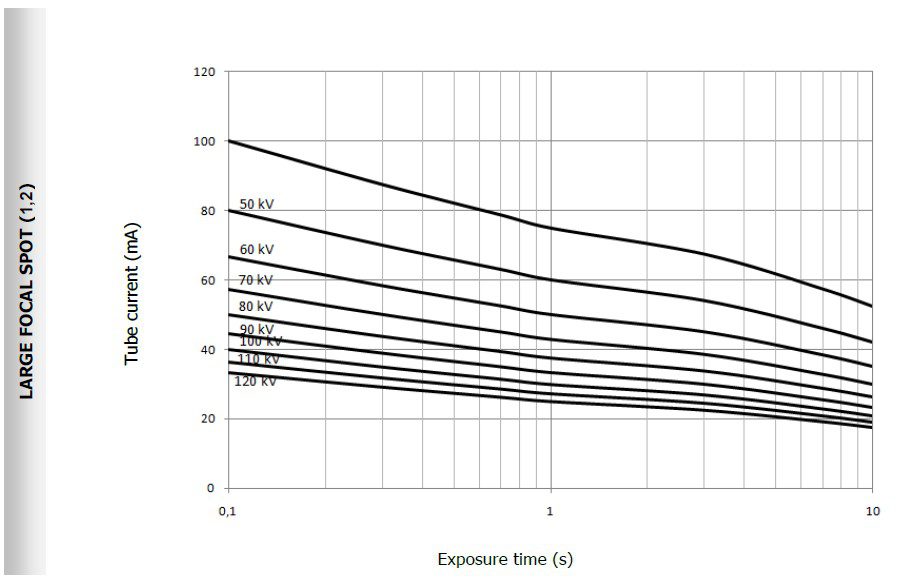

Maximum DC load diagrams

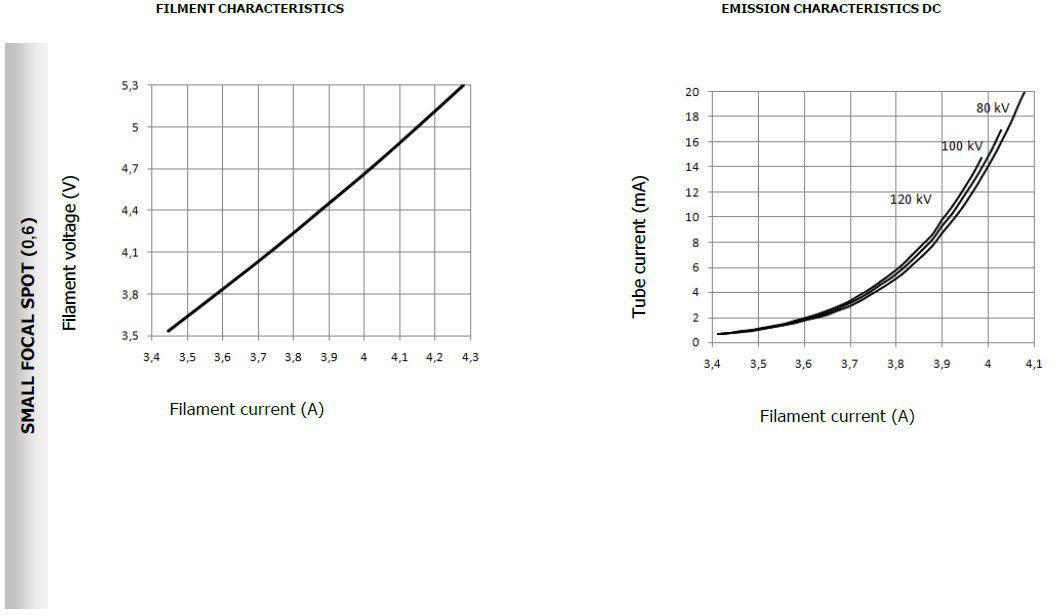

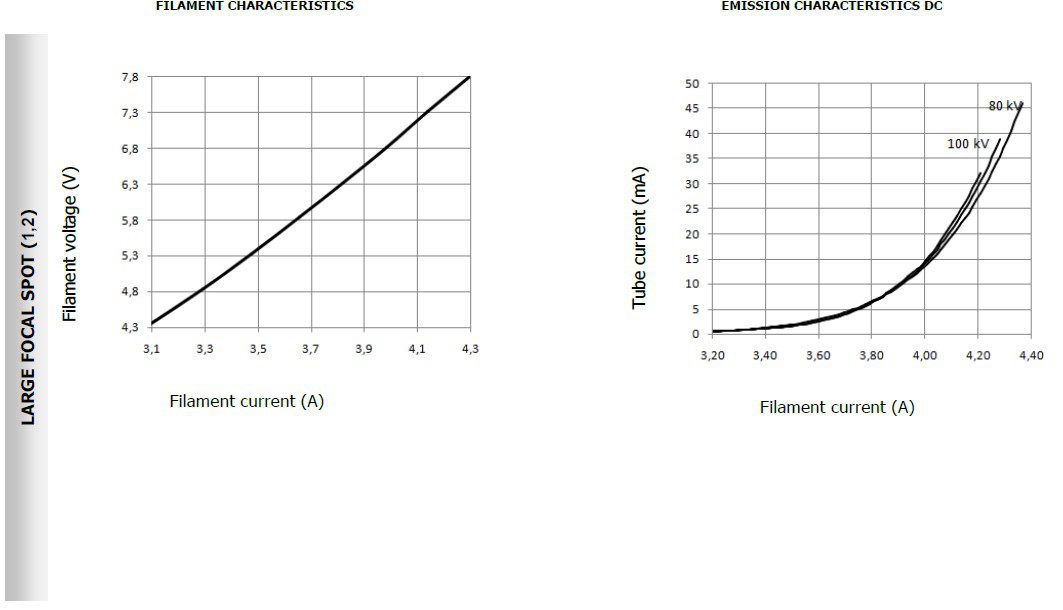

Filament and emission characteristics
