OX/125-1.2

Description and datas

kV: 125Large Focal Spot: 1.2Target Angle: 15
Anode heat Capacity: 35000Nominal Input Power large: 2800Max Dissipation Rate: 250
Max Diameter: 45Max Length: 157Filament Current (Large): 3.6
Filament Voltage (Large): 4.0
kV: 125Large Focal Spot: 1.2
Target Angle: 15Anode heat Capacity: 35000
Nominal Input Power large: 2800Max Dissipation Rate: 250
Max Diameter: 45Max Length: 157
Filament Current (Large): 3.6Filament Voltage (Large): 4.0
kV: 125
Large Focal Spot: 1.2
Target Angle: 15
Anode heat Capacity: 35000
Nominal Input Power large: 2800
Max Dissipation Rate: 250
Max Diameter: 45
Max Length: 157
Filament Current (Large): 3.6
Filament Voltage (Large): 4.0
OX 125-1,2 EnglishOX 125-1,2 FrancaisOX 125-1,2 Italiano

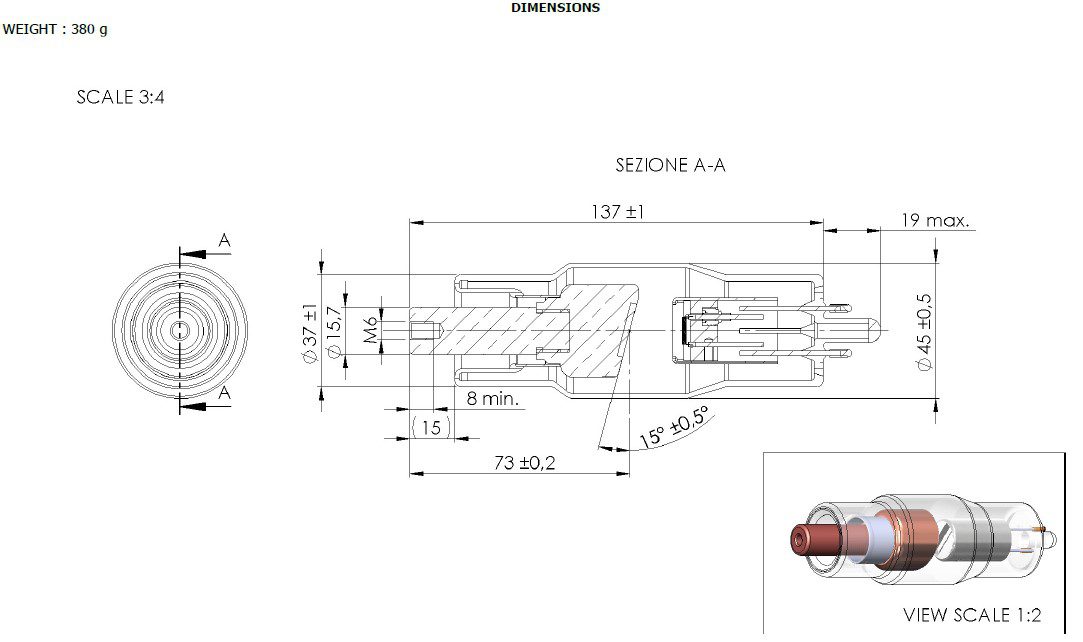

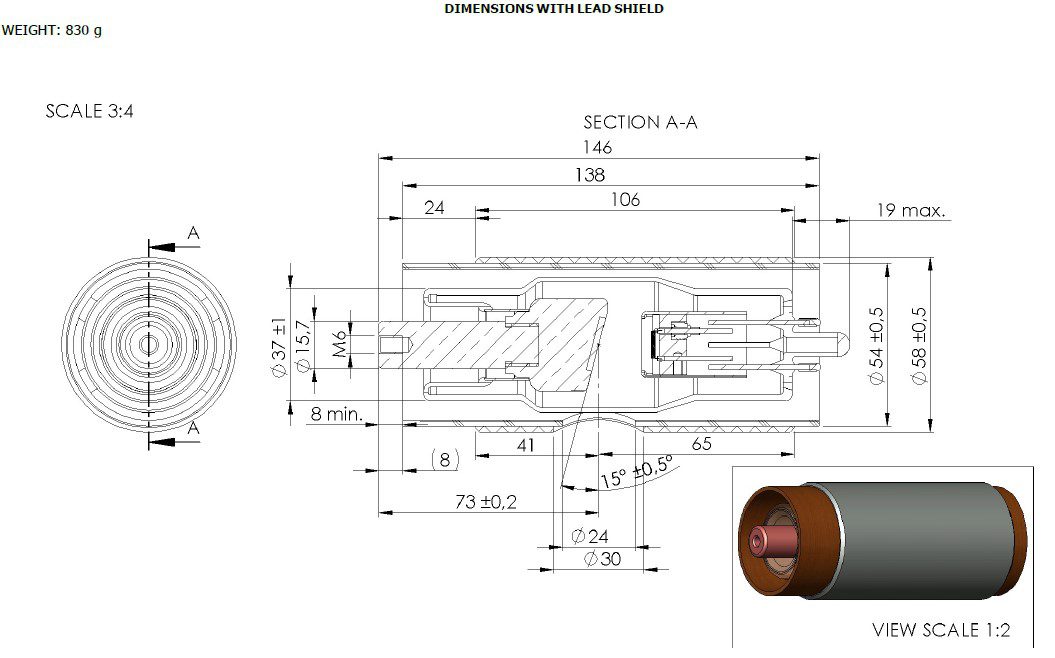

Dimensions and connections

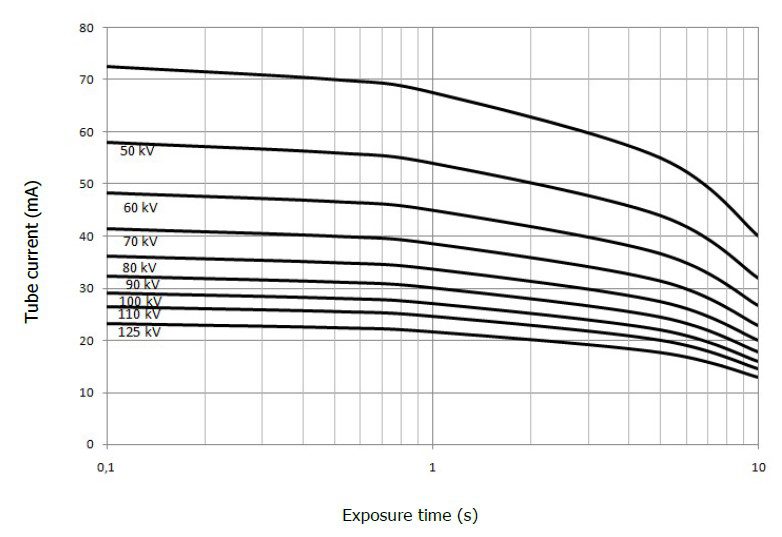

Maximum DC load diagrams

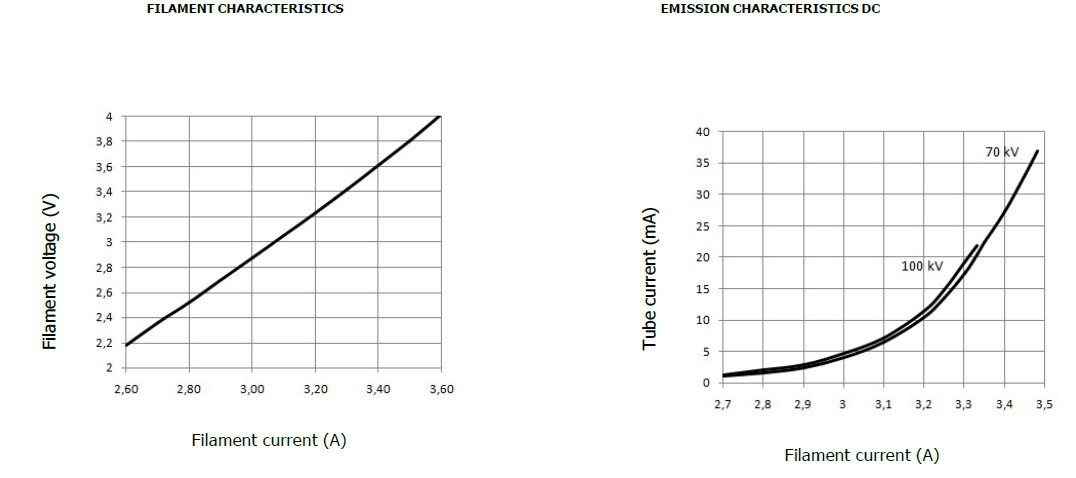

Filament and emission characteristics
