OX/125-M

Description and datas

kV: 125Small focal spot: 2.2Large Focal Spot: 3.8
Target Angle: 15Anode heat Capacity: 55000Nominal Input Power small: 5000
Nominal Input Power large: 13800Max Dissipation Rate: 380Max Diameter: 60
Max Length: 197Filament Current (Large): 5.5Filament Voltage (Large): 12.0
Filament Current (Small): 5.5Filament Voltage (Small): 6.0
kV: 125Small focal spot: 2.2
Large Focal Spot: 3.8Target Angle: 15
Anode heat Capacity: 55000Nominal Input Power small: 5000
Nominal Input Power large: 13800Max Dissipation Rate: 380
Max Diameter: 60Max Length: 197
Filament Current (Large): 5.5Filament Voltage (Large): 12.0
Filament Current (Small): 5.5Filament Voltage (Small): 6.0
kV: 125
Small focal spot: 2.2
Large Focal Spot: 3.8
Target Angle: 15
Anode heat Capacity: 55000
Nominal Input Power small: 5000
Nominal Input Power large: 13800
Max Dissipation Rate: 380
Max Diameter: 60
Max Length: 197
Filament Current (Large): 5.5
Filament Voltage (Large): 12.0
Filament Current (Small): 5.5
Filament Voltage (Small): 6.0
OX 125-M EnglishOX 125-M FrenchOX 125-M Italiano

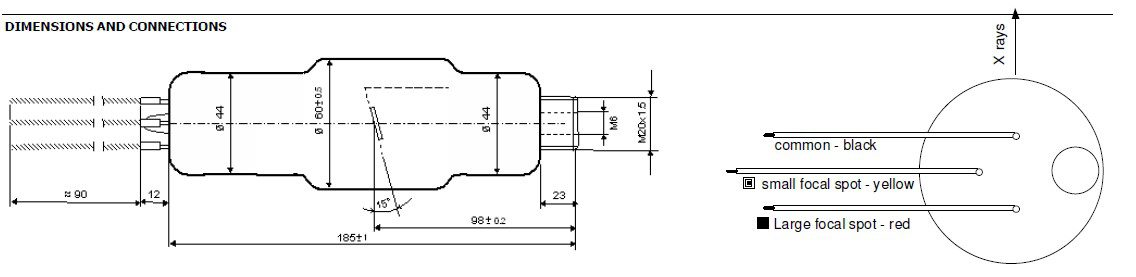

Dimensions and connections

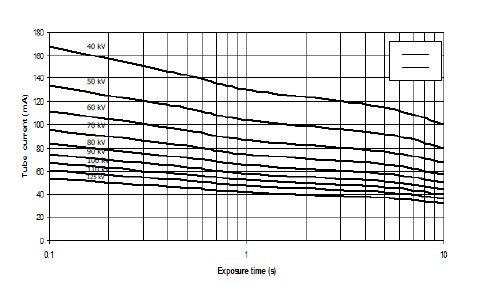

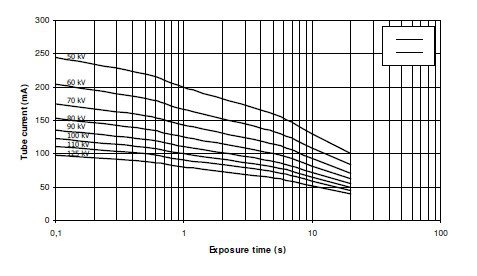

Maximum DC load diagrams

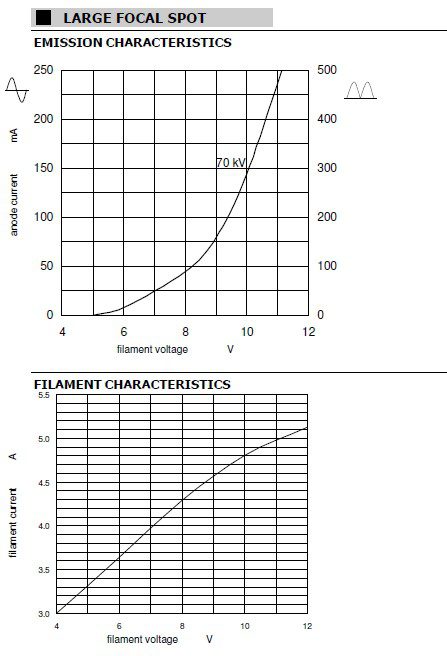

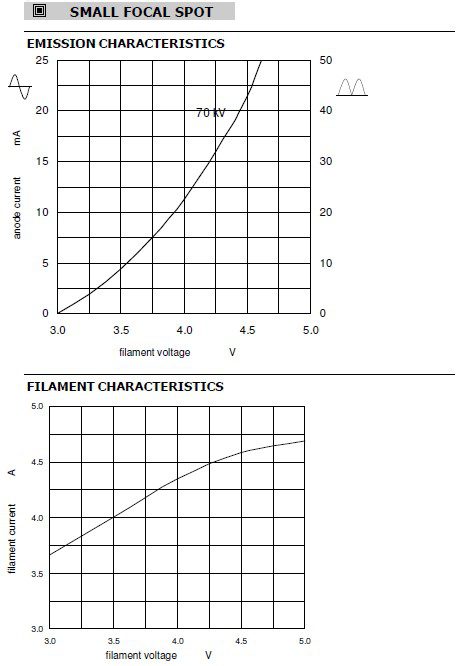

Filament and emission characteristics
