OX/125-M15

Description and datas

kV: 125Small focal spot: 1.5Large Focal Spot: 4.2
Target Angle: 15Anode heat Capacity: 55000Nominal Input Power small: 2500
Nominal Input Power large: 13000Max Dissipation Rate: 380Max Diameter: 60
Max Length: 197Filament Current (Large): 5.5Filament Voltage (Large): 12.0
Filament Current (Small): 5.5Filament Voltage (Small): 6.0
kV: 125Small focal spot: 1.5
Large Focal Spot: 4.2Target Angle: 15
Anode heat Capacity: 55000Nominal Input Power small: 2500
Nominal Input Power large: 13000Max Dissipation Rate: 380
Max Diameter: 60Max Length: 197
Filament Current (Large): 5.5Filament Voltage (Large): 12.0
Filament Current (Small): 5.5Filament Voltage (Small): 6.0
kV: 125
Small focal spot: 1.5
Large Focal Spot: 4.2
Target Angle: 15
Anode heat Capacity: 55000
Nominal Input Power small: 2500
Nominal Input Power large: 13000
Max Dissipation Rate: 380
Max Diameter: 60
Max Length: 197
Filament Current (Large): 5.5
Filament Voltage (Large): 12.0
Filament Current (Small): 5.5
Filament Voltage (Small): 6.0
OX 125-M15 EnglishOX 125-M15 FrenchOX 125-M15 Italiano

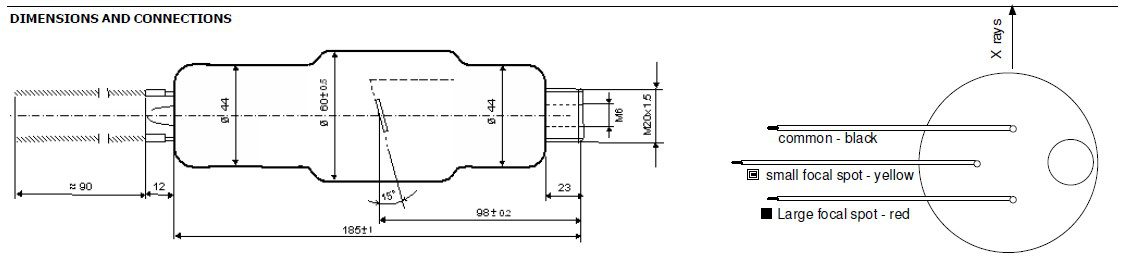

Dimensions and connections

Maximum DC load diagrams

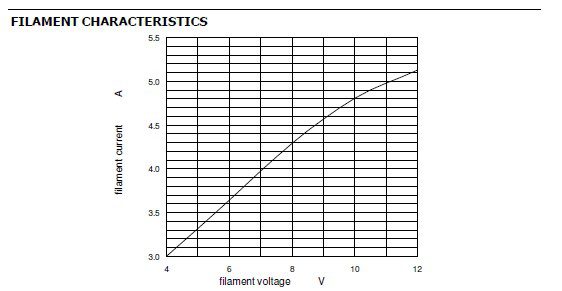

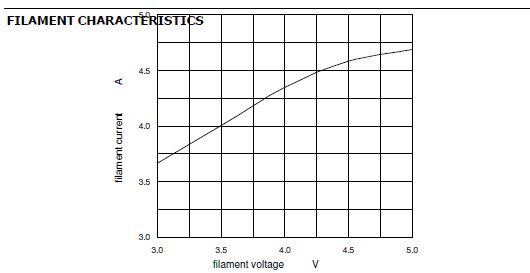

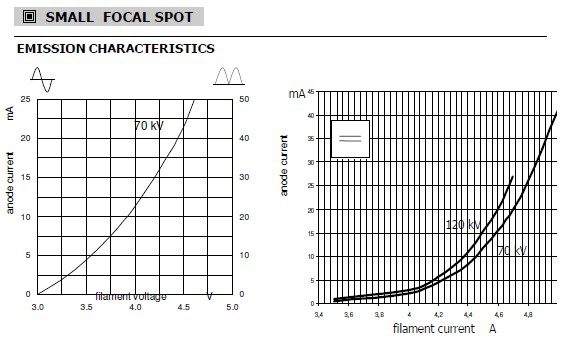

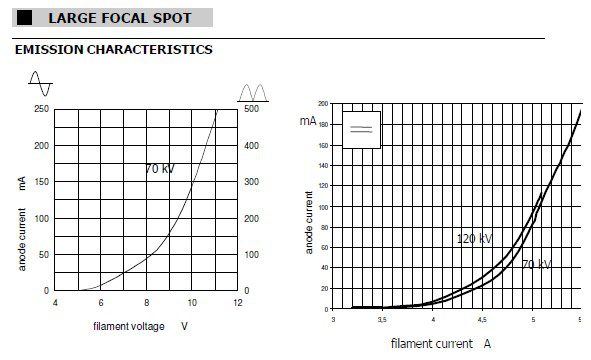

Filament and emission characteristics
