OX/70-0.04

Description and datas

kV: 80Large Focal Spot: 0.1Target Angle: 19
Anode heat Capacity: 7000Nominal Input Power large: 56Max Dissipation Rate: 110
Max Diameter: 30Max Length: 94Filament Current (Large): 2.2
Filament Voltage (Large): 2.5
kV: 80Large Focal Spot: 0.1
Target Angle: 19Anode heat Capacity: 7000
Nominal Input Power large: 56Max Dissipation Rate: 110
Max Diameter: 30Max Length: 94
Filament Current (Large): 2.2Filament Voltage (Large): 2.5
kV: 80
Large Focal Spot: 0.1
Target Angle: 19
Anode heat Capacity: 7000
Nominal Input Power large: 56
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 94
Filament Current (Large): 2.2
Filament Voltage (Large): 2.5
OX 70-0,04 rev.A Eng

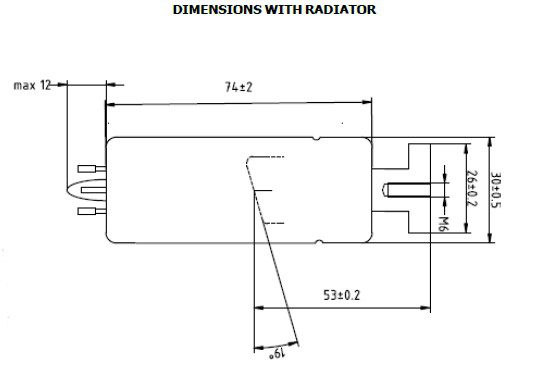

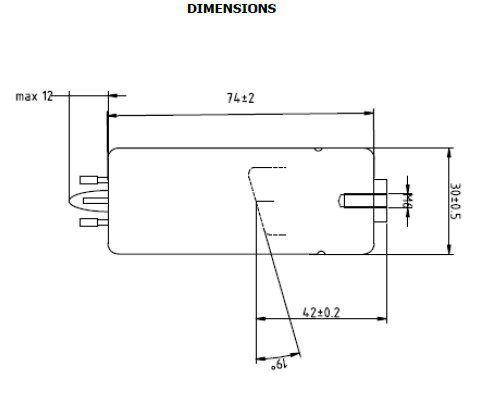

Dimensions and connections

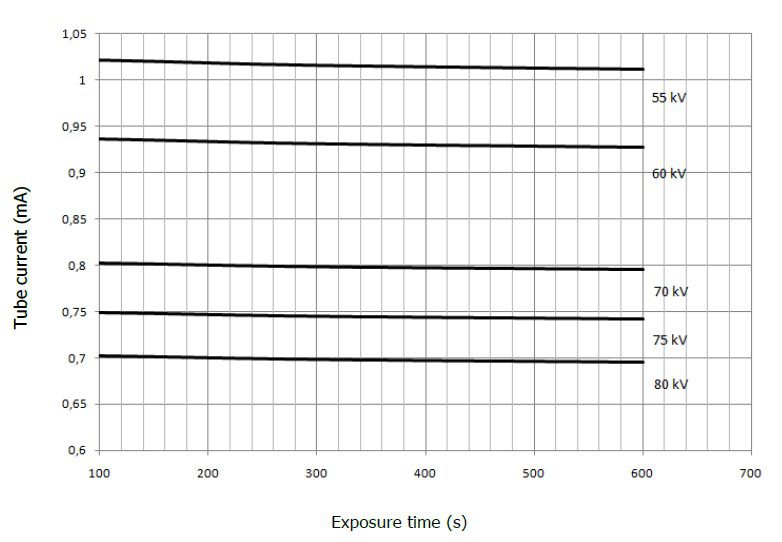

Maximum DC load diagrams

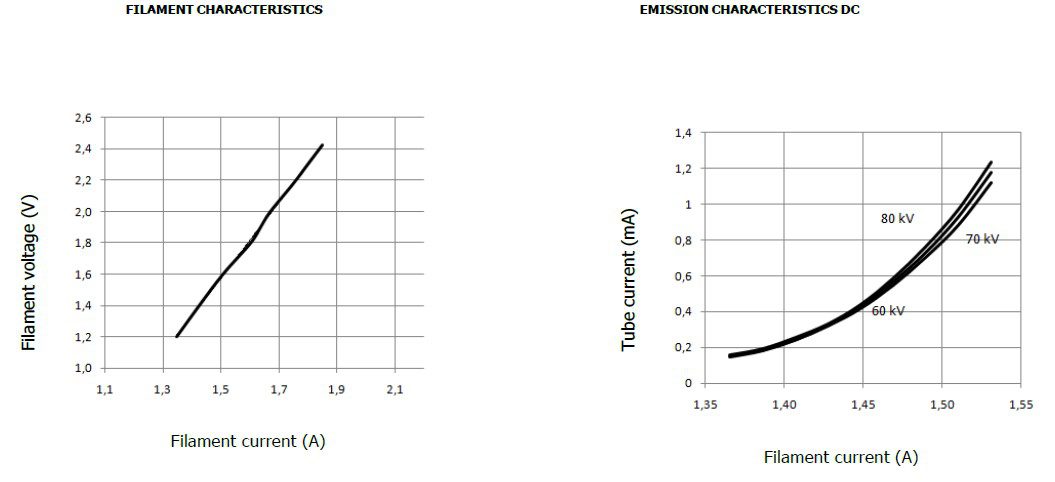

Filament and emission characteristics
