OX/70

Description and datas

kV: 90Large Focal Spot: 1.2Target Angle: 19
Anode heat Capacity: 10000Nominal Input Power large: 1890Max Dissipation Rate: 110
Max Diameter: 30Max Length: 91Filament Current (Large): 2.8
Filament Voltage (Large): 4
kV: 90Large Focal Spot: 1.2
Target Angle: 19Anode heat Capacity: 10000
Nominal Input Power large: 1890Max Dissipation Rate: 110
Max Diameter: 30Max Length: 91
Filament Current (Large): 2.8Filament Voltage (Large): 4
kV: 90
Large Focal Spot: 1.2
Target Angle: 19
Anode heat Capacity: 10000
Nominal Input Power large: 1890
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 91
Filament Current (Large): 2.8
Filament Voltage (Large): 4
OX 70 EnglishOX 70 FrenchOX 70 Italiano

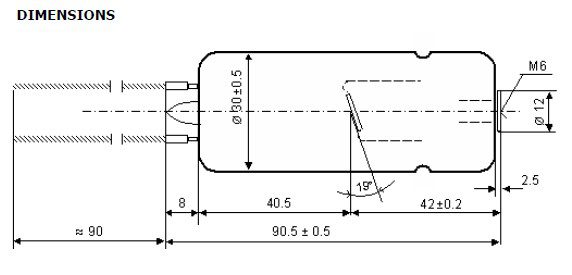

Dimensions and connections

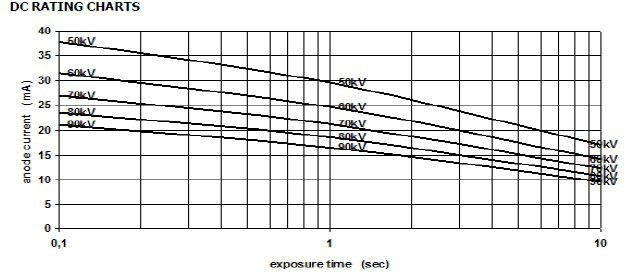

Maximum DC load diagrams

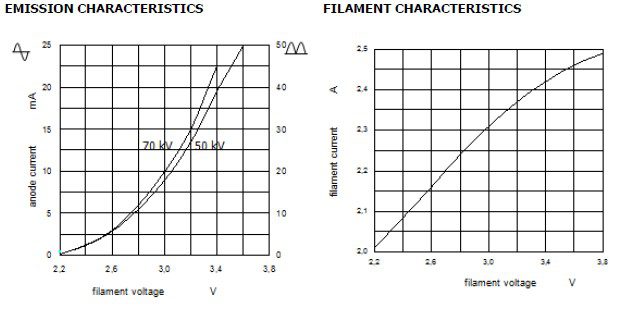

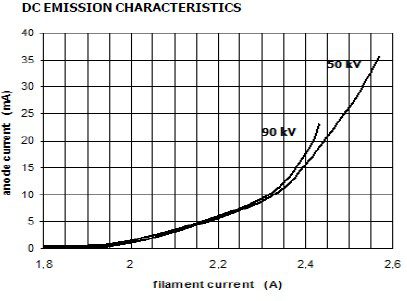

Filament and emission characteristics
