OX/70-3

Description and datas

kV: 70Large Focal Spot: 0.3Target Angle: 13
Anode heat Capacity: 7000Nominal Input Power large: 500Max Dissipation Rate: 110
Max Diameter: 30Max Length: 74Filament Current (Large): 2.2
Filament Voltage (Large): 2.6
kV: 70Large Focal Spot: 0.3
Target Angle: 13Anode heat Capacity: 7000
Nominal Input Power large: 500Max Dissipation Rate: 110
Max Diameter: 30Max Length: 74
Filament Current (Large): 2.2Filament Voltage (Large): 2.6
kV: 70
Large Focal Spot: 0.3
Target Angle: 13
Anode heat Capacity: 7000
Nominal Input Power large: 500
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 74
Filament Current (Large): 2.2
Filament Voltage (Large): 2.6
OX 70-3 EnglishOX 70-3 FrancaisOX 70-3 Italiano

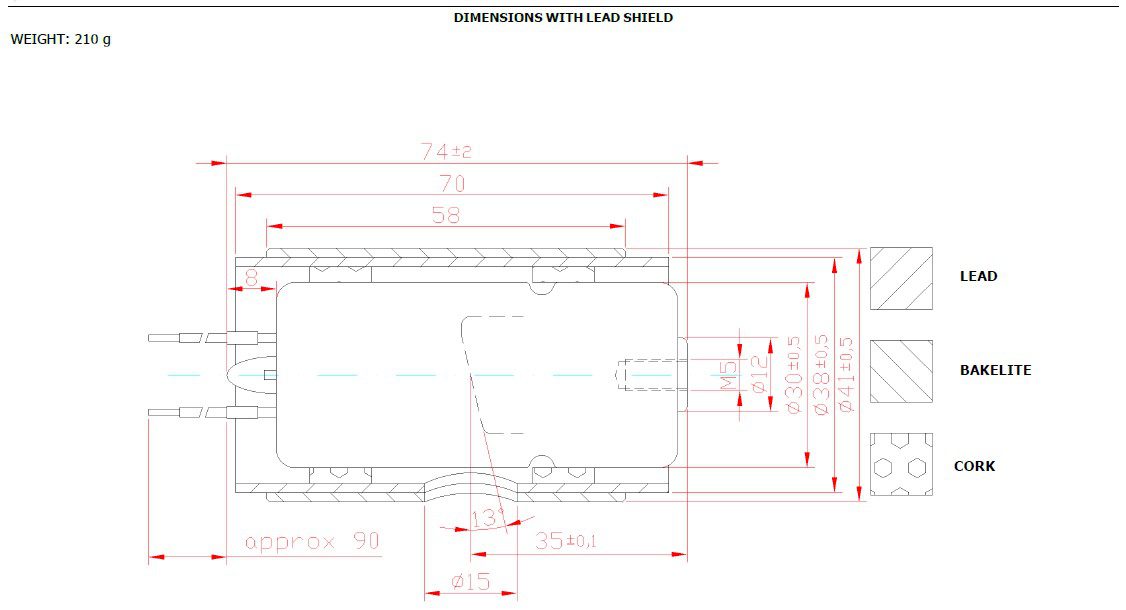

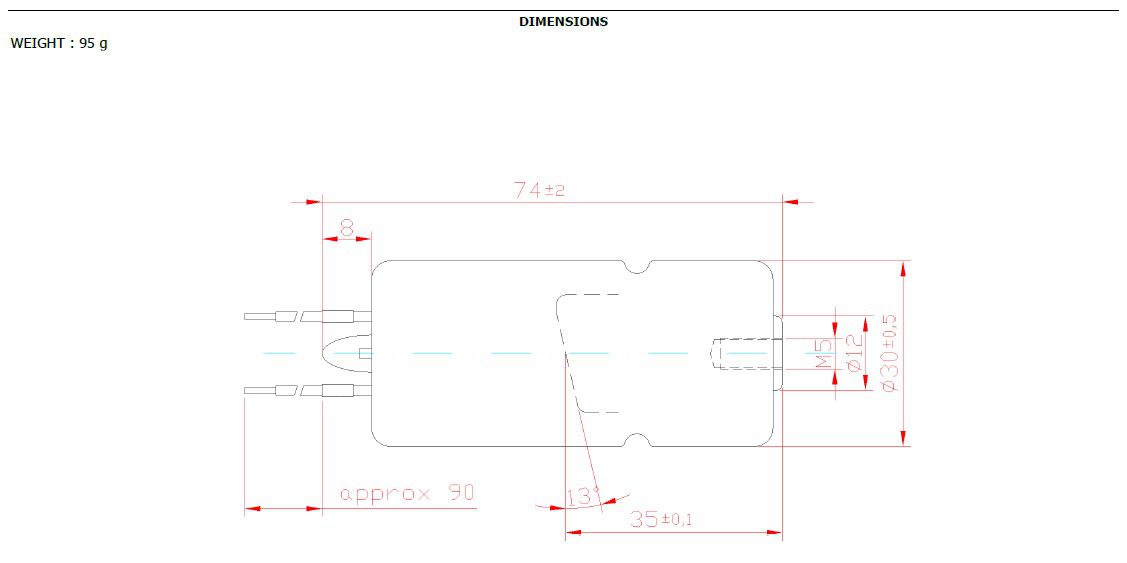

Dimensions and connections

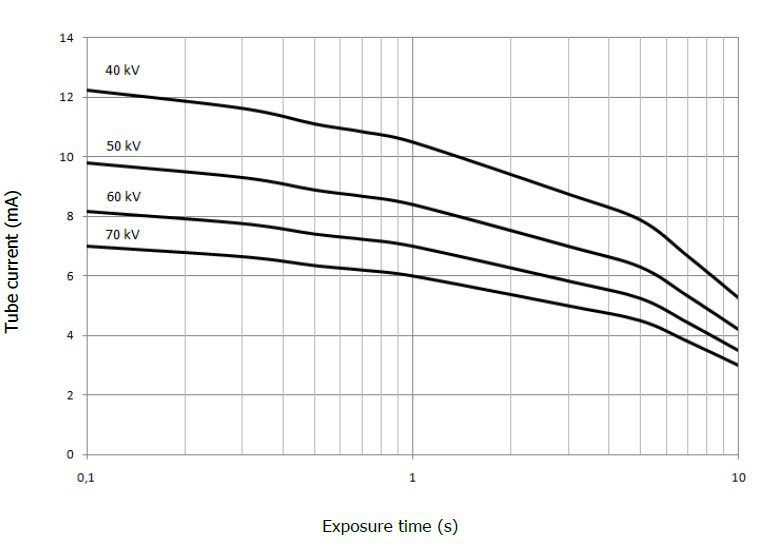

Maximum DC load diagrams

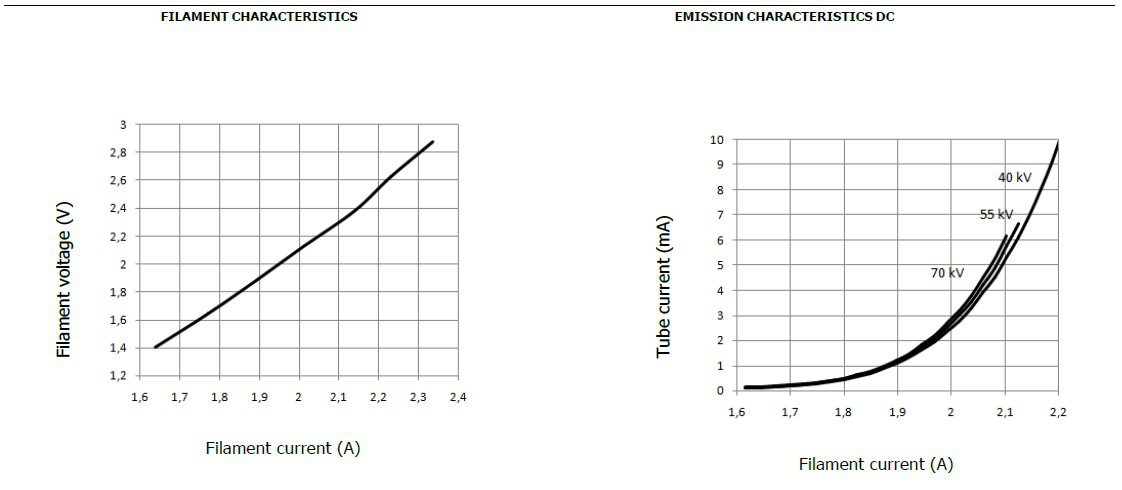

Filament and emission characteristics
