OX/70-4

Description and datas

kV: 70Large Focal Spot: 0.4Target Angle: 16
Anode heat Capacity: 7000Nominal Input Power large: 600Max Dissipation Rate: 110
Max Diameter: 30Max Length: 84Filament Current (Large): 2.1
Filament Voltage (Large): 3.1
kV: 70Large Focal Spot: 0.4
Target Angle: 16Anode heat Capacity: 7000
Nominal Input Power large: 600Max Dissipation Rate: 110
Max Diameter: 30Max Length: 84
Filament Current (Large): 2.1Filament Voltage (Large): 3.1
kV: 70
Large Focal Spot: 0.4
Target Angle: 16
Anode heat Capacity: 7000
Nominal Input Power large: 600
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 84
Filament Current (Large): 2.1
Filament Voltage (Large): 3.1
OX 70-4 EnglishOX 70-4 FrenchOX 70-4 Italiano

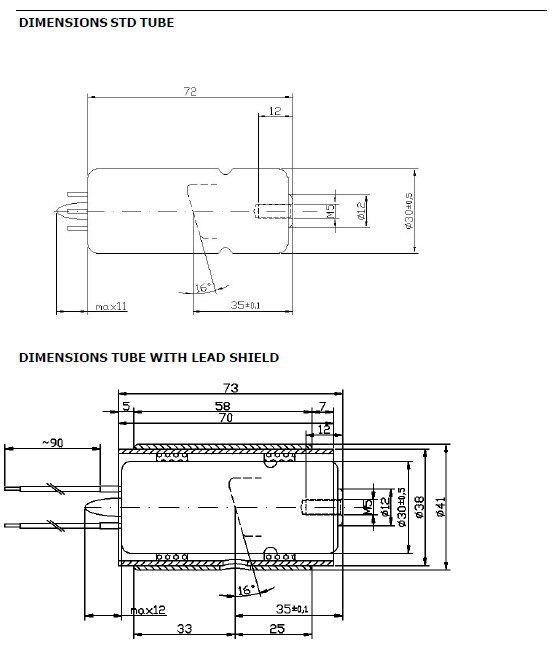

Dimensions and connections

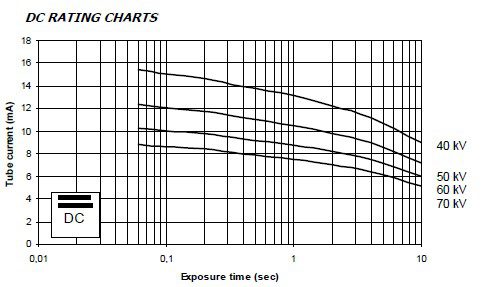

Maximum DC load diagrams

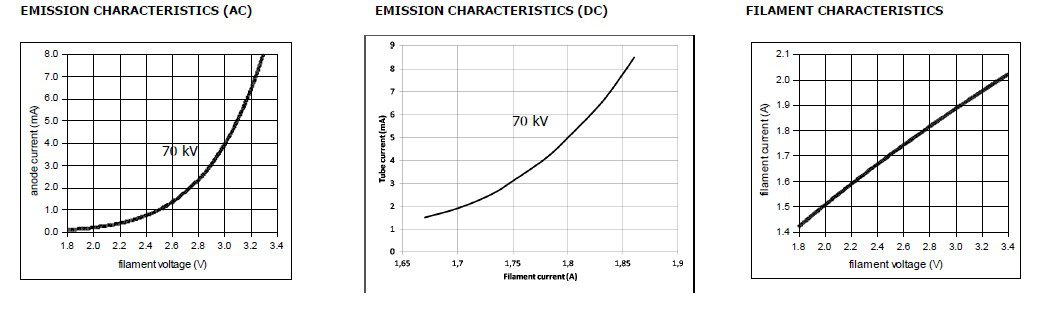

Filament and emission characteristics
