OX/70-4C

Description and datas

kV: 70Large Focal Spot: 0.4Target Angle: 16
Anode heat Capacity: 7000Nominal Input Power large: 600Max Dissipation Rate: 110
Max Diameter: 30Max Length: 79Filament Current (Large): 3.5
Filament Voltage (Large): 3.6
kV: 70Large Focal Spot: 0.4
Target Angle: 16Anode heat Capacity: 7000
Nominal Input Power large: 600Max Dissipation Rate: 110
Max Diameter: 30Max Length: 79
Filament Current (Large): 3.5Filament Voltage (Large): 3.6
kV: 70
Large Focal Spot: 0.4
Target Angle: 16
Anode heat Capacity: 7000
Nominal Input Power large: 600
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 79
Filament Current (Large): 3.5
Filament Voltage (Large): 3.6
OX 70-4C EnglishOX 70-4C FrenchOX 70-4C Italiano

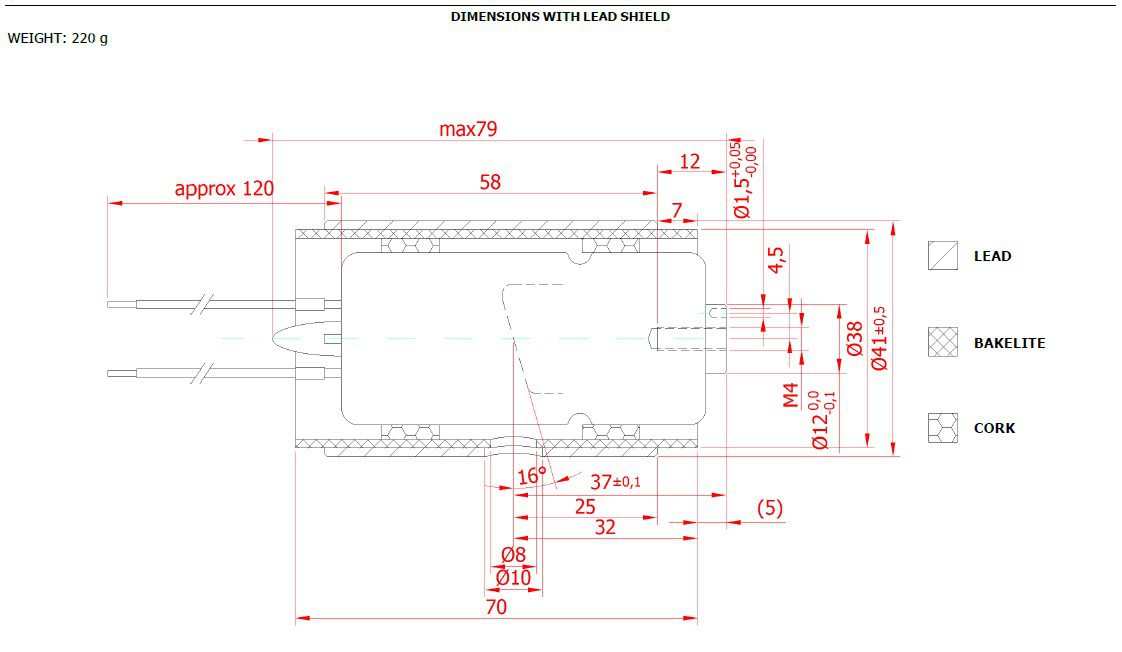

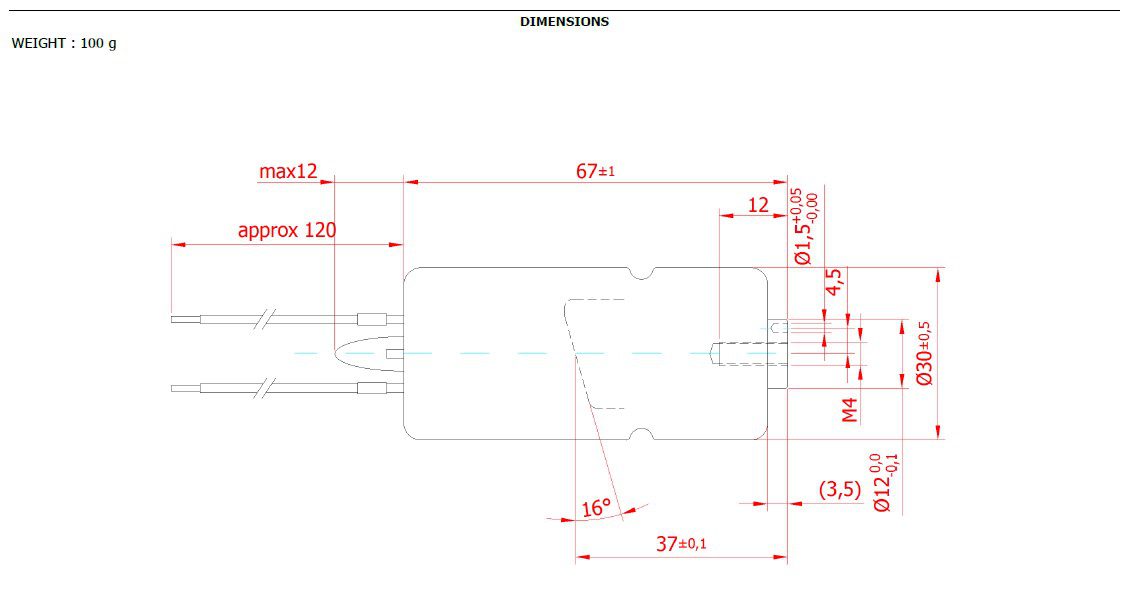

Dimensions and connections

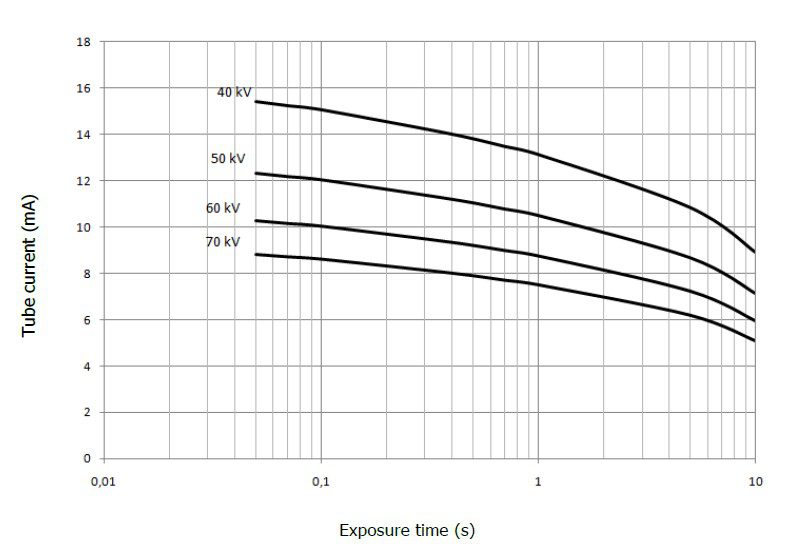

Maximum DC load diagrams

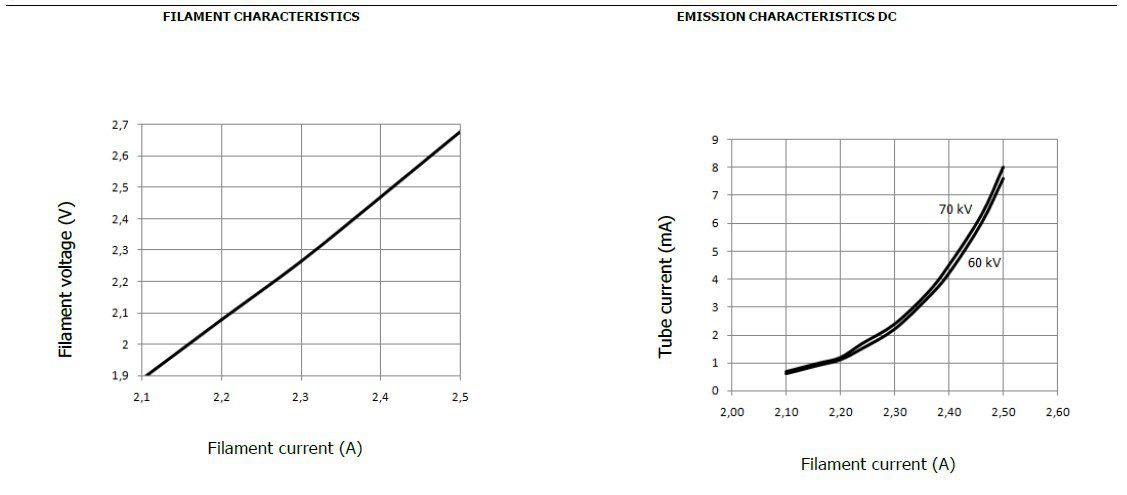

Filament and emission characteristics
