OX/70-5

Description and datas

kV: 70Large Focal Spot: 0.5Target Angle: 19
Anode heat Capacity: 7000Nominal Input Power large: 770Max Dissipation Rate: 110
Max Diameter: 30Max Length: 80Filament Current (Large): 2.0
Filament Voltage (Large): 3.1
kV: 70Large Focal Spot: 0.5
Target Angle: 19Anode heat Capacity: 7000
Nominal Input Power large: 770Max Dissipation Rate: 110
Max Diameter: 30Max Length: 80
Filament Current (Large): 2.0Filament Voltage (Large): 3.1
kV: 70
Large Focal Spot: 0.5
Target Angle: 19
Anode heat Capacity: 7000
Nominal Input Power large: 770
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 80
Filament Current (Large): 2.0
Filament Voltage (Large): 3.1
OX 70-5 EnglishOX 70-5 FrenchOX 70-5 Italiano

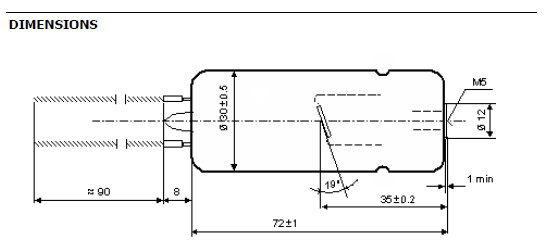

Dimensions and connections

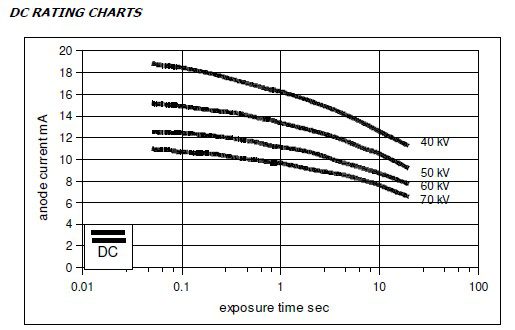

Maximum DC load diagrams

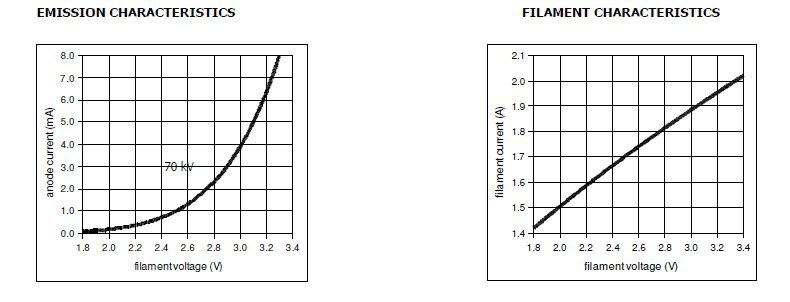

Filament and emission characteristics
