OX/70-G4

Description and datas

kV: 70Large Focal Spot: 0.4Target Angle: 16
Anode heat Capacity: 7000Nominal Input Power large: 560Max Dissipation Rate: 110
Max Diameter: 30Max Length: 78Max continuous mA: 8
Filament Current (Large): 3.0Filament Voltage (Large): 5.0
kV: 70Large Focal Spot: 0.4
Target Angle: 16Anode heat Capacity: 7000
Nominal Input Power large: 560Max Dissipation Rate: 110
Max Diameter: 30Max Length: 78
Max continuous mA: 8Filament Current (Large): 3.0
Filament Voltage (Large): 5.0
kV: 70
Large Focal Spot: 0.4
Target Angle: 16
Anode heat Capacity: 7000
Nominal Input Power large: 560
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 78
Max continuous mA: 8
Filament Current (Large): 3.0
Filament Voltage (Large): 5.0
OX 70-G4 EnglishOX 70-G4 FrenchOX 70-G4 Italiano

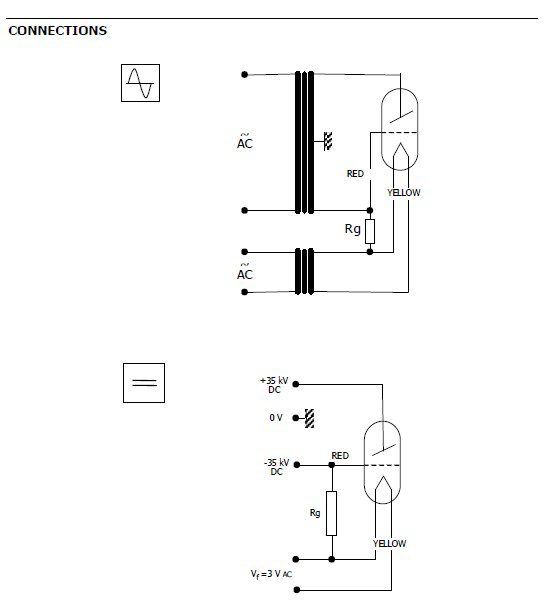

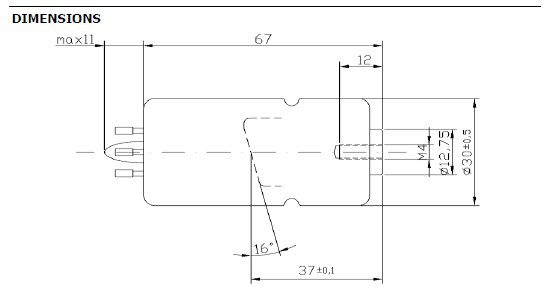

Dimensions and connections

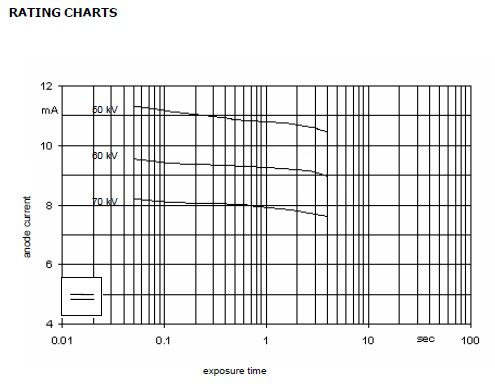

Maximum DC load diagrams

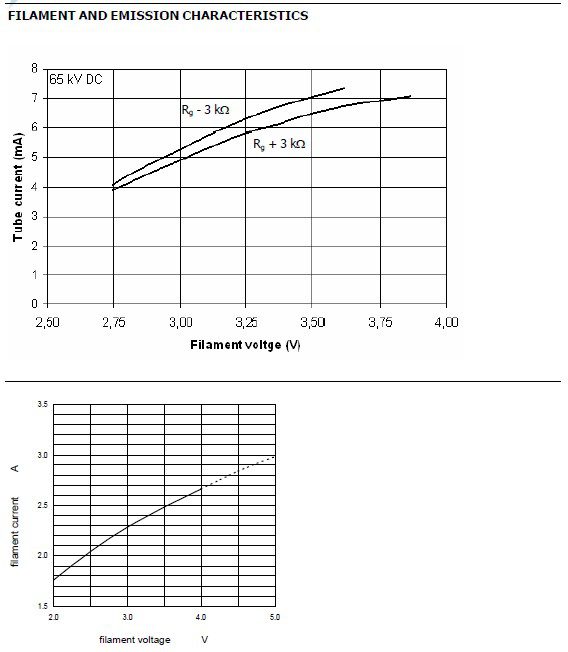

Filament and emission characteristics
