OX/70-P

Description and datas

kV: 70Large Focal Spot: 0.7Target Angle: 19
Anode heat Capacity: 7000Nominal Input Power large: 1300Max Dissipation Rate: 110
Max Diameter: 30Max Length: 80Filament Current (Large): 2.2
Filament Voltage (Large): 3.3
kV: 70Large Focal Spot: 0.7
Target Angle: 19Anode heat Capacity: 7000
Nominal Input Power large: 1300Max Dissipation Rate: 110
Max Diameter: 30Max Length: 80
Filament Current (Large): 2.2Filament Voltage (Large): 3.3
kV: 70
Large Focal Spot: 0.7
Target Angle: 19
Anode heat Capacity: 7000
Nominal Input Power large: 1300
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 80
Filament Current (Large): 2.2
Filament Voltage (Large): 3.3
OX 70-P EnglishOX 70-P FrenchOX 70-P Italiano

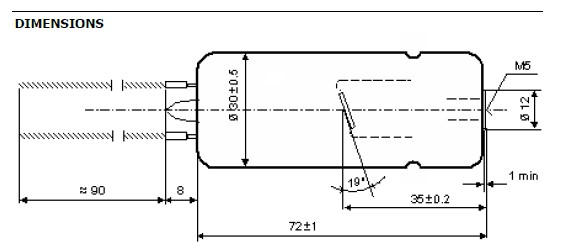

Dimensions and connections

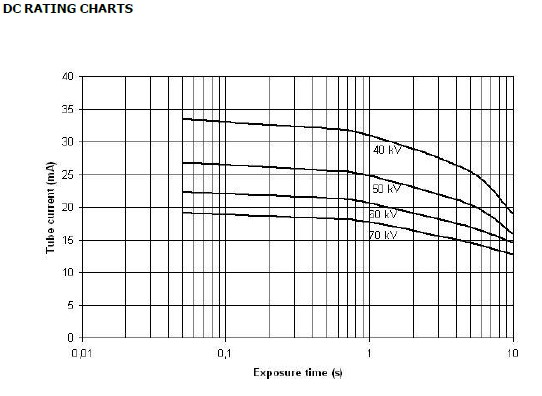

Maximum DC load diagrams

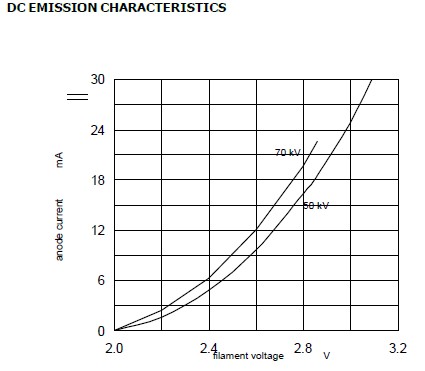

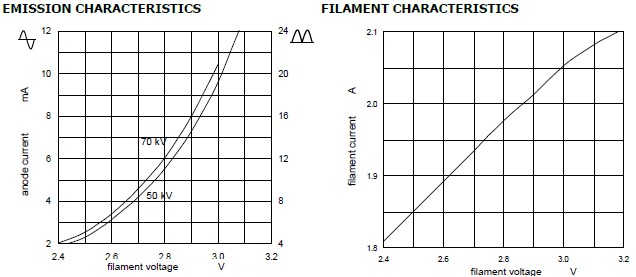

Filament and emission characteristics
