OX/80-0.15

Description and datas

kV: 80Large Focal Spot: 0.1Target Angle: 19
Anode heat Capacity: 10000Nominal Input Power large: 110Max Dissipation Rate: 150
Max Diameter: 30Max Length: 96Max continuous mA: 1
Filament Current (Large): 2.5Filament Voltage (Large): 4.5
kV: 80Large Focal Spot: 0.1
Target Angle: 19Anode heat Capacity: 10000
Nominal Input Power large: 110Max Dissipation Rate: 150
Max Diameter: 30Max Length: 96
Max continuous mA: 1Filament Current (Large): 2.5
Filament Voltage (Large): 4.5
kV: 80
Large Focal Spot: 0.1
Target Angle: 19
Anode heat Capacity: 10000
Nominal Input Power large: 110
Max Dissipation Rate: 150
Max Diameter: 30
Max Length: 96
Max continuous mA: 1
Filament Current (Large): 2.5
Filament Voltage (Large): 4.5
OX 80-0.15 rev.B EngOX 80-0.15 rev.B FraOX 80-0.15 rev.B Ita

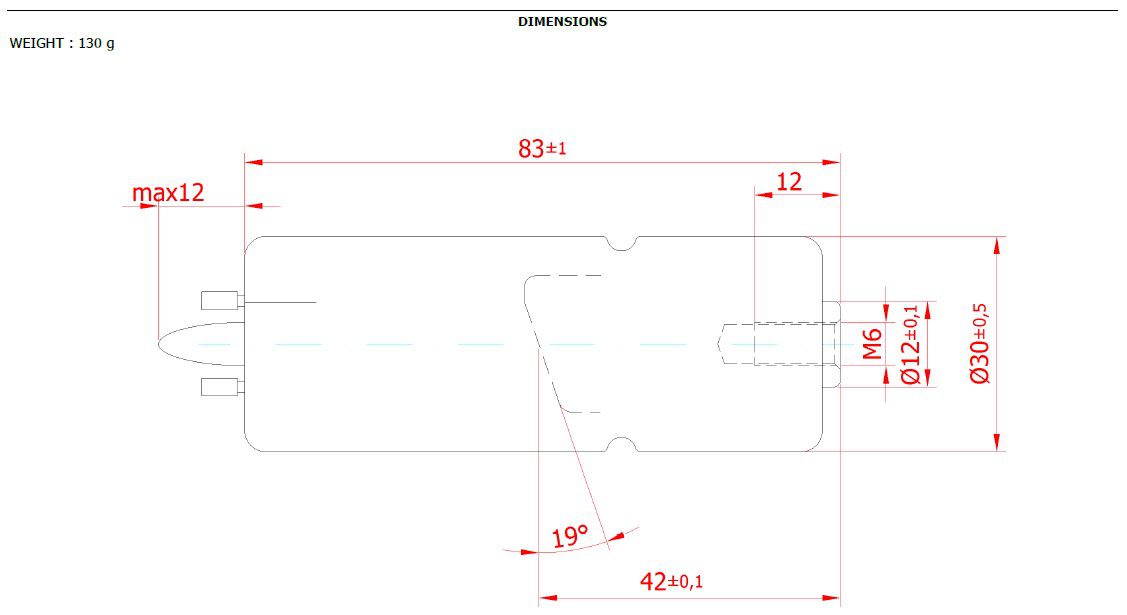

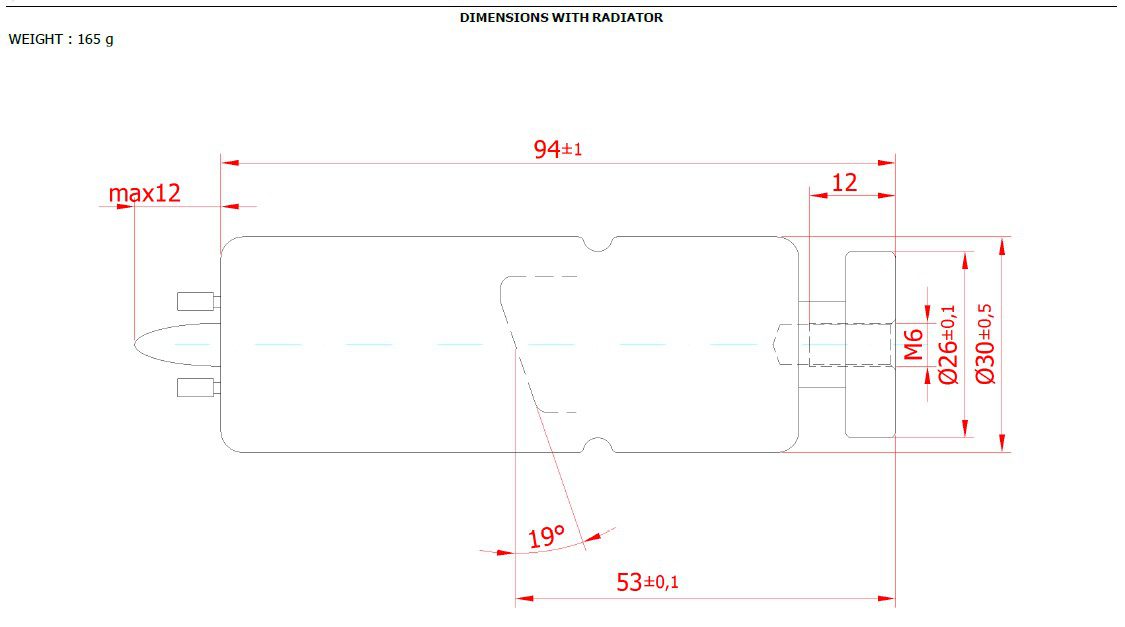

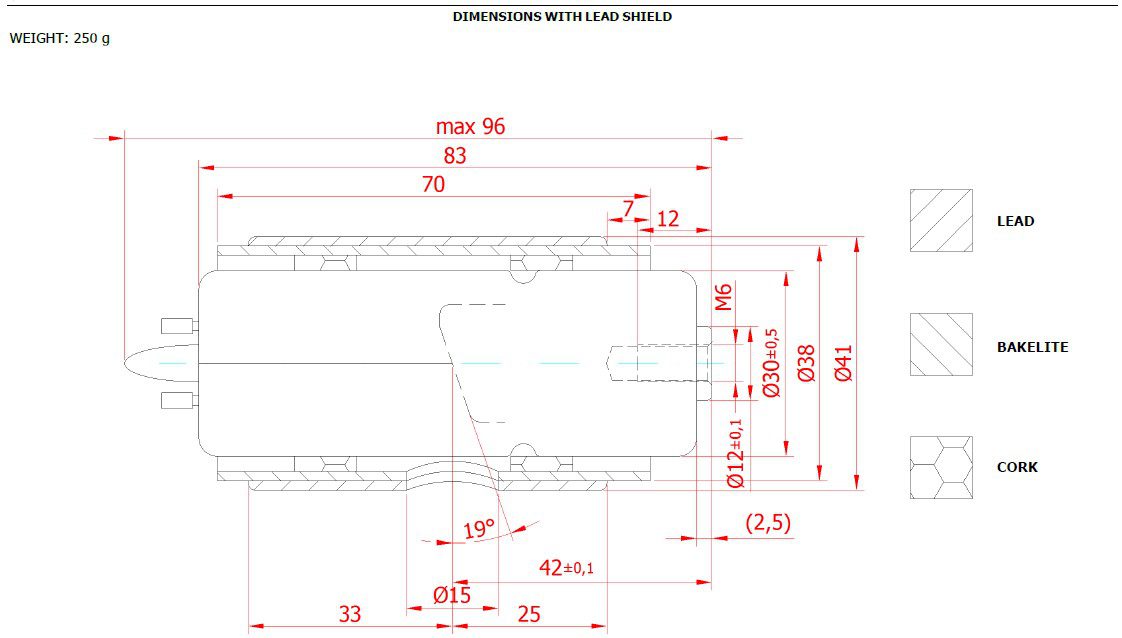

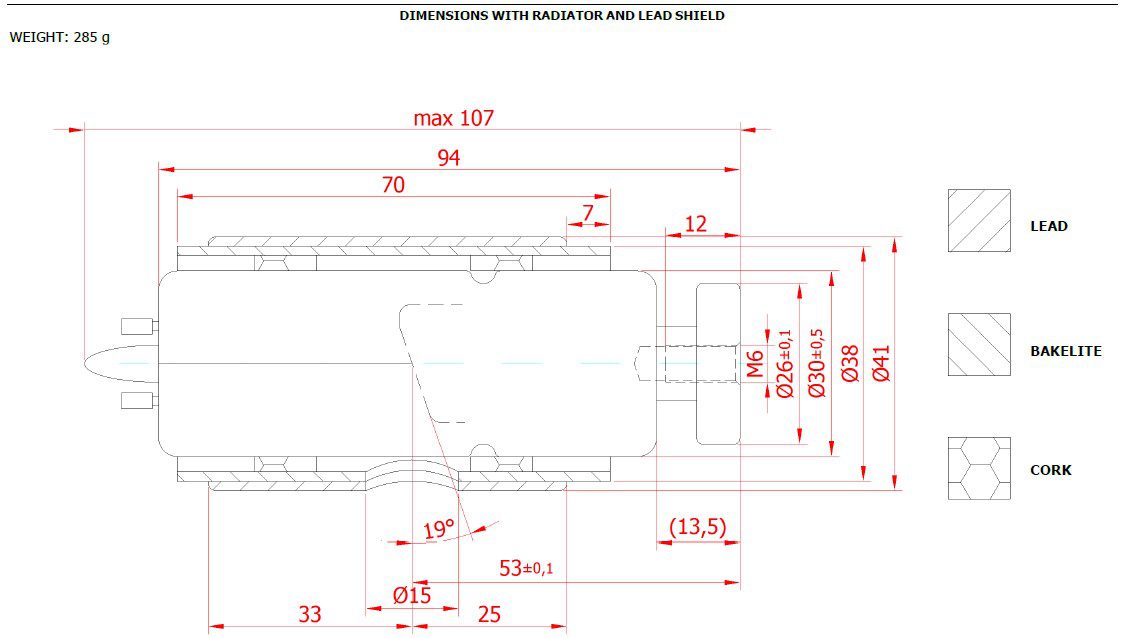

Dimensions and connections

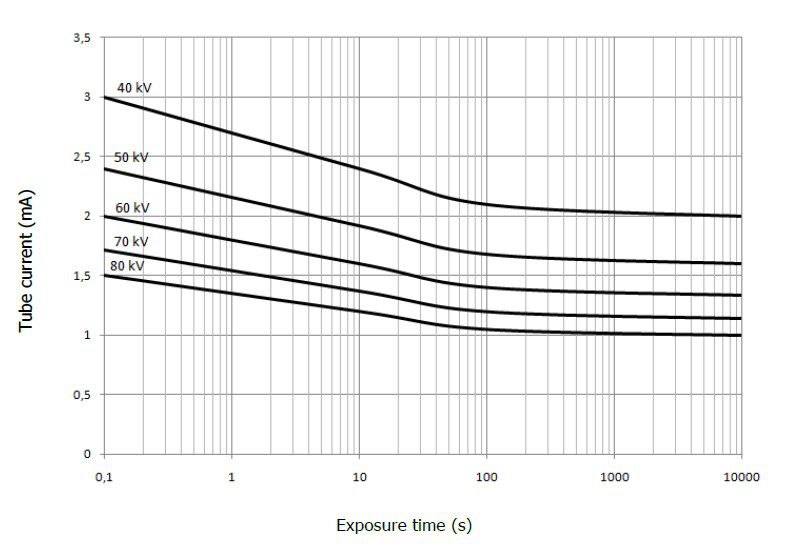

Maximum DC load diagrams

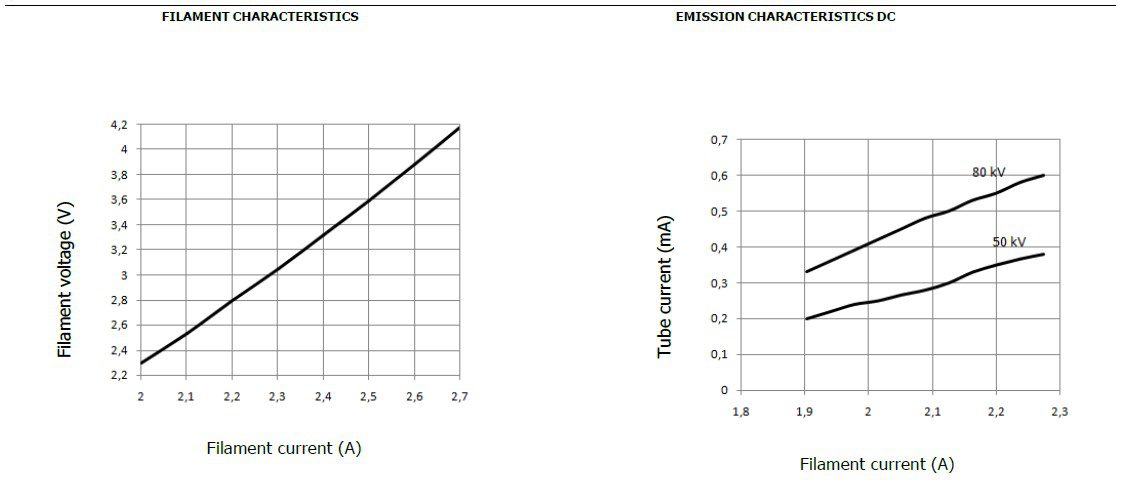

Filament and emission characteristics
