OX/80-0.5

Description and datas

kV: 80Large Focal Spot: 0.5Target Angle: 13
Anode heat Capacity: 10000Nominal Input Power large: 700Max Dissipation Rate: 250
Max Diameter: 30Max Length: 85Filament Current (Large): 2.8
Filament Voltage (Large): 2.5
kV: 80Large Focal Spot: 0.5
Target Angle: 13Anode heat Capacity: 10000
Nominal Input Power large: 700Max Dissipation Rate: 250
Max Diameter: 30Max Length: 85
Filament Current (Large): 2.8Filament Voltage (Large): 2.5
kV: 80
Large Focal Spot: 0.5
Target Angle: 13
Anode heat Capacity: 10000
Nominal Input Power large: 700
Max Dissipation Rate: 250
Max Diameter: 30
Max Length: 85
Filament Current (Large): 2.8
Filament Voltage (Large): 2.5
OX 80-0.5 rev.B EngOX 80-0.5 rev.B FraOX 80-0.5 rev.B Ita

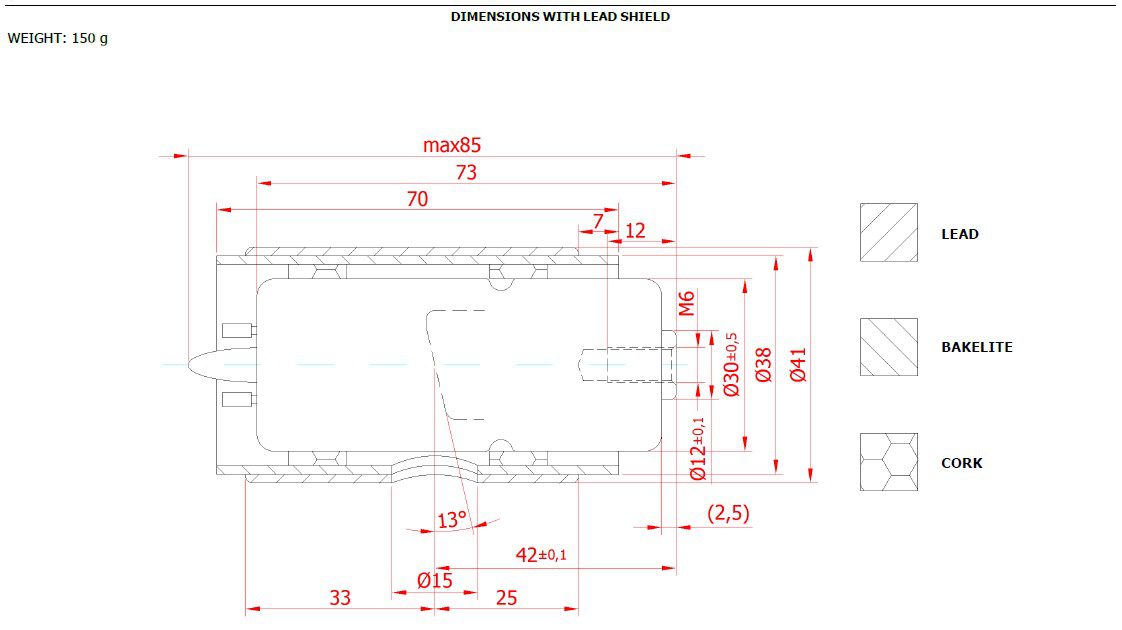

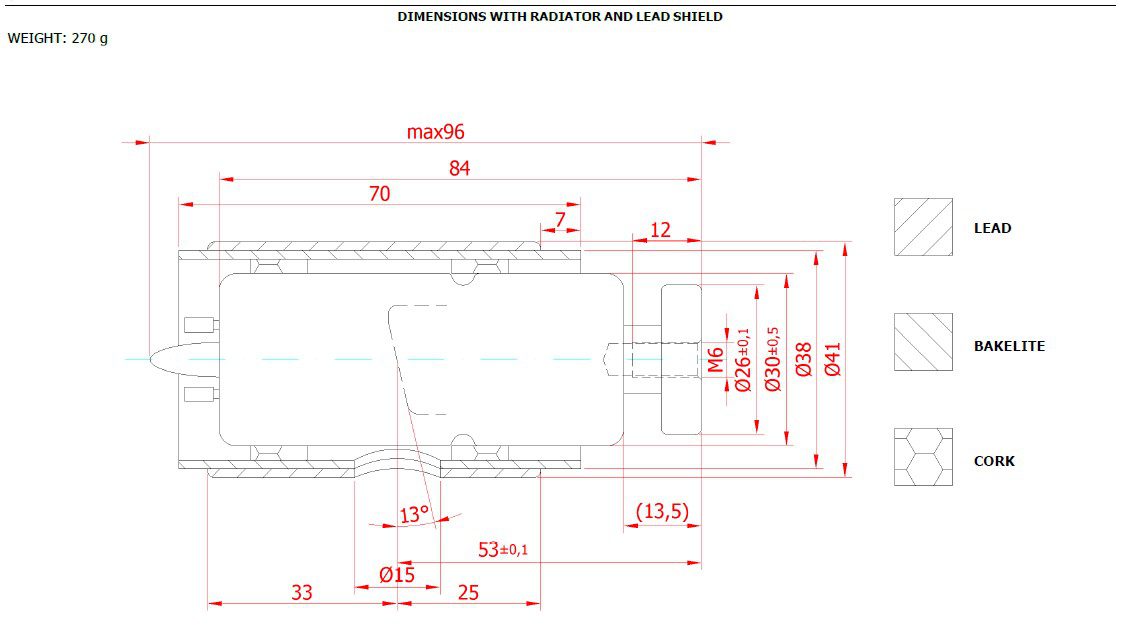

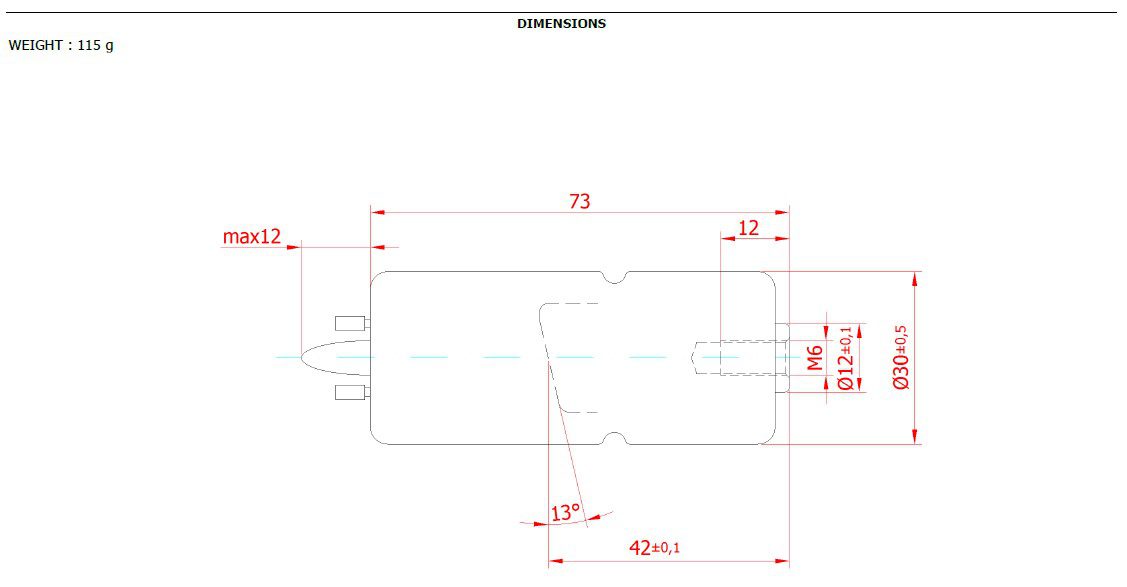

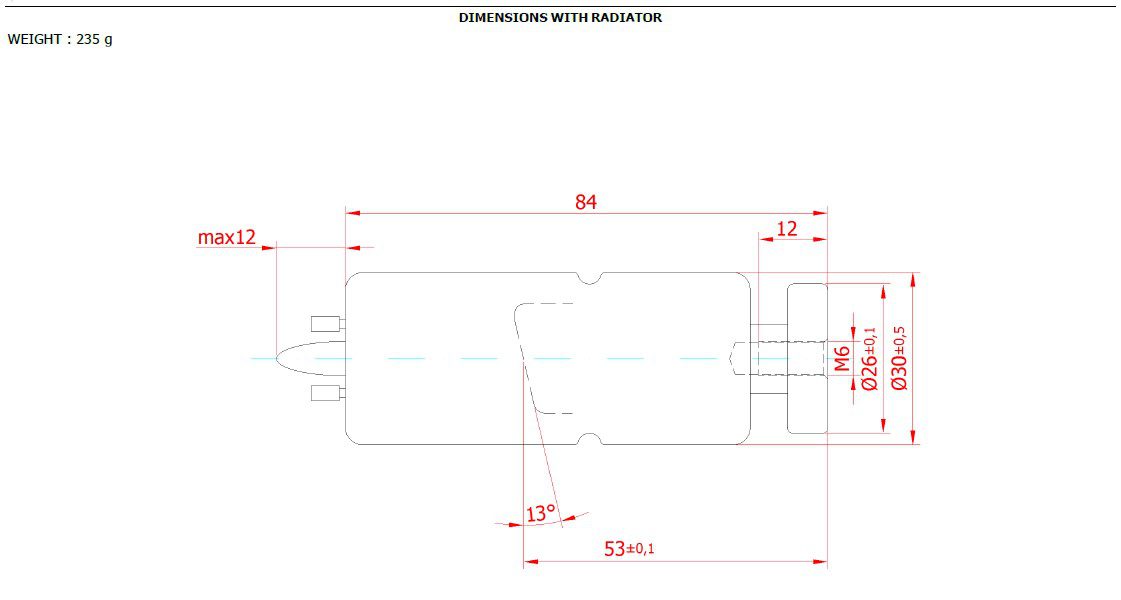

Dimensions and connections

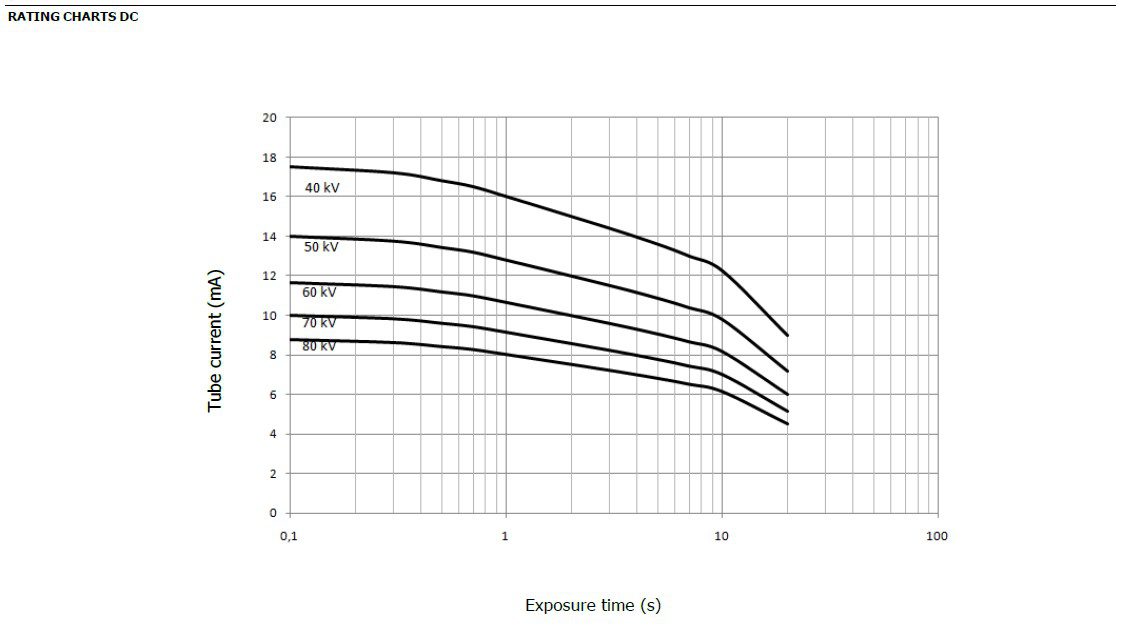

Maximum DC load diagrams

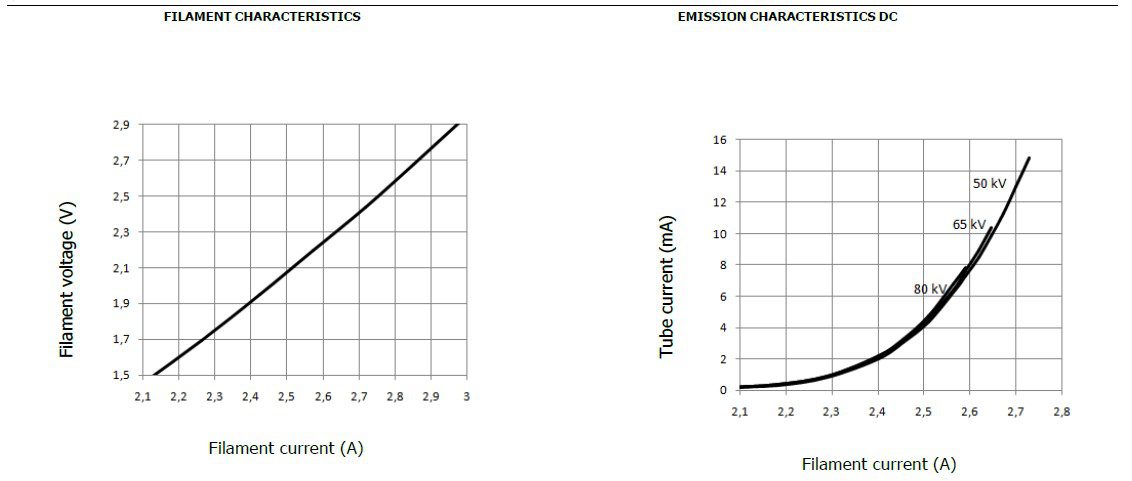

Filament and emission characteristics
