OX/80-0.8

Description and datas

kV: 90Large Focal Spot: 0.8Target Angle: 16
Anode heat Capacity: 8000Nominal Input Power large: 1280Max Dissipation Rate: 110
Max Diameter: 30Max Length: 91Filament Current (Large): 2.3
Filament Voltage (Large): 3.3
kV: 90Large Focal Spot: 0.8
Target Angle: 16Anode heat Capacity: 8000
Nominal Input Power large: 1280Max Dissipation Rate: 110
Max Diameter: 30Max Length: 91
Filament Current (Large): 2.3Filament Voltage (Large): 3.3
kV: 90
Large Focal Spot: 0.8
Target Angle: 16
Anode heat Capacity: 8000
Nominal Input Power large: 1280
Max Dissipation Rate: 110
Max Diameter: 30
Max Length: 91
Filament Current (Large): 2.3
Filament Voltage (Large): 3.3
OX 80-0.8 rev.H EngOX 80-0.8 rev.H FraOX 80-0.8 rev.H Ita

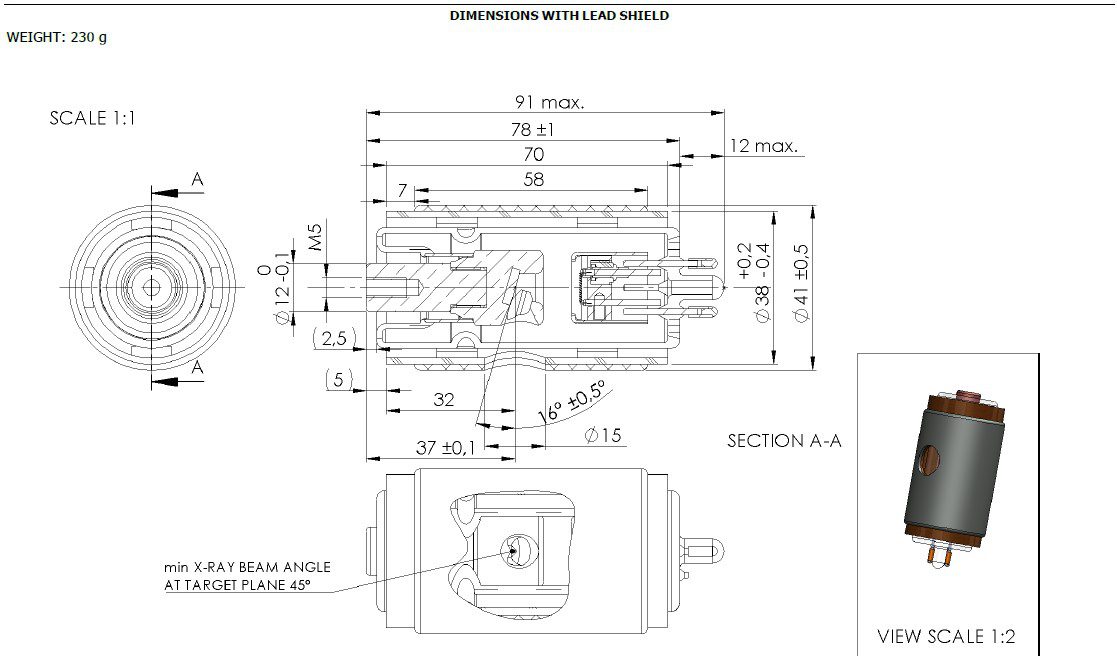

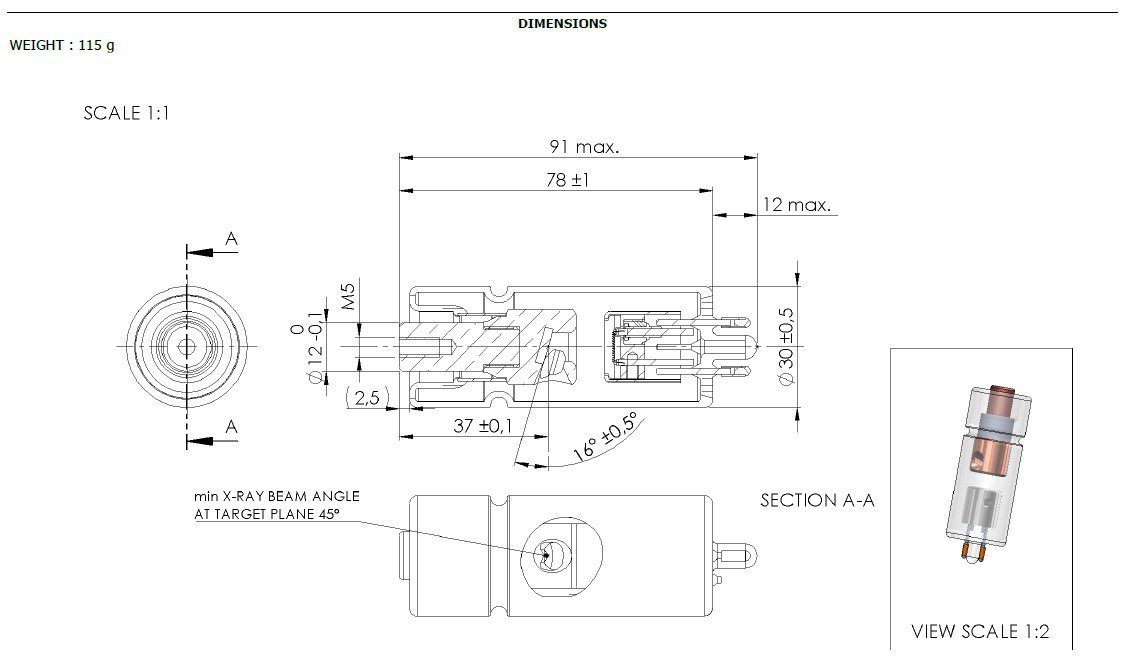

Dimensions and connections

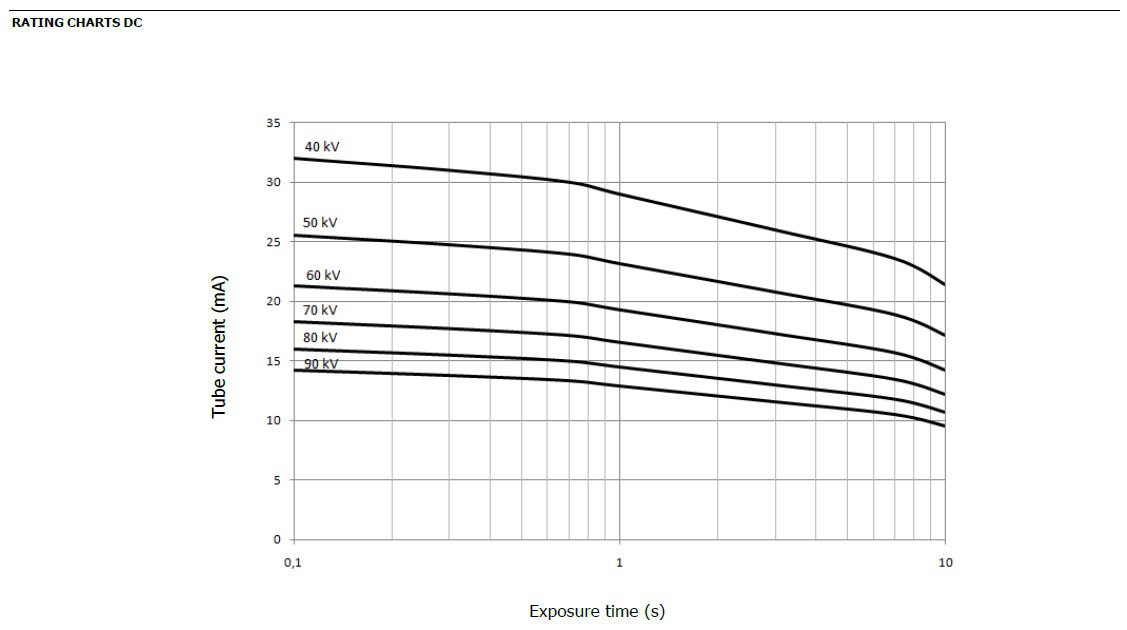

Maximum DC load diagrams

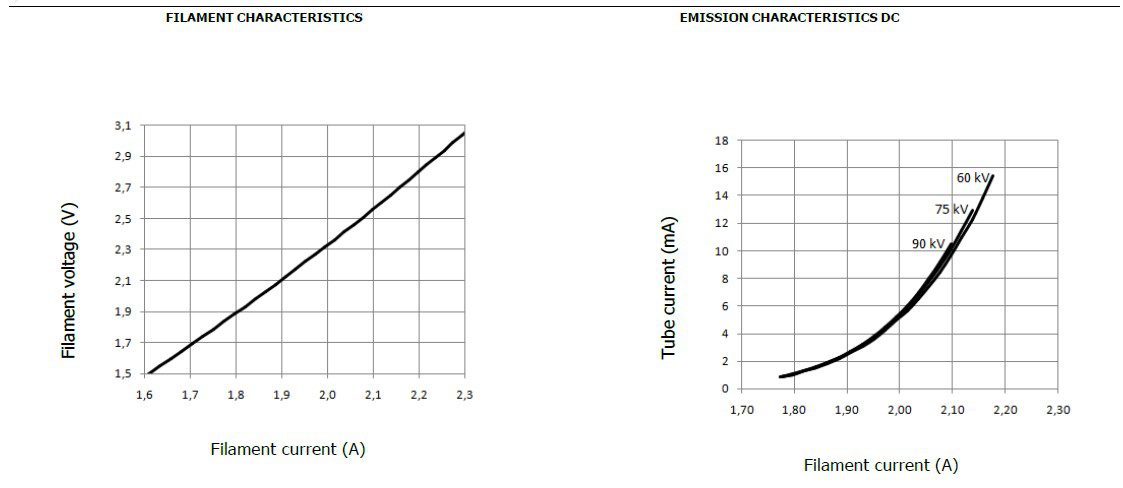

Filament and emission characteristics
