OX/90

Description and datas

kV: 90Large Focal Spot: 0.5Target Angle: 19
Anode heat Capacity: 10000Nominal Input Power large: 810Max Dissipation Rate: 150
Max Diameter: 30Max Length: 101Filament Current (Large): 2.1
Filament Voltage (Large): 3.5
kV: 90Large Focal Spot: 0.5
Target Angle: 19Anode heat Capacity: 10000
Nominal Input Power large: 810Max Dissipation Rate: 150
Max Diameter: 30Max Length: 101
Filament Current (Large): 2.1Filament Voltage (Large): 3.5
kV: 90
Large Focal Spot: 0.5
Target Angle: 19
Anode heat Capacity: 10000
Nominal Input Power large: 810
Max Dissipation Rate: 150
Max Diameter: 30
Max Length: 101
Filament Current (Large): 2.1
Filament Voltage (Large): 3.5
OX 90 EnglishOX 90 FrenchOX 90 Italiano

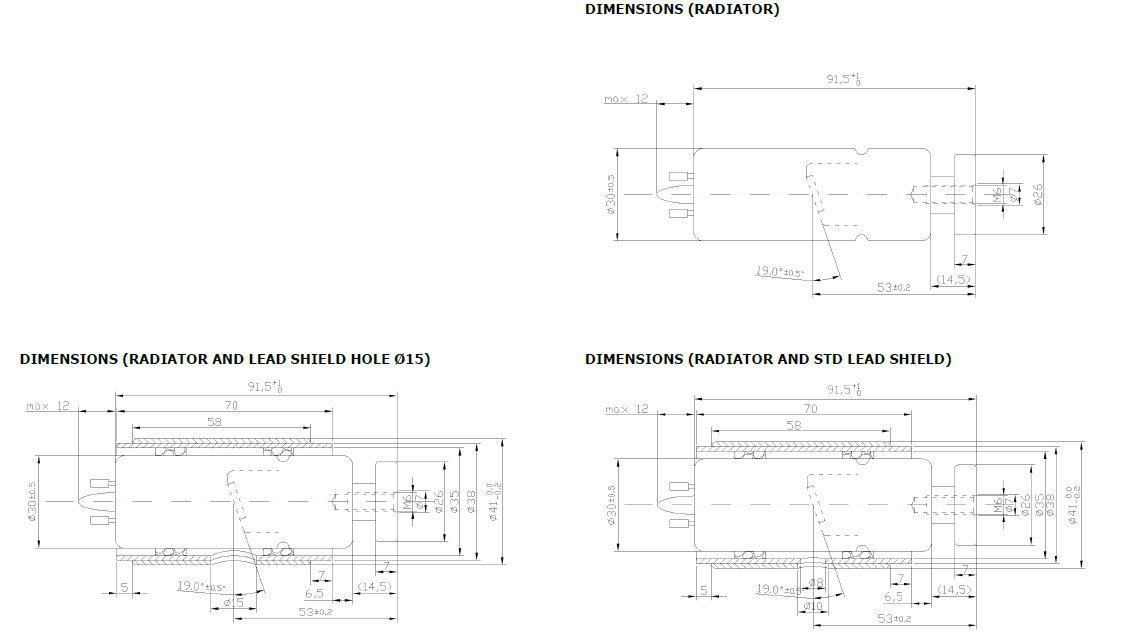

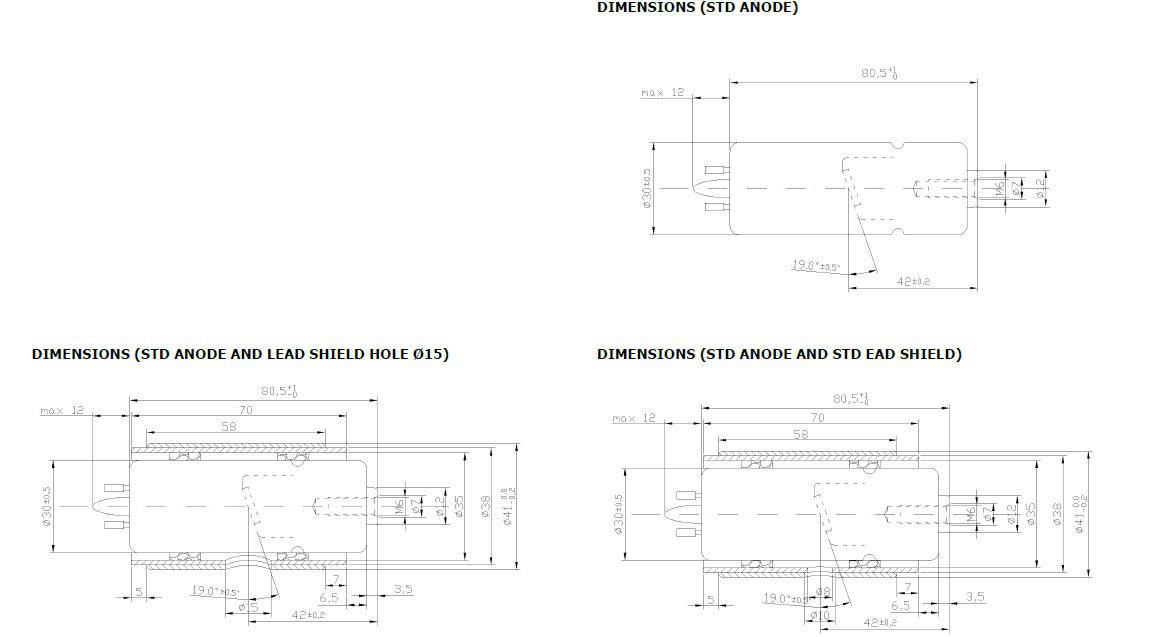

Dimensions and connections

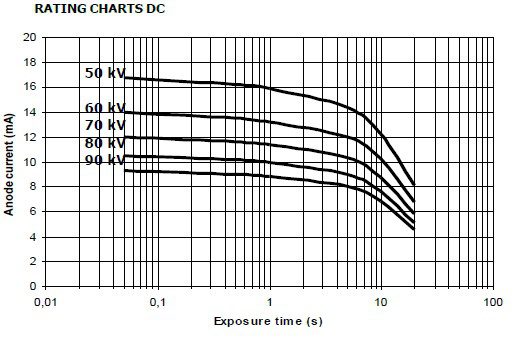

Maximum DC load diagrams

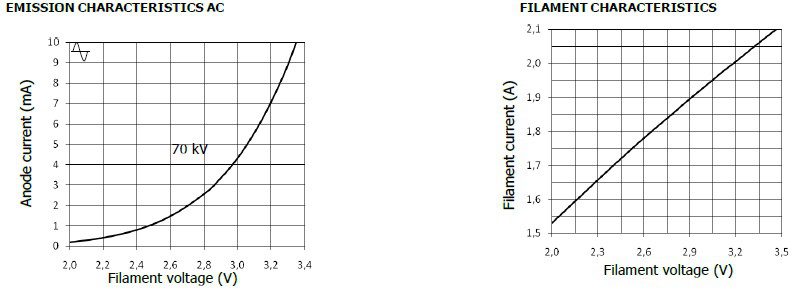

Filament and emission characteristics
